Artikel-Nr.: 110900
Marke: Brady

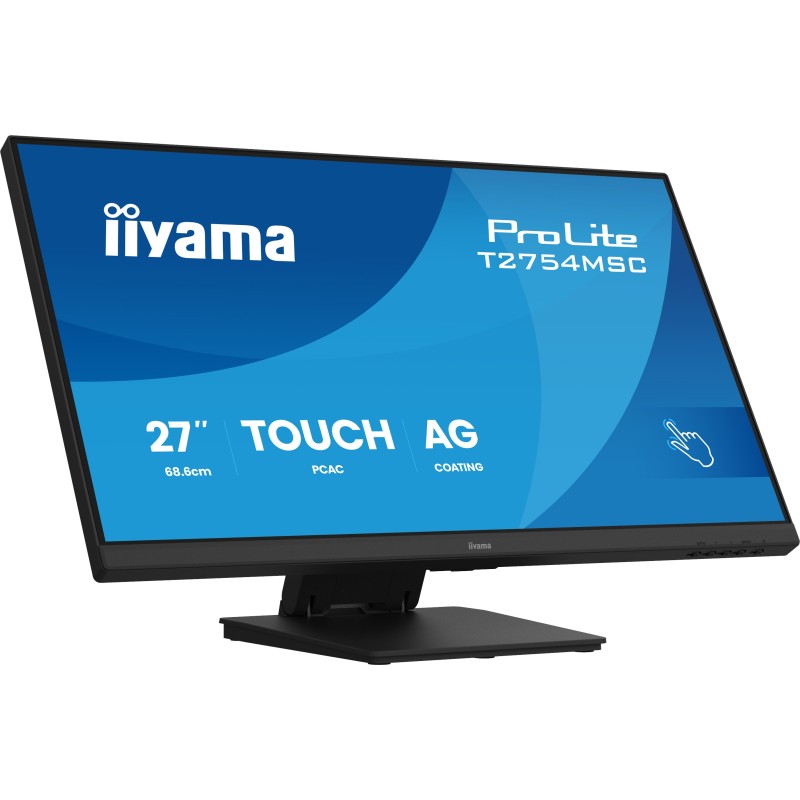

iiyama ProLite T2754MSC-B2AG, 68,6 cm (27"), 1920 x 1080 Pixel, Full HD, LED, 4 ms, Schwarz
| Bildschirmdiagonale | 68,6 cm (27") |
| Display-Auflösung | 1920 x 1080 Pixel |
| Natives Seitenverhältnis | 16:9 |
| Bildschirmtechnologie | LED |
| Touchscreen | Ja |
| HD-Typ | Full HD |
| Panel-Typ | IPS |
| Reaktionszeit | 4 ms |
| Bildschirmform | Flach |
| Kontrastverhältnis | 1000:1 |
| Maximale Bildwiederholrate | 83 Hz |
| Anzahl der Farben des Displays | 16,7 Millionen Farben |
| Art des Touchscreens | Multi-Nutzer |
| Touchscreen Technologie | Projizierts Kapazitivsystem |
| Anzahl der gleichzeitigen Touchpoints | 10 |
| Helligkeit (typisch) | 300 cd/m² |
| Helligkeit | 300 cd/m² |
| Messungsart der Reaktionszeit | GTG (Gray to Gray) |
| Bildwinkel, horizontal | 178° |
| Bildwinkel, vertikal | 178° |
| Pixel Abstand | 0,311 x 0,311 mm |
| Horizontaler Scanbereich | 30 - 83 kHz |
| Sichtbare Größe (horizontal) | 59,8 cm |
| Sichtbare Größe (vertikal) | 33,6 cm |
| Bildschirmdiagonale (cm) | 68,6 cm |
| Farbtiefe | 8 Bit |
| Flimmerfreie Technologie | Ja |
| Low-Blue-Light-Technologie | Ja |
| Handflächenabweisung | Ja |
| Eingebaute Lautsprecher | Ja |
| Integrierte Kamera | Nein |
| Anzahl der Lautsprecher | 2 |
| RMS-Leistung | 4 W |
| Produktfarbe | Schwarz |
| Vorderer Rahmen | Schwarz |
| Integrierter USB-Hub | Ja |
| HDMI | Ja |
| USB-Hub-Version | 3.2 Gen 1 (3.1 Gen 1) |
| Anzahl der Downstream-Ports | 2 |
| USB-Touch-Anschluss | Ja |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDCP | Ja |
| VESA-Halterung | Ja |
| Höhenverstellung | Ja |
| Panel-Montage-Schnittstelle | 100 x 100 mm |
| Verbessertes Kabelmanagement | Ja |
| Einstellbare Höhe (max.) | 13,8 cm |
| Neigungsverstellung | Ja |
| On-Screen-Display (OSD) | Ja |
| Menüsprachen | Deutsch, Englisch, Spanisch, Französisch, Italienisch, Japanisch, Niederländisch, Polnisch, Portugiesisch, Russisch |
| Energieeffizienzklasse (SDR) | E |
| Energieeffizienzklasse (HDR) | Nicht verfügbar |
| Energieverbrauch (SDR) pro 1.000 Stunden | 21 kWh |
| Stromverbrauch (Standardbetrieb) | 27 W |
| Stromverbrauch (Standby) | 0,5 W |
| Stromverbrauch (aus) | 0,3 W |
| Netzteil Ausgangsspannung | 19 V |
| Netzteiltyp | Extern |
| Gerätebreite (inkl. Standfuß) | 612 mm |
| Gerätetiefe (inkl. Standfuß) | 241 mm |
| Gerätehöhe (inkl. Standfuß) | 387 mm |
| Gewicht (inklusive Standfuß) | 6,6 kg |
| Verpackungsbreite | 688 mm |
| Verpackungstiefe | 148 mm |
| Verpackungshöhe | 477 mm |
| Paketgewicht | 9,2 kg |
| USB Kabellänge | 1,8 m |
| Mitgelieferte Kabel | AC, USB, HDMI |
| Schnellstartübersicht | Ja |
| HDMI-Kabellänge | 1,8 m |
| Stromkabellänge | 1,8 m |
| Nachhaltigkeitszertifikate | ErP |
| Kompatible Betriebssysteme | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positionelle Genauigkeit | 2 mm |
| Verpackungsinhalt | Screwdriver |
| Aktiver Displaybereich (B x H) | 597,89 x 336,31 mm |
| Anzahl der USB-Anschlüsse | 2 |
| Gewicht | 6,6 kg |
| Höhe | 387 mm |
| Breite | 612 mm |
| Tiefe | 241 mm |
| Konformitätsbescheinigungen | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 50000 h |
| Benutzerkontrollen | luminance (contrast, brightness, i-Style Color, adv. contrast, eco, auto off), Image settings (pixel clock, phase, horizontal position, vertical position, aspect ratio), Color settings (gamma, 6- axis, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language), Extra (reset, DDC/CI, signal select, OverDrive, opening logo, information) |
| Berührungsmethode | finger, glove (latex), capacitive stylus |
| Bedienfeld | Power, menu, + / volume, - eco, auto / exit / signal select |
Technische Daten
