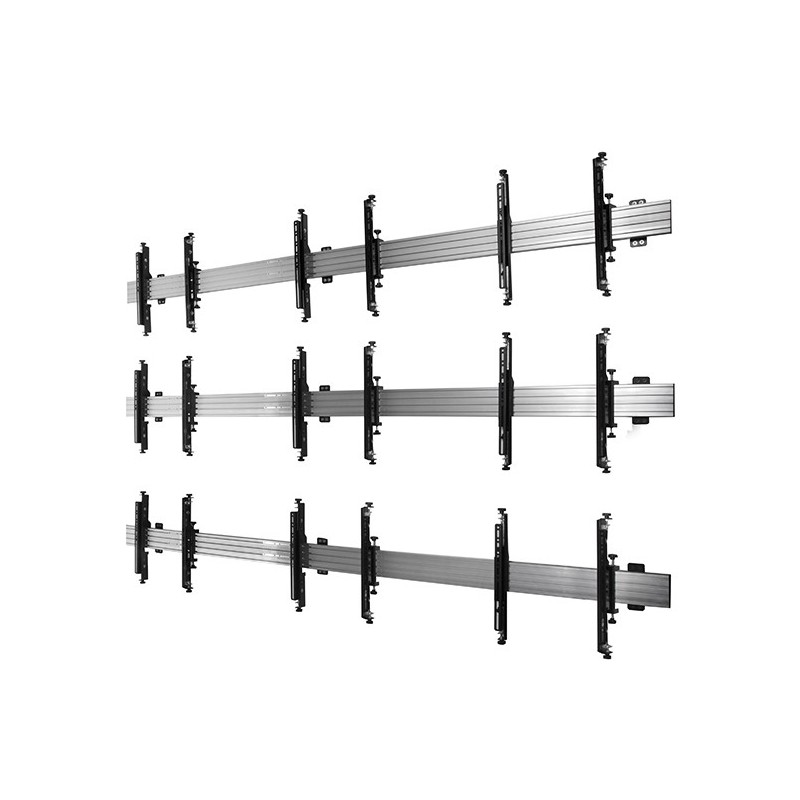

BT8340-WL3X3-55-M

The BT8340 is a modular wall mounting system for video wall installations of any size. The BT8340 can mount screens in landscape or portrait orientations - perfect for digital signage that needs to stand out. As part of the System X range, the BT8340 can be used in thousands of different configurations and is ordered according to your requirements using B-Tech's online configuration tool.

- Universal design suitable for all sized screens up to 50kg (per screen)
- Can be used in an endless variety of configurations
- High-end aesthetic quality
- Tool-less micro-adjustments at 8 points for seamless display alignment
- Suitable for landscape or portrait mounting
- Can be used to create eye-catching, mosaic style installs
- (please contact your sales representative for more details)
- Multiple rail lengths available (rails can also be joined to create larger installs)
- Safety screws help prevent unauthorised removal of screens

Total Extrusion Horizontal Length (mm): 3500
Max Screen Weight Single (kg): 40
Total Screens Weight Max (kg): 360
Max Screen VESA: 600
Interface function (recommended for your screen size): MAF
