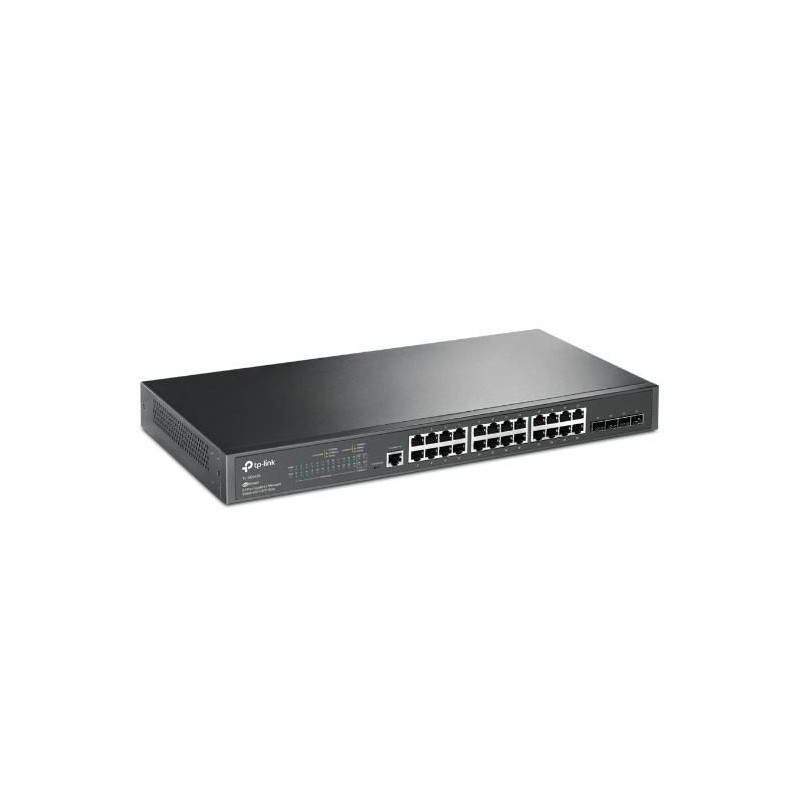

TL-SG3428
19.22W, 24x 10/100/1000 Mbps RJ45 Ports, 4x Gigabit SFP Slots, 1x RJ45 Console Port, 1x Micro-USB Console Port, 56Gbps, 41.66Mbps, 8K MAC, 9KB Jumbo Frame, Fanless
Beschreibung
Convenient Gigabit Switch for a Complete Omada Network
JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. Also, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Abundant L2 and L2+ Features
A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Enterprise Level Management Features
Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events.
JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. Also, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Abundant L2 and L2+ Features
A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Enterprise Level Management Features
Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events.
- Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Spezifikationen
Data transmission
| Anzahl der statischen Routen | 48 |
| Jumbo-Rahmen | 9000 |
| MAC-Adresstabelle | 16000 Eintragungen |
| Paketpufferspeicher | 12 MB |
| Schaltleistung | 56 Gbit/s |
| Speichern und weiterleiten | Yes |
| Statische Route | Yes |
| Unterstützung für Jumbo-Frames | Yes |
| Weiterleitungstarif | 41.66 Mpps |
Design
| Anzahl Fans | 0 Lüfter |
| Formfaktor | 1U |
| Gestellmontage | Yes |
| LED-Anzeigen | Yes |
| Produktfarbe | Black |
Management features
| ARP-Inspektion | Yes |
| Cloud-verwaltet | Yes |
| Ebene wechseln | L2/L3 |
| MIB-Unterstützung | Yes |
| Quality of Service (QoS)-Unterstützung | Yes |
| Schaltertyp | Managed |
| Standorteinstellungen konfigurieren (CLI) | Yes |
| Systemereignisprotokoll | Yes |
| Webbasierte Verwaltung | Yes |
Multicast features
| Multicast Listener Discovery (MLD)-Snooping | Y |
| Multicast-Unterstützung | Yes |
Network
| 10G-Unterstützung | No |
| Active-Link-Erkennung | Yes |
| Anzahl der VLANs | 4000 |
| Broadcast-Sturmkontrolle | Yes |
| Ethernet-LAN-Datenraten | 10/100/1000 Mbit/s |
| Head-of-Line (HOL)-Blockierung | Yes |
| IP-Routing | Yes |
| IPv4-Routen | 48 |
| IPv6-Routen | 48 |
| Link-Aggregation | Yes |
| Netzwerkstandards | IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z |
| Portspiegelung | Yes |
| Ratenbegrenzung | Yes |
| Richtlinienbasiertes Routing | Yes |
| Spanning-Tree-Protokoll | Yes |
| Unterstützung der Flusskontrolle | Yes |
| Virtuelle LAN-Funktionen | Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN |
| VLAN-Unterstützung | Yes |
Operational conditions
| Betriebstemperatur (TT) | 0 - 45 °C |
| Lagertemperatur (TT) | -40 - 70 °C |
| Relative Luftfeuchtigkeit bei Lagerung (HH) | 5 - 90 % |
| Relative Luftfeuchtigkeit im Betrieb (HH) | 10 - 90 % |
| Wärmeableitung | 65.58 BTU/h |
Packaging content
| Kabel enthalten | LAN (RJ-45) |
| Schnellstartanleitung | Yes |
Ports & interfaces
| Anzahl der installierten SFP-Module | 0 |
| Anzahl der installierten SFP+-Module | 0 |
| Anzahl der SFP-Modulsteckplätze | 4 |
| Anzahl Gigabit Ethernet (Kupfer) Ports | 24 |
| Grundlegende Anzahl von RJ-45-Ethernet-Ports | 24 |
| Grundlegender Switching-RJ-45-Ethernet-Porttyp | Gigabit Ethernet (10/100/1000) |
| Konsolenport | RJ-45/Micro-USB |
Power
| AC-Eingangsfrequenz | 50 - 60 Hz |
| AC-Eingangsspannung | 100 - 240 V |
| Energiequelle | AC |
| Inklusive Netzteil | No |
| Stromverbrauch (max.) | 19.22 W |
Power over Ethernet (PoE)
| Stromversorgung über Ethernet (PoE) | No |
Protocols
| GARP VLAN-Registrierungsprotokoll (GVRP) | Yes |
| IPv4- und IPv6-Funktionen | IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert |
| Verwaltungsprotokolle | SNMPv1/v2c/v3, SNTP |
Security
| Authentifizierung | MAC-based authentication/Port-based authentication |
| Authentifizierungsart | AAA/RADIUS/TACACS+ |
| BPDU-Filterung/Schutz | Yes |
| DHCP-Funktionen | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping |
| IGMP-Proxy | Yes |
| IGMP-Schnüffelei | Yes |
| IP-MAC-Port-Bindung | Yes |
| MAC-Adressfilterung | Yes |
| Schleifenschutz | Yes |
| SSH/SSL-Unterstützung | Yes |
| Statische Hafensicherheit | Yes |
| Zugriffskontrollliste (ACL) | Yes |
Vendor information
| Brand Name | Omada |
| Warranty | 1 |
Artikeldetails
Neu
Technische Daten
- Systemereignisprotokoll
- Yes
- Virtuelle LAN-Funktionen
- Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
- Broadcast-Sturmkontrolle
- Yes
- Anzahl der VLANs
- 4000
- DHCP-Funktionen
- DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
- Wärmeableitung
- 65.58 BTU/h
- ARP-Inspektion
- Yes
- BPDU-Filterung/Schutz
- Yes
- Authentifizierung
- MAC-based authentication/Port-based authentication
- Anzahl der statischen Routen
- 48
- IP-Routing
- Yes
- Statische Route
- Yes
- Cloud-verwaltet
- Yes
- Richtlinienbasiertes Routing
- Yes
- IPv4-Routen
- 48
- IPv6-Routen
- 48
- IGMP-Proxy
- Yes
- Jumbo-Rahmen
- 9000
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Anzahl Fans
- 0 Lüfter
- Gestellmontage
- Yes
- Ebene wechseln
- L2/L3
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Anzahl Gigabit Ethernet (Kupfer) Ports
- 24
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Konsolenport
- RJ-45/Micro-USB
- Stromversorgung über Ethernet (PoE)
- No
- Verwaltungsprotokolle
- SNMPv1/v2c/v3, SNTP
- Authentifizierungsart
- AAA/RADIUS/TACACS+
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- MAC-Adressfilterung
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- No
- Schnellstartanleitung
- Yes
- Paketpufferspeicher
- 12 MB
- Speichern und weiterleiten
- Yes
- MIB-Unterstützung
- Yes
- Standorteinstellungen konfigurieren (CLI)
- Yes
- Portspiegelung
- Yes
- Ratenbegrenzung
- Yes
- SSH/SSL-Unterstützung
- Yes
- Multicast Listener Discovery (MLD)-Snooping
- Y
- Weiterleitungstarif
- 41.66 Mpps
- Schleifenschutz
- Yes
- Schaltleistung
- 56 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- Kabel enthalten
- LAN (RJ-45)
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (max.)
- 19.22 W
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- Energiequelle
- AC
- Brand Name
- Omada
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 45 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Produktfarbe
- Black
- Anzahl der SFP-Modulsteckplätze
- 4
- Statische Hafensicherheit
- Yes
- Head-of-Line (HOL)-Blockierung
- Yes
- IP-MAC-Port-Bindung
- Yes
- Active-Link-Erkennung
- Yes
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
- IPv4- und IPv6-Funktionen
- IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
- GARP VLAN-Registrierungsprotokoll (GVRP)
- Yes
Besondere Bestellnummern
- isbn
- 978-1-23456-789-0
- upc
- 845973010140
- ean13
- 6935364010720
- Hersteller-Teilenummer (MPN)
- TL-SG3428
16 andere Artikel in der gleichen Kategorie:
Artikel-Nr.: 432670-001, 405477-061, MMH9678_8GB, 403528
408854-B21-RFB
8GB Reg PC2-5300 2x4GB Kit **** HP 8.0GB registered PC2-5300 memory kit - Includes two 4.0GB modules
41,1 CHF
inkl. MwSt.
38,0 CHF
zzgl. MwSt.
Wird für Sie bestellt
Artikel-Nr.: 963111
Marke: Digitus
DA-73100-1
Active USB 2.0 Repeater/Extension Cable, 10 m A/M to A/F, black A/M to A/F
24,4 CHF
inkl. MwSt.
22,6 CHF
zzgl. MwSt.
Auf Lager
19,2 CHF
inkl. MwSt.
17,8 CHF
zzgl. MwSt.
Auf Lager
11,5 CHF
inkl. MwSt.
10,6 CHF
zzgl. MwSt.
Wird für Sie bestellt
12,1 CHF
inkl. MwSt.
11,2 CHF
zzgl. MwSt.
Wird für Sie bestellt
Artikel-Nr.: 835517
910-005989
MX Anywhere 3 Compact Performance MX Anywhere 3 Compact Performance, Right-hand, RF Wireless+Bluetooth, 4000 DPI, Grey, White
214,6 CHF
inkl. MwSt.
198,5 CHF
zzgl. MwSt.
Wird für Sie bestellt
120,5 CHF
inkl. MwSt.
111,5 CHF
zzgl. MwSt.
Auf Lager
88,8 CHF
inkl. MwSt.
82,1 CHF
zzgl. MwSt.
Wird für Sie bestellt
92,5 CHF
inkl. MwSt.
85,6 CHF
zzgl. MwSt.
Wird für Sie bestellt
83,2 CHF
inkl. MwSt.
77,0 CHF
zzgl. MwSt.
Wird für Sie bestellt
83,2 CHF
inkl. MwSt.
77,0 CHF
zzgl. MwSt.
Wird für Sie bestellt
80,3 CHF
inkl. MwSt.
74,3 CHF
zzgl. MwSt.
Wird für Sie bestellt
80,3 CHF
inkl. MwSt.
74,3 CHF
zzgl. MwSt.
Wird für Sie bestellt
122,7 CHF
inkl. MwSt.
113,5 CHF
zzgl. MwSt.
Wird für Sie bestellt
66,6 CHF
inkl. MwSt.
61,6 CHF
zzgl. MwSt.
Wird für Sie bestellt
101,1 CHF
inkl. MwSt.
93,5 CHF
zzgl. MwSt.
Wird für Sie bestellt
Vielleicht gefällt Ihnen auch
19.22W, 24x 10/100/1000 Mbps RJ45 Ports, 4x Gigabit SFP Slots, 1x RJ45 Console Port, 1x Micro-USB Console Port, 56Gbps, 41.66Mbps, 8K MAC, 9KB Jumbo Frame, Fanless
