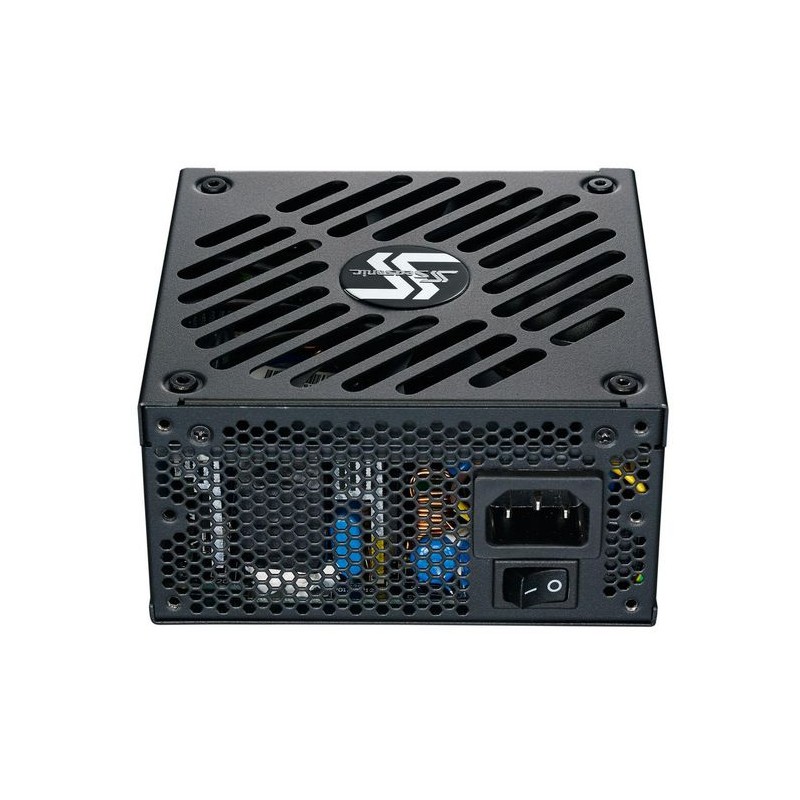

FOCUS-SGX-500
80PLUS Gold, Intel SFX 12 V / ATX 12 V, 100-240V, 50-60Hz, 6-3A, 500W, 125 x 125 x 63.5 mm
Beschreibung
FOCUS SGX
The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
80 PLUS® GOLD
The FOCUS PLUS Gold Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
COMPACT SFX-L SIZE
The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.
SMART AND SILENT FAN CONTROL [S3FC]
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
80 PLUS® GOLD
The FOCUS PLUS Gold Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
COMPACT SFX-L SIZE
The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.
SMART AND SILENT FAN CONTROL [S3FC]
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
- Reduced noise without increase in temperature
- Extended fan life due to the reduced number of fan rotations
- Optimized heat dissipation at all times
- Unsurpassed silent performance in Fanless Mode
Spezifikationen
Design
| Ein / Aus Schalter | Yes |
| Lüfterdurchmesser | 12 cm |
| Produktfarbe | Black |
Operational conditions
| Betriebstemperatur (TT) | 0 - 50 °C |
Packaging content
| Kabel enthalten | AC |
Packaging data
| Handbuch | Yes |
Performance
| 80 PLUS-Zertifizierung | 80 PLUS Gold |
| Lagertechnik | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Netzteil-Formfaktor (PSU) | SFX |
| Sicherheit | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Zertifizierung | WEEE, ErP Lot 6, REACH |
| Zweck | PC |
Ports & interfaces
| Anzahl der SATA-Stromanschlüsse | 3 |
| CPU-Stromanschluss (4+4-polig) | Yes |
| Länge des CPU-Stromkabels | 40 cm |
| Länge des Motherboard-Stromkabels | 35 cm |
| Länge des PCI-Express-Stromkabels | 75 cm |
| Länge des Peripherie-Stromkabels (Molex) | 70 cm |
| Länge des SATA-Stromkabels | 60 cm |
| Motherboard-Stromanschluss | 20+4 pin ATX |
| PCI-Express-Stromanschlüsse (8-polig) | 1 |
| Peripherie (Molex) Stromanschlüsse (4-polig) | 3 |
| Verkabelungstyp | Fully-Modular |
Power
| AC-Eingangsfrequenz | 50 - 60 Hz |
| AC-Eingangsspannung | 100 - 240 V |
| Eingangsstrom | 6 - 3 A |
| Kombinierte Leistung (-12 V) | 3.6 W |
| Kombinierte Leistung (+3,3 V) | 100 W |
| Kombinierte Leistung (+5V) | 100 W |
| Kombinierte Leistung (+5Vsb) | 15 W |
| Kombinierte Stromversorgung (+12 V) | 492 W |
| Leistungsschutzfunktionen | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Max. Ausgangsstrom (+12 V) | 41 A |
| Max. Ausgangsstrom (+3,3 V) | 20 A |
| Max. Ausgangsstrom (+5 V) | 20 A |
| Max. Ausgangsstrom (+5 Vsb) | 3 A |
| Maximaler Ausgangsstrom (-12 V) | 0.3 A |
| Totale Kraft | 500 W |
Technical details
| Compliance certificates | RoHS |
| Nachhaltigkeitszertifikate | ENERGY STAR |
Vendor information
| Brand Name | Seasonic |
| Warranty | 1 |
Artikeldetails
2025-12-05
Neu
Technische Daten
- Sicherheit
- cTUVus, TUV, CB, CCC, BSMI, EAC, CE
- Ein / Aus Schalter
- Yes
- Mean time between failures (MTBF)
- 100000 h
- Compliance certificates
- RoHS
- Leistungsschutzfunktionen
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Handbuch
- Yes
- Kabel enthalten
- AC
- Zertifizierung
- WEEE, ErP Lot 6, REACH
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Nachhaltigkeitszertifikate
- ENERGY STAR
- Verkabelungstyp
- Fully-Modular
- Totale Kraft
- 500 W
- Eingangsstrom
- 6 - 3 A
- Max. Ausgangsstrom (+12 V)
- 41 A
- Max. Ausgangsstrom (+3,3 V)
- 20 A
- Max. Ausgangsstrom (+5 V)
- 20 A
- Maximaler Ausgangsstrom (-12 V)
- 0.3 A
- Netzteil-Formfaktor (PSU)
- SFX
- Lüfterdurchmesser
- 12 cm
- Motherboard-Stromanschluss
- 20+4 pin ATX
- 80 PLUS-Zertifizierung
- 80 PLUS Gold
- Max. Ausgangsstrom (+5 Vsb)
- 3 A
- Anzahl der SATA-Stromanschlüsse
- 3
- Peripherie (Molex) Stromanschlüsse (4-polig)
- 3
- Brand Name
- Seasonic
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 50 °C
- Zweck
- PC
- Produktfarbe
- Black
- Lagertechnik
- FDB
- CPU-Stromanschluss (4+4-polig)
- Yes
- Länge des CPU-Stromkabels
- 40 cm
- Länge des Motherboard-Stromkabels
- 35 cm
- Länge des Peripherie-Stromkabels (Molex)
- 70 cm
- Länge des SATA-Stromkabels
- 60 cm
- Kombinierte Leistung (-12 V)
- 3.6 W
- Kombinierte Leistung (+3,3 V)
- 100 W
- Kombinierte Leistung (+5V)
- 100 W
- Kombinierte Leistung (+5Vsb)
- 15 W
- Kombinierte Stromversorgung (+12 V)
- 492 W
- Länge des PCI-Express-Stromkabels
- 75 cm
- PCI-Express-Stromanschlüsse (8-polig)
- 1
Besondere Bestellnummern
- isbn
- 978-1-23456-789-0
- Hersteller-Teilenummer (MPN)
- FOCUS-SGX-500
