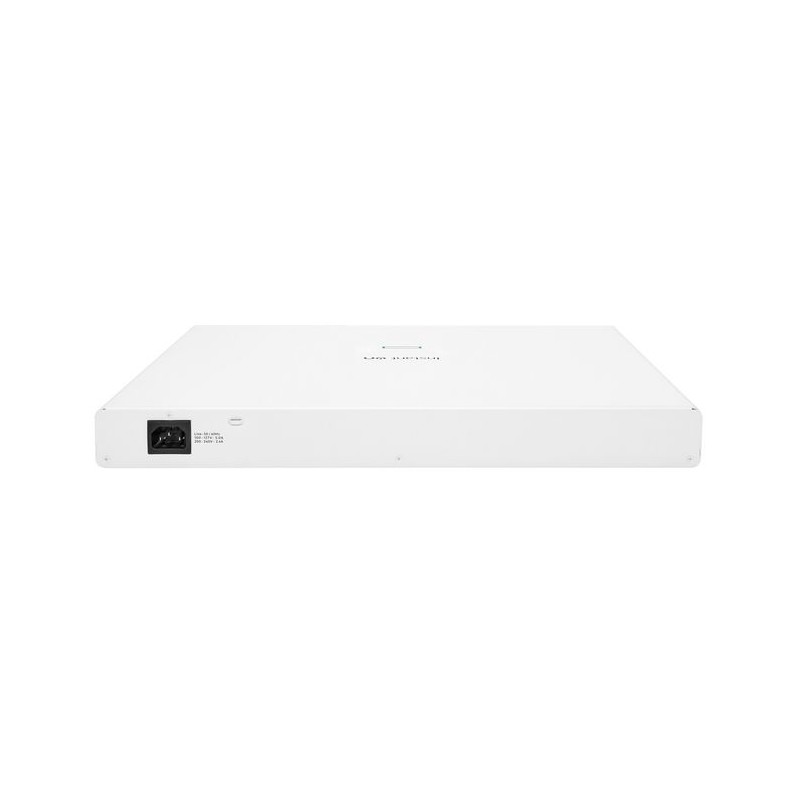

JL807A - 1071302
Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
Beschreibung
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
Features
High-level Gigabit with 10GbE Networking for Advanced Small Businesses
- Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
- Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
- With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.
Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1960 Switch series offers a complete portfolio of choices for increased small business flexibility. It consists of five models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, and a 12 port 10-Gigabit aggregation switch.
- The 24-port and 48-port PoE models come with a power budget of 370W and 600W respectively to support the latest PoE-powered IoT devices.
- The Aruba Instant On 1960 Switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.
- The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
Ease of Use with Cloud-Managed Stacking
- The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.
- The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.
- Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.
Robust Security to Protect Your Network
- The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.
- Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Features
High-level Gigabit with 10GbE Networking for Advanced Small Businesses
- Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
- Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
- With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.
Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1960 Switch series offers a complete portfolio of choices for increased small business flexibility. It consists of five models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, and a 12 port 10-Gigabit aggregation switch.
- The 24-port and 48-port PoE models come with a power budget of 370W and 600W respectively to support the latest PoE-powered IoT devices.
- The Aruba Instant On 1960 Switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.
- The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
Ease of Use with Cloud-Managed Stacking
- The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.
- The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.
- Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.
Robust Security to Protect Your Network
- The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.
- Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Spezifikationen
Data transmission
| Durchsatz | 95 Mpps |
| Jumbo-Rahmen | 9216 |
| Latenz (1 Gbit/s) | 2.2 µs |
| Latenz (10 Gbit/s) | 1.1 µs |
| Latenz (10-100 Mbit/s) | 4.4 µs |
| MAC-Adresstabelle | 16000 Eintragungen |
| Paketpufferspeicher | 1.5 MB |
| Schaltleistung | 128 Gbit/s |
| Unterstützung für Jumbo-Frames | Yes |
Design
| Formfaktor | 1U |
| Gestellmontage | Yes |
| Produktfarbe | White |
| Stapelbar | Yes |
Management features
| ARP-Inspektion | Yes |
| Cloud-verwaltet | Yes |
| Ebene wechseln | L2+ |
| Quality of Service (QoS)-Unterstützung | Yes |
| Schaltertyp | Managed |
| Systemereignisprotokoll | Yes |
| Webbasierte Verwaltung | Yes |
Multicast features
| Multicast-Unterstützung | Yes |
Network
| 10G-Unterstützung | Yes |
| Auto MDI/MDI-X | Yes |
| Automatische Erkennung | Yes |
| Link-Aggregation | Yes |
| Netzwerkstandards | IEEE 802.1ab/IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3z |
| Portspiegelung | Yes |
| Ratenbegrenzung | Yes |
| Spanning-Tree-Protokoll | Yes |
| Unterstützung der Flusskontrolle | Yes |
| VLAN-Unterstützung | Yes |
| Vollduplex | Yes |
Operational conditions
| Betriebshöhe | 0 - 3000 m |
| Betriebstemperatur (TT) | 0 - 40 °C |
| Lagertemperatur (TT) | -40 - 70 °C |
| Relative Luftfeuchtigkeit bei Lagerung (HH) | 15 - 90 % |
| Relative Luftfeuchtigkeit im Betrieb (HH) | 15 - 95 % |
Performance
| Eingebauter Prozessor | Yes |
| Flash-Speicher | 512 MB |
| Interner Speicher | 1024 MB |
| Physisches Stapeln (Einheiten) | 4 |
| Prozessorfrequenz | 800 MHz |
| Prozessormodell | ARM Cortex-A9 |
| Speichertyp | DDR3-SDRAM |
Ports & interfaces
| Anzahl der 10G-Ethernet-Anschlüsse (Kupfer). | 2 |
| Anzahl der installierten SFP-Module | 0 |
| Anzahl der installierten SFP+-Module | 0 |
| Anzahl der SFP+-Modulsteckplätze | 2 |
| Grundlegende Anzahl von RJ-45-Ethernet-Ports | 24 |
| Grundlegender Switching-RJ-45-Ethernet-Porttyp | Gigabit Ethernet (10/100/1000) |
Power
| AC-Eingangsfrequenz | 50 - 60 Hz |
| AC-Eingangsspannung | 200 - 240 V |
| Energiequelle | AC |
| Inklusive Netzteil | Yes |
| Stromverbrauch (max.) | 480 W |
Power over Ethernet (PoE)
| Gesamtbudget für Power over Ethernet (PoE) | 370 W |
| Stromversorgung über Ethernet (PoE) | Yes |
Protocols
| IPv4- und IPv6-Funktionen | IPv4/IPv6 access-control list (ACL) |
| IPv4-FIB-Einträge | 32 |
| IPv6-FIB-Einträge | 32 |
Security
| Authentifizierung | Port-based authentication |
| Authentifizierungsart | RADIUS |
| DHCP-Funktionen | DHCP snooping |
| IGMP-Schnüffelei | Yes |
| SSH/SSL-Unterstützung | Yes |
| Zugriffskontrollliste (ACL) | Yes |
Vendor information
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 |
Artikeldetails
1071302
57 Artikel
Neu
Technische Daten
- Auto MDI/MDI-X
- Yes
- Flash-Speicher
- 512 MB
- Systemereignisprotokoll
- Yes
- Stapelbar
- Yes
- DHCP-Funktionen
- DHCP snooping
- ARP-Inspektion
- Yes
- Authentifizierung
- Port-based authentication
- Cloud-verwaltet
- Yes
- Jumbo-Rahmen
- 9216
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L2+
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1ab/IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3z
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Gesamtbudget für Power over Ethernet (PoE)
- 370 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Authentifizierungsart
- RADIUS
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Prozessormodell
- ARM Cortex-A9
- Prozessorfrequenz
- 800 MHz
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Durchsatz
- 95 Mpps
- Paketpufferspeicher
- 1.5 MB
- Portspiegelung
- Yes
- Ratenbegrenzung
- Yes
- Anzahl der SFP+-Modulsteckplätze
- 2
- SSH/SSL-Unterstützung
- Yes
- Anzahl der 10G-Ethernet-Anschlüsse (Kupfer).
- 2
- Schaltleistung
- 128 Gbit/s
- Formfaktor
- 1U
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 200 - 240 V
- Speichertyp
- DDR3-SDRAM
- Vollduplex
- Yes
- Eingebauter Prozessor
- Yes
- Betriebshöhe
- 0 - 3000 m
- Stromverbrauch (max.)
- 480 W
- 10G-Unterstützung
- Yes
- VLAN-Unterstützung
- Yes
- Energiequelle
- AC
- Brand Name
- Hewlett Packard Enterprise
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 15 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 15 - 95 %
- Interner Speicher
- 1024 MB
- Produktfarbe
- White
- Automatische Erkennung
- Yes
- Physisches Stapeln (Einheiten)
- 4
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
- Latenz (1 Gbit/s)
- 2.2 µs
- Latenz (10 Gbit/s)
- 1.1 µs
- IPv4-FIB-Einträge
- 32
- IPv6-FIB-Einträge
- 32
- Latenz (10-100 Mbit/s)
- 4.4 µs
- IPv4- und IPv6-Funktionen
- IPv4/IPv6 access-control list (ACL)
Besondere Bestellnummern
- upc
- 190017521589
- Hersteller-Teilenummer (MPN)
- JL807A
16 andere Artikel in der gleichen Kategorie:
Marke: Advantech
EKI-9728G-4X8CI-AE
4 x 10GbE + 16GE + 8GE Combo L3 Managed Ethernet Switch, -40~85?
4.706,1 CHF
inkl. MwSt.
4.353,5 CHF
zzgl. MwSt.
Wird für Sie bestellt
188,1 CHF
inkl. MwSt.
174,0 CHF
zzgl. MwSt.
Auf Lager
26,3 CHF
inkl. MwSt.
24,3 CHF
zzgl. MwSt.
Nur noch wenige Teile verfügbar
Artikel-Nr.: J9022-69001
Marke: Hewlett Packard Enterprise
J9022A-RFB
ProCurve 2810/48xFENet RJ45 ****
85,6 CHF
inkl. MwSt.
79,2 CHF
zzgl. MwSt.
Auf Lager
133,8 CHF
inkl. MwSt.
123,8 CHF
zzgl. MwSt.
Nur noch wenige Teile verfügbar
Marke: D-Link
GO-SW-16G/E
D-Link GO-SW-16G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Vollduplex, Rack-Einbau, 1U
103,2 CHF
inkl. MwSt.
95,5 CHF
zzgl. MwSt.
Auf Lager
Marke: Hewlett Packard Enterprise
JL684B_ABB
Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
678,5 CHF
inkl. MwSt.
627,7 CHF
zzgl. MwSt.
Auf Lager
33,1 CHF
inkl. MwSt.
30,6 CHF
zzgl. MwSt.
Auf Lager
755,2 CHF
inkl. MwSt.
698,6 CHF
zzgl. MwSt.
Wird für Sie bestellt
Marke: D-Link
GO-SW-24G/E
D-Link GO-SW-24G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Vollduplex, Rack-Einbau, 1U
131,4 CHF
inkl. MwSt.
121,6 CHF
zzgl. MwSt.
Auf Lager
1.183,0 CHF
inkl. MwSt.
1.094,4 CHF
zzgl. MwSt.
Wird für Sie bestellt
Marke: Hewlett Packard Enterprise
JL807A_ABB
Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
784,3 CHF
inkl. MwSt.
725,5 CHF
zzgl. MwSt.
Auf Lager
924,7 CHF
inkl. MwSt.
855,4 CHF
zzgl. MwSt.
Auf Lager
191,8 CHF
inkl. MwSt.
177,4 CHF
zzgl. MwSt.
Wird für Sie bestellt
Artikel-Nr.: W128429541
Marke: Hewlett Packard Enterprise
JL684B
Aruba Instant On 1930 24G Class4 Poe 4Sfp/Sfp+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) 1U White
683,1 CHF
inkl. MwSt.
631,9 CHF
zzgl. MwSt.
Auf Lager
Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
