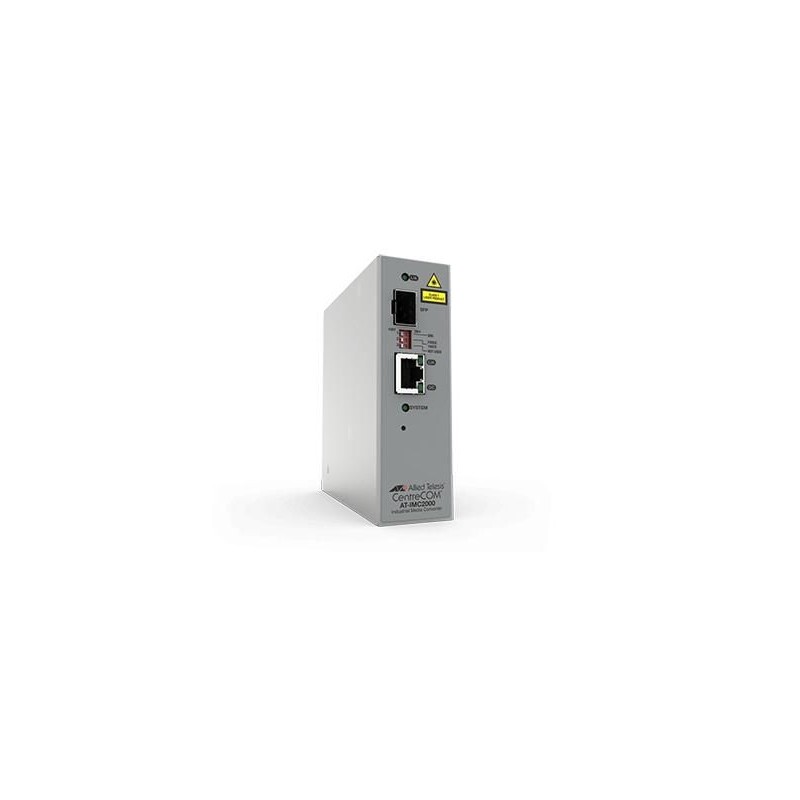

AT-IMC2000T/SP-980
TAA, 10/100/1000T to 100X/1000X SFP Industrial Temp Gigabit Media Converter
Beschreibung
10/100/1000T to 100Mbps/1000Mbps SFP industrial temperature media converter. These converters feature Smart MissingLink™ (SML) and support up to 10K jumbo frames. The IMC2000T/SP-980 can be mounted on a DIN-rail or used as a desktop/standalone device and is fanless for silent operation.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
- Converts speed as well as media type
- Supports 802.3at, PoE+, 30W and LTPoE++, 4-pair up to 70W
- Supplies up to 70W of PoE power
- Supports 100 and 1000Mbps fiber SFP modules (IMC2000/SP)
- Auto MDI/MDI-X
- Smart Missing Link (SML)
- Supports up to 10K jumbo frames
- Supports multi-mode fiber
- 4K MAC address table
- Store-and-forward switching mode
- Transparent to IEEE 802.1Q packets
- Standalone or DIN rail mount
- Fanless for silent operation
Spezifikationen
Certificates
| Compliance certificates | RoHS |
Design
| DIN-Schienenmontage | Yes |
| Intern | No |
| Internationaler Schutzcode (IP). | IP30 |
| LED-Anzeigen | Yes |
| Produktfarbe | Grey |
| Sicherheit | UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark) |
| Zertifizierung | EMI/Emission & Stability/EN55024 (immunity standard)/EN55032 Class A/EN55035/FCC Class A/TAA/VCCI Class A |
Network
| Ausgangsschnittstelle des Konverters | 1000Base-X/100Base-X |
| Auto MDI/MDI-X | Yes |
| Auto-Negotiation | Yes |
| Duplex-System | Full/Half |
| Eingangsschnittstelle des Konverters | 1000Base-T/100Base-T/10Base-T |
| Ethernet-LAN-Datenraten | 10/100/1000 Mbit/s |
| Ethernet-Schnittstellentyp | Fast Ethernet/Gigabit Ethernet |
| Jumbo-Rahmen | 10000 |
| Maximum Datenübertragungsrate | 1000 Mbit/s |
| Paketweiterleitungsrate (1 Gbit/s) | 1488000 pps |
| Paketweiterleitungsrate (10 Mbps) | 14880 pps |
| Paketweiterleitungsrate (100 Mbps) | 148800 pps |
| Speichern und weiterleiten | Yes |
| Unterstützung für Jumbo-Frames | Yes |
| VLAN-Unterstützung | Yes |
Operational conditions
| Betriebshöhe | 0 - 3048 m |
| Betriebstemperatur (TT) | -40 - 75 °C |
| Lagertemperatur (TT) | -40 - 85 °C |
| Relative Luftfeuchtigkeit bei Lagerung (HH) | 5 - 95 % |
| Relative Luftfeuchtigkeit im Betrieb (HH) | 5 - 95 % |
Performance
| Empfangsleistung (max.) | -3 dBmW |
| Empfangsleistung (min) | -17 dBmW |
| Sendeleistung (max.) | -4 dBmW |
| Sendeleistung (min) | -9.5 dBmW |
| Wellenlänge | 850 nm |
Ports & interfaces
| Anzahl der Glasfaseranschlüsse | 1 |
| Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Glasfaseranschluss | SFP |
| Konnektivitätstechnologie | Wired |
Power
| Eingangsspannung | 12 - 48 V |
Technical details
| Nachhaltigkeitszertifikate | RoHS |
Vendor information
| Brand Name | Allied Telesis |
| Warranty | 1 |
Artikeldetails
2026-03-16
Neu
Technische Daten
- Auto MDI/MDI-X
- Yes
- Paketweiterleitungsrate (1 Gbit/s)
- 1488000 pps
- Sicherheit
- UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark)
- Jumbo-Rahmen
- 10000
- Unterstützung für Jumbo-Frames
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Maximum Datenübertragungsrate
- 1000 Mbit/s
- Ethernet-Schnittstellentyp
- Fast Ethernet/Gigabit Ethernet
- Speichern und weiterleiten
- Yes
- Eingangsspannung
- 12 - 48 V
- Compliance certificates
- RoHS
- LED-Anzeigen
- Yes
- Internationaler Schutzcode (IP).
- IP30
- Konnektivitätstechnologie
- Wired
- Zertifizierung
- EMI/Emission & Stability/EN55024 (immunity standard)/EN55032 Class A/EN55035/FCC Class A/TAA/VCCI Class A
- Nachhaltigkeitszertifikate
- RoHS
- Anzahl der Glasfaseranschlüsse
- 1
- Wellenlänge
- 850 nm
- Glasfaseranschluss
- SFP
- Betriebshöhe
- 0 - 3048 m
- Duplex-System
- Full/Half
- VLAN-Unterstützung
- Yes
- Brand Name
- Allied Telesis
- Warranty
- 1
- Betriebstemperatur (TT)
- -40 - 75 °C
- Lagertemperatur (TT)
- -40 - 85 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Intern
- No
- Produktfarbe
- Grey
- Auto-Negotiation
- Yes
- Paketweiterleitungsrate (10 Mbps)
- 14880 pps
- Paketweiterleitungsrate (100 Mbps)
- 148800 pps
- DIN-Schienenmontage
- Yes
- Sendeleistung (max.)
- -4 dBmW
- Sendeleistung (min)
- -9.5 dBmW
- Ausgangsschnittstelle des Konverters
- 1000Base-X/100Base-X
- Eingangsschnittstelle des Konverters
- 1000Base-T/100Base-T/10Base-T
- Empfangsleistung (max.)
- -3 dBmW
- Empfangsleistung (min)
- -17 dBmW
Besondere Bestellnummern
- upc
- 767035210582
- Hersteller-Teilenummer (MPN)
- AT-IMC2000T/SP-980
