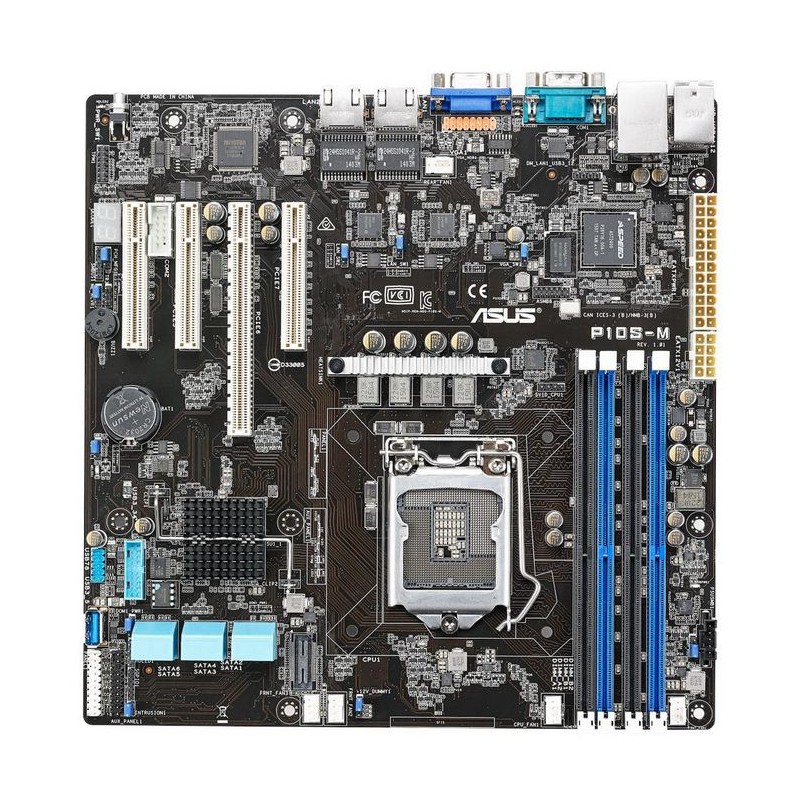

P10S-M
P10S-M, LGA1151, Intel C232, 4x DDR4 UDIMM, 3x PCI-E x8, 1x PCI-E x16, 6x SATA III, USB 3.1, PS/2, VGA, LAN, Aspeed AST2400, UATX
Beschreibung
Compact Size with Expandable I/O Support
Micro ATX compact with Multiple Expansions
The ASUS P10S-M is an Intel® Greenlow platform server board based on the Intel® C232 chipset provides dual server-class Intel® Ethernet , native 6 SATA 6G, and 4 PCI Express 3.0 which can fulfill various requirements. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.
Optional PIKE II 3x08 Series SAS 12Gb/s solution
ASUS PIKE II 3x08 series is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets users’ needs with support 12Gb/s SAS storage and various RAID levels data protection. Just placing the PIKE II card, P10S Series can immediately enlarge the capacity and improve the performance, making it the great upgrade option.
ASUS Platinum-Grade Power Efficiency
ASUS P10S-M server board is designed with the platinum power solution with the hand-chosen components and provide titanium efficiency which is up to 92%. The platinum power solution consists 3 pillars to achieve the 92% platinum efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). The 3rd generation Beat Thermal Choke with lower DCR and result in 3℃-lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products.
Serviceability – Quick Boot
The ASUS P10 Series features quick initialization guidance which let users realize system initialization state in seconds; Turn on the power button comes with 3 key information showing on the screen at the same time: (1) progress bar showcases the booting status, (2) BMC IP address if ASMB module is mounted on the server and (3) 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.
Complete remote server management
The optional IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS updates, backup and restore configurations, SNMP agent support (MIBs files), audit log, and BIOS post code. With out-of-band management ASMB8-iKVM provides round-the-clock remote monitoring and diagnosis even if the server operating system is down or offline, and all through a user-friendly web-based graphical interface that works with all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control and power control, via colorful and informative graphical interface.
Micro ATX compact with Multiple Expansions
The ASUS P10S-M is an Intel® Greenlow platform server board based on the Intel® C232 chipset provides dual server-class Intel® Ethernet , native 6 SATA 6G, and 4 PCI Express 3.0 which can fulfill various requirements. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.
Optional PIKE II 3x08 Series SAS 12Gb/s solution
ASUS PIKE II 3x08 series is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets users’ needs with support 12Gb/s SAS storage and various RAID levels data protection. Just placing the PIKE II card, P10S Series can immediately enlarge the capacity and improve the performance, making it the great upgrade option.
ASUS Platinum-Grade Power Efficiency
ASUS P10S-M server board is designed with the platinum power solution with the hand-chosen components and provide titanium efficiency which is up to 92%. The platinum power solution consists 3 pillars to achieve the 92% platinum efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). The 3rd generation Beat Thermal Choke with lower DCR and result in 3℃-lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products.
Serviceability – Quick Boot
The ASUS P10 Series features quick initialization guidance which let users realize system initialization state in seconds; Turn on the power button comes with 3 key information showing on the screen at the same time: (1) progress bar showcases the booting status, (2) BMC IP address if ASMB module is mounted on the server and (3) 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.
Complete remote server management
The optional IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS updates, backup and restore configurations, SNMP agent support (MIBs files), audit log, and BIOS post code. With out-of-band management ASMB8-iKVM provides round-the-clock remote monitoring and diagnosis even if the server operating system is down or offline, and all through a user-friendly web-based graphical interface that works with all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control and power control, via colorful and informative graphical interface.
- Cost-effective driven
- uATX combact size
- Daul Intel I210 Server Class GbE delivering high networking bandwidth
- Complete remote management saving time and efforts
Spezifikationen
Expansion slots
| PCI Express x8 (Gen 2.x)-Steckplätze | 0 |
| PCI Express x8 (Gen 3.x)-Steckplätze | 3 |
| PCI-Express-x16-Steckplätze (Gen 2.x). | 0 |
| PCI-Express-x16-Steckplätze (Gen 3.x) | 1 |
Features
| Komponente für | Workstation |
| Motherboard-Chipsatz | Intel® C232 |
| Motherboard-Formfaktor | micro ATX |
| Rack-freundliches Board | Yes |
| Überwachung des PC-Zustands | CPU/Fan |
Graphics
| Integrierter Grafikkartenspeicher | 32 MB |
| Integriertes Grafikkartenmodell | Aspeed AST2400 |
Internal I/O
| Anzahl der Gehäuselüfteranschlüsse | 5 |
| Anzahl der SATA III-Anschlüsse | 6 |
| ATX-Stromanschluss (24-polig) | Yes |
| Gehäuseeingriffsanschluss | Yes |
| Header der seriellen Schnittstelle | 1 |
| Lüfteranschluss | Yes |
| TPM-Anschluss | Yes |
| USB 2.0-Anschlüsse | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
Memory
| ECC сompatibility | ECC & Non-ECC |
| Maximum interner Speicher | 64 GB |
| Speicherkanäle | Dual-channel |
| Speicherspannung | 1.2 V |
| Unterstützte Speichertaktraten | 2133/2400 MHz |
| Unterstützte Speichertypen | DDR4-SDRAM |
Network
| Ethernet-LAN | Yes |
| Ethernet-Schnittstellentyp | Gigabit Ethernet |
| LAN-Controller | Intel® I210-AT |
| Wi-Fi | No |
Operational conditions
| Betriebstemperatur (TT) | 10 - 35 °C |
| Lagertemperatur (TT) | -40 - 70 °C |
| Relative Luftfeuchtigkeit bei Lagerung (HH) | 20 - 90 % |
Other features
| Anzahl der DIMM-Steckplätze | 4 |
| Anzahl der unterstützten Prozessoren | 1 |
| Maximum UDIMM-Speicher | 64 GB |
| Unterstützte UDIMM-Modulkapazität | 16GB/4GB/8GB |
| Unterstützte UDIMM-Taktraten | 2133/2400 MHz |
Packaging content
| Benutzerhandbuch | Yes |
| Kabel enthalten | SATA |
Processor
| Intel Xeon-Serie | E3-1200 |
| Kompatible Prozessorserien | Intel® Celeron®/Intel® Core™ i3/Intel® Pentium®/Intel® Xeon® E3 Family |
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1151 (Socket H4) |
Rear panel I/O ports
| Anzahl der PS/2-Ports | 1 |
| Anzahl der seriellen Anschlüsse | 1 |
| Anzahl der USB 2.0-Anschlüsse | 2 |
| Anzahl der VGA (D-Sub) Anschlüsse | 1 |
| Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Anschlüsse | 2 |
| Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
Storage controllers
| RAID-Level | 0/1/10/5 |
| RAID-Unterstützung | Yes |
| Unterstützte Speicherlaufwerkschnittstellen | SATA III |
Vendor information
| Brand Name | Asus |
| Warranty | 1 |
Artikeldetails
2026-06-22
Neu
Technische Daten
- Benutzerhandbuch
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse
- 1
- TPM-Anschluss
- Yes
- Integriertes Grafikkartenmodell
- Aspeed AST2400
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Anschlüsse
- 2
- Ethernet-LAN-Anschlüsse (RJ-45)
- 2
- Anzahl der USB 2.0-Anschlüsse
- 2
- Ethernet-Schnittstellentyp
- Gigabit Ethernet
- Speicherspannung
- 1.2 V
- Wi-Fi
- No
- Kabel enthalten
- SATA
- Anzahl der seriellen Anschlüsse
- 1
- Ethernet-LAN
- Yes
- Kompatible Prozessorserien
- Intel® Celeron®/Intel® Core™ i3/Intel® Pentium®/Intel® Xeon® E3 Family
- Speicherkanäle
- Dual-channel
- Prozessorsockel
- LGA 1151 (Socket H4)
- Motherboard-Chipsatz
- Intel® C232
- Motherboard-Formfaktor
- micro ATX
- Unterstützte Speichertaktraten
- 2133/2400 MHz
- Unterstützte Speichertypen
- DDR4-SDRAM
- Prozessorhersteller
- Intel
- Maximum interner Speicher
- 64 GB
- RAID-Unterstützung
- Yes
- Anzahl der DIMM-Steckplätze
- 4
- LAN-Controller
- Intel® I210-AT
- Anzahl der unterstützten Prozessoren
- 1
- Anzahl der VGA (D-Sub) Anschlüsse
- 1
- Brand Name
- Asus
- Warranty
- 1
- Komponente für
- Workstation
- Betriebstemperatur (TT)
- 10 - 35 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 20 - 90 %
- RAID-Level
- 0/1/10/5
- Unterstützte Speicherlaufwerkschnittstellen
- SATA III
- PCI Express x8 (Gen 2.x)-Steckplätze
- 0
- PCI Express x8 (Gen 3.x)-Steckplätze
- 3
- PCI-Express-x16-Steckplätze (Gen 2.x).
- 0
- PCI-Express-x16-Steckplätze (Gen 3.x)
- 1
- USB 2.0-Anschlüsse
- 1
- ECC сompatibility
- ECC & Non-ECC
- Unterstützte UDIMM-Taktraten
- 2133/2400 MHz
- Intel Xeon-Serie
- E3-1200
- Anzahl der PS/2-Ports
- 1
- Anzahl der SATA III-Anschlüsse
- 6
- Anzahl der Gehäuselüfteranschlüsse
- 5
- ATX-Stromanschluss (24-polig)
- Yes
- Gehäuseeingriffsanschluss
- Yes
- Lüfteranschluss
- Yes
- Überwachung des PC-Zustands
- CPU/Fan
- Header der seriellen Schnittstelle
- 1
- Rack-freundliches Board
- Yes
- Maximum UDIMM-Speicher
- 64 GB
- Integrierter Grafikkartenspeicher
- 32 MB
- Unterstützte UDIMM-Modulkapazität
- 16GB/4GB/8GB
Besondere Bestellnummern
- upc
- 672042663118
- Hersteller-Teilenummer (MPN)
- P10S-M
