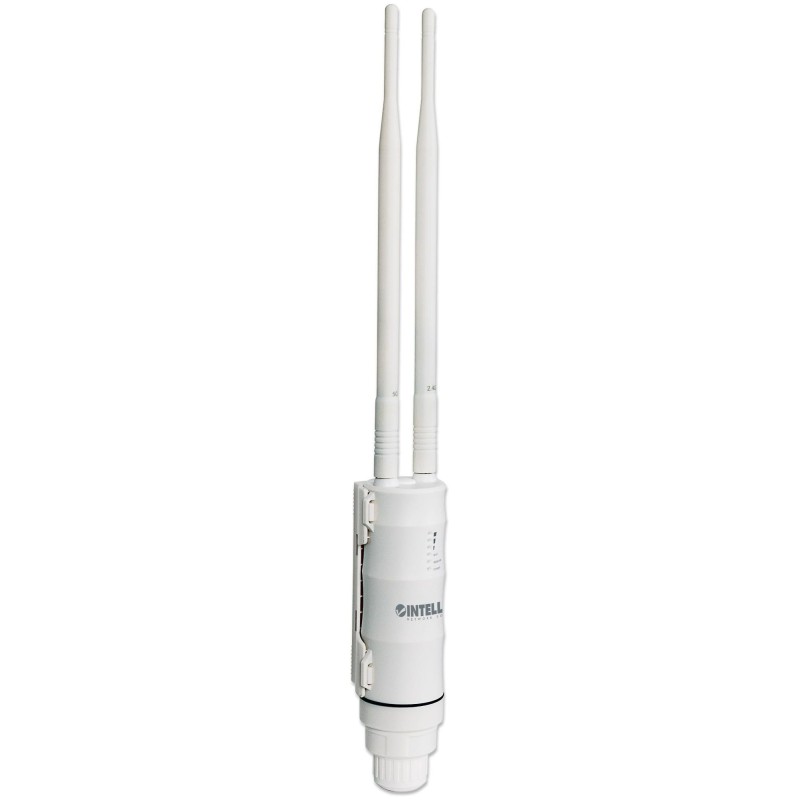

Increase the coverage of your wireless network with the Intellinet Network Solutions High-Power Wireless AC600 Dual-Band Outdoor Access Point / Repeater.
Multiple Solutions in One Device
The Intellinet Network Solutions High-Power Wireless AC600 Dual-Band Outdoor Access Point / Repeater serves multiple purposes - an access point for your wireless network, a basic wireless router, a wireless repeater that amplifies the wireless signal to extend your network, a CPE for wireless Internet service (WISP), and two high-gain antennas for long range transmissions - and brings it all together in an easy to configure package.
Concurrent 2.4 and 5 GHz Performance
The main benefit of a dual-band AC access point is the ability to shift traffic from the congested 2.4 GHz band to the relatively uncluttered 5 GHz space. So, you can use the 2.4 GHz band for your everyday tasks, such as surfing the Internet, social media or e-mail, while the 5 GHz AC band can be used for mission-critical transmissions.
Flexibility via passive-PoE
The Intellinet Network Solutions High-Power Wireless AC600 Dual-Band Outdoor Access Point / Repeater comes with a passive PoE port. This port can be used to power the device with the included passive PoE injector for distances up to 60 meters, which is very convenient in situations where AC power is not readily available.
Install it your Way
Pole or wall mounting? The choice is yours. The necessary installation materials are included.
Waterproof
The IP65-rated Intellinet Network Solutions High-Power Wireless AC600 Dual-Band Outdoor Access Point is made using weatherproof and corrosion-resistant material, and can be used indoors or outdoors.
- The latest in wireless technology transfer delivers up to 433 Mbps (5 GHz) and 150 Mbps (2.4 GHz) speeds
- Weatherproof and corrosion resistant, IP65
- Simultaneous dual-band operation (2.4 GHz and 5 GHz) provides twice the bandwidth
- Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
- Supports WMM (IEEE 802.11e QoS standard) prioritising bandwidth for multimedia applications
- Powerful 7 dBi gain antennas, detachable, with RP-SMA female connector
- Supported modes: Access Point, Router, Repeater and WISP (Wireless ISP)
- Supports Wi-Fi Protected Setup (WPS)
- Included passive POE injector for up to 60 meters (200 feet) connection distance
- Easy installation through Web-based user interface
- Firmware upgradeable
- Three-Year Warranty
Spezifikationen
Antenna
| Antennen Menge | 2 |
| Antennenfunktionen | Detachable antenna |
| Antennentyp | External |
| Antennenverstärkungspegel (max.) | 7 dBi |
Design
| Internationaler Schutzcode (IP). | IP65 |
| LED-Anzeigen | Yes |
| Platzierung | Pole/Wall |
| Produktfarbe | White |
| Reset-Knopf | Yes |
| Zertifizierung | FCC Class A, CE, RoHS |
Features
| 2,4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet-LAN-Datenraten | 10/100 Mbit/s |
| Kabellose Isolierung | Yes |
| Maximum Datenübertragungsrate | 433 Mbit/s |
| Maximum Datenübertragungsrate (2,4 GHz) | 150 Mbit/s |
| Maximum Datenübertragungsrate (5 GHz) | 433 Mbit/s |
| Modulation | 128-QAM/16-QAM/256-QAM/64-QAM/BPSK/CCK/DBPSK/DQPSK/DSSS/OFDM/QPSK |
| Netzwerkstandards | IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3u |
| Quality of Service (QoS)-Unterstützung | Yes |
| Sendeleistung | 28 dBmW |
| WLAN-Multimedia (WMM)/(WME) | Yes |
Management features
| Firmware aktualisierbar | Yes |
Operational conditions
| Betriebstemperatur (TT) | -30 - 70 °C |
| Lagertemperatur (TT) | -40 - 70 °C |
| Relative Luftfeuchtigkeit bei Lagerung (HH) | 10 - 90 % |
| Relative Luftfeuchtigkeit im Betrieb (HH) | 10 - 90 % |
Packaging content
| Anzahl der enthaltenen Produkte | 1 Stück(e) |
| Inklusive Netzteil | Yes |
| Kabel enthalten | LAN (RJ-45) |
| Menge pro Packung | 1 Stück(e) |
| Montage Kits | Yes |
| Schnellstartanleitung | Yes |
Packaging data
Performance
| Flash-Speicher | 64 MB |
| Interner Speicher | 512 MB |
Ports & interfaces
| Anzahl der USB 2.0-Anschlüsse | 0 |
| Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
Power
| Ausgangsspannung | 24 V |
| Ausgangsstrom | 0.5 A |
| Stromverbrauch (max.) | 7 W |
| Stromversorgung über Ethernet (PoE) | Yes |
Security
| Sicherheitsalgorithmen | 128-bit WEP/64-bit WEP/AES/TKIP/WPA/WPA2-PSK/WPS |
Vendor information
| Brand Name | Intellinet |
| Warranty | 1 |
