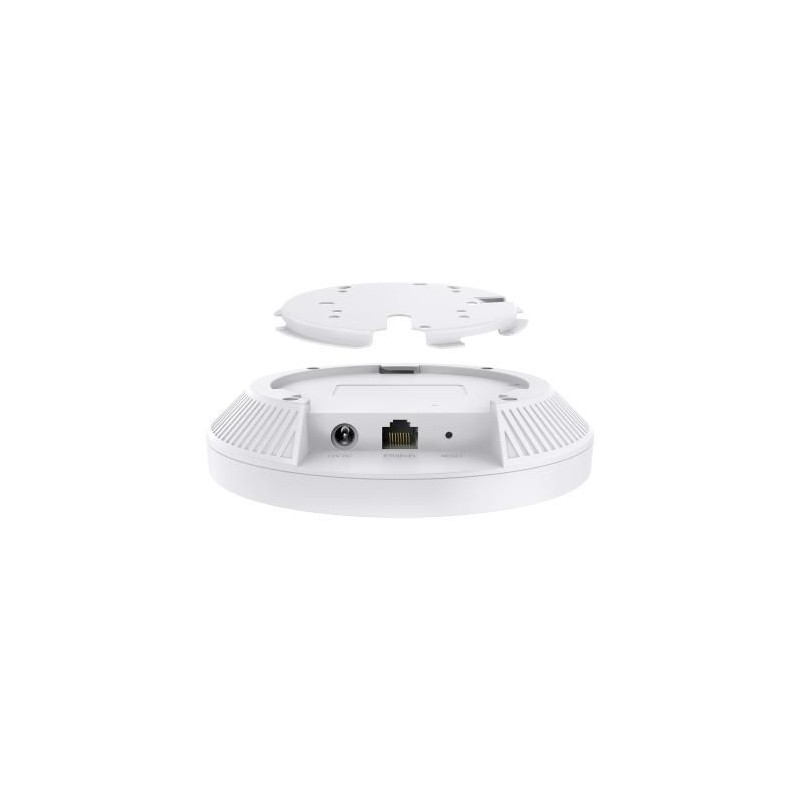

BE3600 Ceiling Mount Wi-Fi 7 Access Point
BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
1× 2.5G Port unlocks the full potential of Wi-Fi 7.
160 MHz bandwidth enables many more simultaneous transmissions.‡
Multi-RUs ensure the high performance of your network.‡
Advanced Functions: Centralized management, mesh, and Seamless roaming.△
- BE5000 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)
- 1× 2.5G port unlocks the full potential of Wi-Fi 7
- 240 MHz bandwidth enables many more simultaneous transmissions
- Multi-RUs ensure the high performance of your network
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming
Spezifikationen
Antenna
| Antennentyp | Internal |
| Antennenverstärkungspegel (max.) | 5 dBi |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/RoHS |
Design
| LED-Anzeigen | Yes |
| Platzierung | Ceiling/Wall |
| Produktfarbe | White |
| Reset-Knopf | Yes |
Features
| 2,4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatische Kanalwahl | Yes |
| Bandbreite | 2.4 GHz |
| Bandsteuerung | Yes |
| BeamForming | Yes |
| Frequenzband | 2.4 - 5 GHz |
| Maximum Datenübertragungsrate | 3600 Mbit/s |
| Maximum Datenübertragungsrate (2,4 GHz) | 688 Mbit/s |
| Maximum Datenübertragungsrate (5 GHz) | 2882 Mbit/s |
| MIMO | Yes |
| MIMO-Typ | Multi User MIMO |
| Netzwerkstandards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| Passen Sie die Funktionen des AP-Modus an | Mesh networking |
| Quality of Service (QoS)-Unterstützung | Yes |
| Ratenbegrenzung | Yes |
| Spread-Spektrum-Methode | OFDMA |
| VLAN-Unterstützung | Yes |
Management features
| Syslog | Yes |
| Webbasierte Verwaltung | Yes |
Packaging content
| Menge pro Packung | 1 Stück(e) |
| Montage Kits | Yes |
| Schnellstartanleitung | Yes |
Ports & interfaces
| DC-Eingangsbuchse | Yes |
| Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
Power
| Eingangsstrom | 1.5 A |
| Stromverbrauch (max.) | 18.6 W |
| Stromversorgung über Ethernet (PoE) | Yes |
Security
| MAC-Adressfilterung | Yes |
| Sicherheitsalgorithmen | SNMP/SNMPv2/SNMPv3/WPA-Enterprise/WPA-Personal/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal |
| Zugriffskontrollliste (ACL) | Yes |
