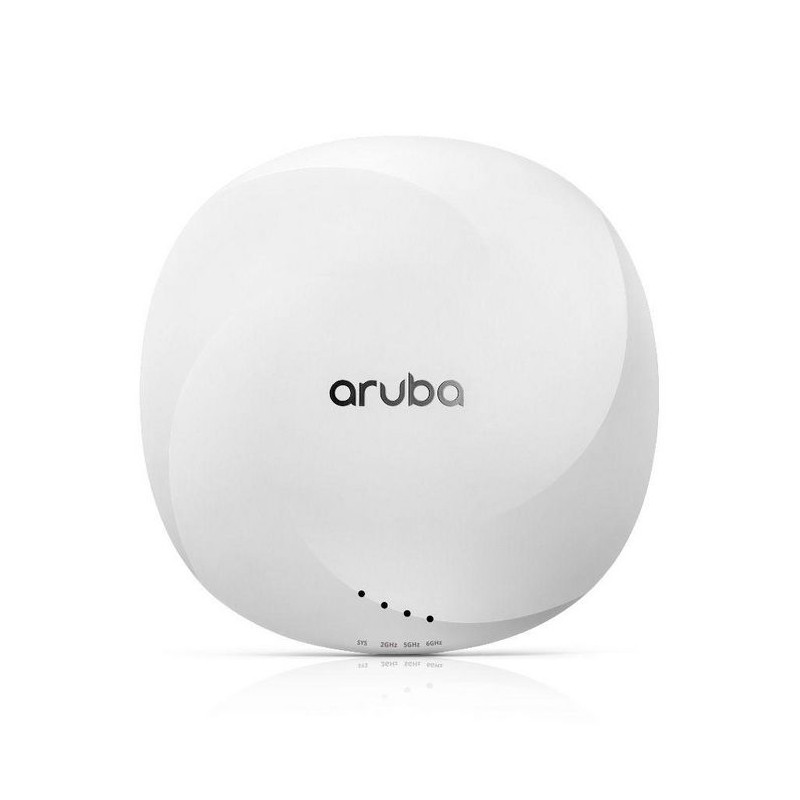

HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and IoT devices, and expanded use of the cloud. The compact and cost-effective 610 Series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-AP deployment. Built-in GPS receivers and fine time measurements enable the 610 Series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 Series includes a limited lifetime warranty.
What is new supporting point:
Offered as optional eco-friendly 10-pack.
Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications.
Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments.
Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source
[1].
Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements.
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate.
Spezifikationen
Antenna
| Antennenrichtungstyp | Omni-directional |
| Antennentyp | Internal |
| Antennenverstärkungspegel (max.) | 6 dBi |
Certificates
| Compliance certificates | CE/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ISED/Low Voltage Directive (LVD) |
| Zertifizierung | None |
Design
| Platzierung | Ceiling |
| Produktfarbe | White |
| Schlitz für Kabelschloss | Yes |
Features
| 2,4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth-Version | 5.0 |
| Ethernet-LAN-Datenraten | 100/1000/2500 Mbit/s |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| Maximum Datenübertragungsrate | 2400 Mbit/s |
| Maximum Datenübertragungsrate (2,4 GHz) | 574 Mbit/s |
| Maximum Datenübertragungsrate (5 GHz) | 1200 Mbit/s |
| MIMO | Yes |
| Netzwerkstandards | IEEE 802.11ax |
| Trusted-Platform-Modul (TPM) | Yes |
Operational conditions
| Betriebstemperatur (TT) | 0 - 50 °C |
| Lagertemperatur (TT) | -25 - 55 °C |
| Relative Luftfeuchtigkeit bei Lagerung (HH) | 10 - 100 % |
| Relative Luftfeuchtigkeit im Betrieb (HH) | 5 - 95 % |
Ports & interfaces
| Anzahl der USB 2.0-Anschlüsse | 1 |
| Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
Power
| Stromversorgung über Ethernet (PoE) | Yes |
Security
| Sicherheitsalgorithmen | WPA/WPA2/WPA3/WPA3-SAE |
Vendor information
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 |
