Designed with ventilation in mind, this case delivers superior air flow while allowing for viewing of your front LED fans. This high-performance mini tower case comes equipped with a full tempered glass side panel to showcase the inside of your rig. Supports liquid cooling in the front and rear of the case for maximum cooling efficiency.

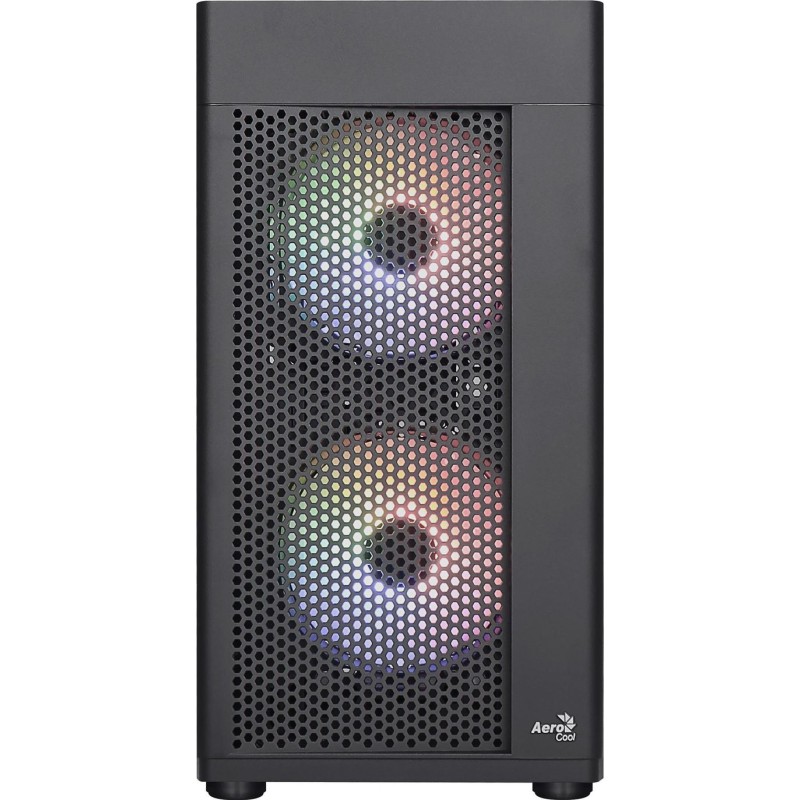

IMPROVED AIR VENTILATION Stylish front panel design with built-in air vents delivers increased air flow and ventilation while allowing for viewing of your front LED fans.
FULL TEMPERED GLASS SIDE PANEL Comes equipped with a full tempered glass side panel to showcase the inside of your rig and put your components on display.
AIR COOLINGSupports air cooling in the front, top, and rear of the case to enhance cooling performance.
- Front: 120mm x 2 or 140mm x 2 (Max)
- Top: 120mm x 2 (Max.)
- Rear: 120mm x 1 (Max.)
LIQUID COOLINGSupports liquid cooling in the front and rear of the case for maximum cooling efficiency.
- Front: 120/240mm Radiator (Optional)
- Rear: 120mm Radiator (Optional) (not compatible with cooler with pump on radiator)
BUILT FOR HIGH PERFORMANCE- Supports Micro-ATX and mini-ITX motherboards
- Supports CPU coolers up to 159mm
- Supports high-end graphics cards up to 296mm (without front radiator)
CONVENIENT ACCESS TO YOUR MEDIAQuick and easy access to USB 3.0 x 1, USB 2.0 x 2, HD audio and mic ports, and power & reset button.
STORAGE CAPABILITYSupports up to 2 x 3.5” HDDs (2 x 3.5”/2.5″) and 2 x 2.5” SSDs (2 x 2.5”/3.5”).
EASY MAINTENANCERemovable dust filters for convenient cleaning and maintenance.
- Front panel with air vents delivers superior air flow and ventilation while allowing for viewing of your front LED fans
- Full tempered glass side panel showcases the inside of your rig
- Supports liquid cooling in the front and rear of the case
- Supports air cooling in the front, top, and rear of the case
- Supports CPU cooler up to 159mm
- Supports high-end graphics cards up to 296mm (without front radiator)
Spezifikationen
Cooling
| Anzahl der unterstützten hinteren Lüfter (max.) | 1 |
| Anzahl der unterstützten Top-Lüfter (max.) | 2 |
| Anzahl unterstützter Frontlüfter (max.) | 2 |
| Durchmesser der hinteren Lüfter werden unterstützt | 12 cm |
| Durchmesser der vorderen Lüfter werden unterstützt | 120/140 mm |
| Fähigkeit zur Flüssigkeitskühlung | Yes |
| Frontlüfter verbaut | 2x 120 mm |
| Lüfter hinten verbaut | 1x 120 mm |
| Top-Lüfterdurchmesser werden unterstützt | 12 cm |
| Unterstützte Lüftergrößen für den hinteren Kühler | 12 cm |
| Unterstützte Lüftergrößen für den vorderen Kühler | 120/240 mm |
Design
| Anzahl der 2,5"-Schächte | 2 |
| Anzahl der 3,5-Zoll-Schächte | 2 |
| Anzahl der Erweiterungssteckplätze | 4 |
| Beleuchtung | Yes |
| Beleuchtungsort | Back/Front |
| Formfaktor | Mini Tower |
| Material | ABS/SPCC |
| Maximum Grafikkartenlänge | 29.6 cm |
| Maximum Höhe des CPU-Kühlers | 15.9 cm |
| Produktfarbe | Black |
| Typ | PC |
| Unterstützte Motherboard-Formfaktoren | micro ATX/Mini-ITX |
Ports & interfaces
| Anzahl der USB 2.0-Anschlüsse | 2 |
| Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Anschlüsse | 1 |
| Audioausgang | Yes |
| Audioeingang | Yes |
Power supply
| Inklusive Netzteil | No |
| Unterstützte Netzteil-Formfaktoren | ATX |
Vendor information
| Brand Name | AeroCool |
| Warranty | 1 |
