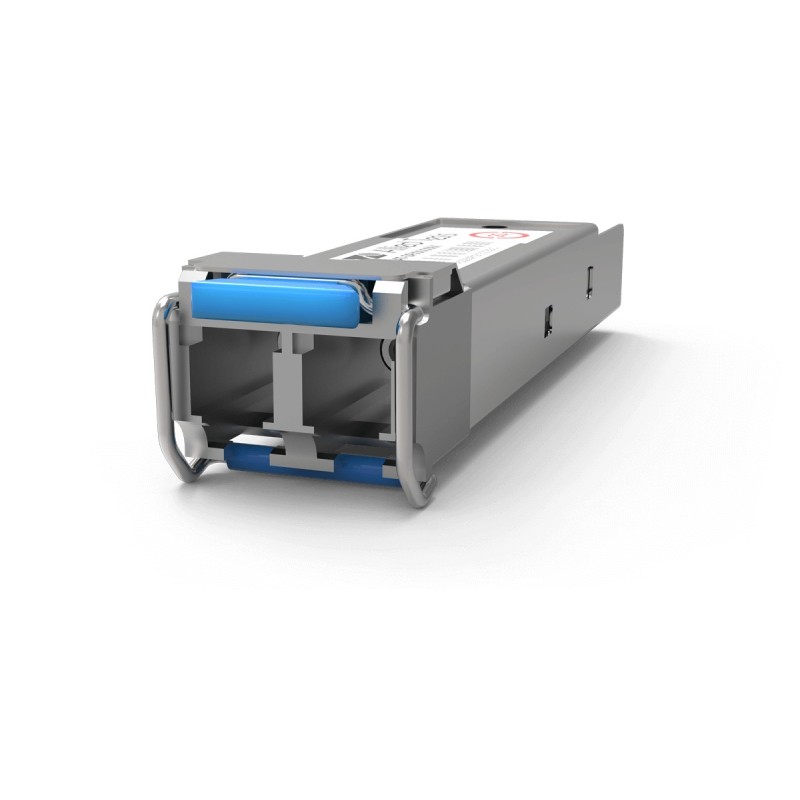

AT-SPLX40/E

1000EX (LC) single-mode SFP, Ext-Temp, 40km
The SPLX40/E offers a long-haul option to extend your network up to 40 km.

Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity. These hot-swappable fiber and copper interfaces simply plug into the SFP slot on all SFP-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.

Compatibility
Allied Telesis SP Series Small Form-Factor Pluggables (SFPs) are supported on Allied Telesis devices with SFP uplink connections.

SP Series SFPs are Multi-Sourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP Series to be used with other MSA-compliant platforms that support SFP uplink connections.

For Cisco compatibility please refer to the “SFP Compatibility Flyer”.

Options
SP Series SFPs offer short-haul,
long-haul and Bi-Directional (BiDi) solutions. This flexibility allows network managers to easily extend network distance and bandwidth.

Using an SFP BiDi transceiver can upgrade transmission capacity on a typical network—without installing new fibers—by utilizing a single fiber for both the send and receive signals.

Multiple temperature ranges
Different network environments call for a variety of temperature ranges. The SP Series is available in standard (0-70°C), industrial (-40 to 85°C), and extended (-40 to 105°C) temperature variants.

Allied Telesis AT-SPLX40/E. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product color: Silver, Housing material: Metal. Certification: TAA. Quantity per pack: 1 pc(s). RX sensitivity: -23 dB

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Maximum transfer distance	1574803.1" (40000 m)
Wavelength	1310 nm
Tx power (min)	-5 dBmW
Tx power (max)	0 dBmW
Rx power (max)	-23 dBmW
Link budget	18 dB
Digital Diagnostics Monitoring (DDM)	Yes
Export Control Classification Number (ECCN)	5A991B4A
Product color	Silver
Housing material	Metal
Plug and Play	Yes
Hot-swap	Yes
Certification	TAA
Operating temperature (T-T)	-40 - 105 °C
Operating relative humidity (H-H)	0 - 85%
Quantity per pack	1 pc(s)
RX sensitivity	-23 dB
Harmonized System (HS) code	8517.62.0050
