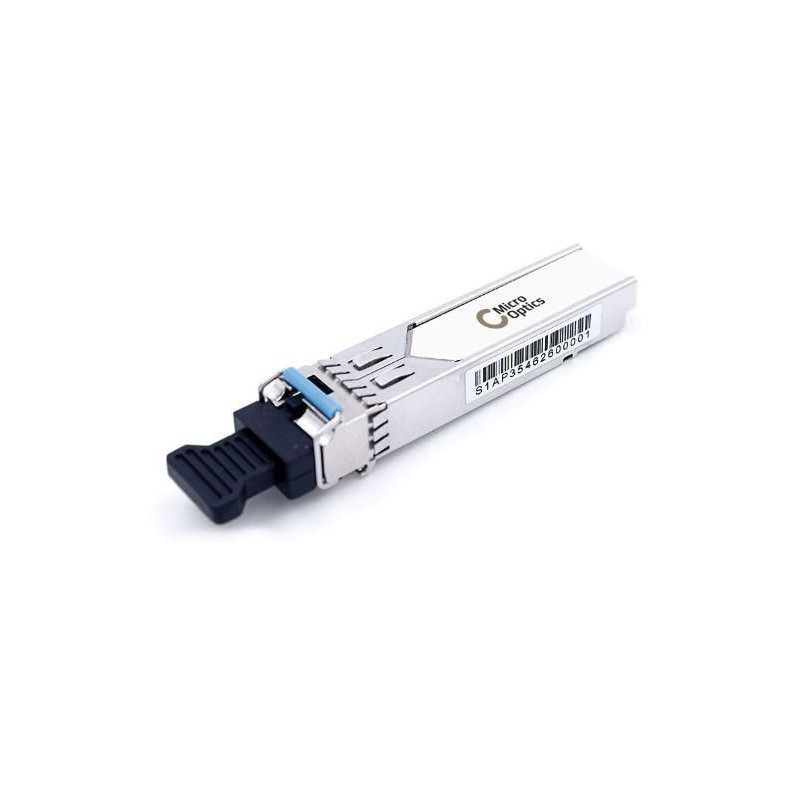

MO-02315203 - 02315203

Data sheet

Brand compatibility

Huawei

Product color

Black, Metallic

Quantity per pack

1 pc(s)

Interface

SFP

Weight

0.353 oz (10 g)

Compatible products

02315203

Hot-Plug support

Yes

Plug and Play

Yes

Width

0.528" (13.4 mm)

Height

0.335" (8.5 mm)

Certification

MSA, RoHS

Depth

2.22" (56.5 mm)

Package weight

0.705 oz (20 g)

Warranty period

3 year(s)

Package width

2.36" (60 mm)

Package depth

0.394" (10 mm)

Package height

1.18" (30 mm)

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

10 - 80%

SFP transceiver type

Fiber optic

Maximum data transfer rate

155 Mbit/s

Multi-mode fiber (MMF) supported

No

Fiber cable diameters supported (core/cladding)

9/125 µm

SFP transceiver standard

BX

Auto MDI/MDI-X

Yes

Sustainability compliance

Yes

Compliance certificates

RoHS

Fiber optic connector

LC

Ethernet interface type

Gigabit Ethernet

Maximum operating temperature

70 °C

Easy to install

Yes

Maximum transfer distance

787401.6" (20000 m)

Wavelength

1310 nm

Single-mode fiber (SMF) supported

Yes

Digital Diagnostics Monitoring (DDM)

Yes

Minimum operating temperature

0 °C

Fiber ethernet cabling technology

100BASE

Duplex system

Full

Tx wavelength (min)

1310 nm

Rx wavelength (min)

1550 nm

Specific References

EAN13

5715063256176

MPN

MO-02315203
