| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, HDMI, USB A |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 16 |
| USB 2.0 Type-B ports quantity | 16 |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-B |
| PS/2 ports quantity | 2 |
| Audio connections | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Rack mounting | No |
| Product color | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Built-in display | No |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 15.3 W |
| Windows operating systems supported | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 8.07" (204.9 mm) |
| Depth | 17" (432.4 mm) |
| Height | 2.58" (65.5 mm) |
| Weight | 7.8 lbs (3.54 kg) |
| Package width | 5.24" (133 mm) |
| Package depth | 19.6" (499 mm) |
| Package height | 12.8" (324 mm) |
| Package weight | 9.33 lbs (4.23 kg) |
| Cables included | AC |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 23.4 lbs (10.6 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 16.8" (427 mm) |
| Master (outer) case length | 20.4" (519 mm) |
| Master (outer) case height | 13.7" (348 mm) |
| Master (outer) case weight | 32.2 lbs (14.6 kg) |
| Quantity per master (outer) case | 3 pc(s) |
Data sheet
Specific References
Brand: Aten
Brand: MicroConnect
Brand: Aten
Brand: Aten
Brand: Aten
Brand: Aten

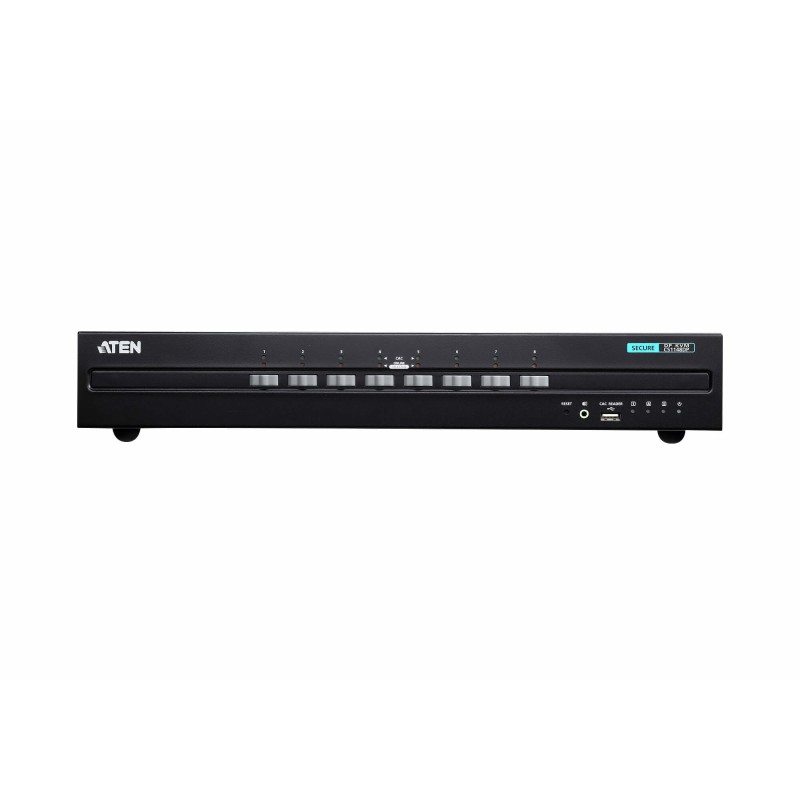

ATEN CS1148DP, 3840 x 2160 pixels, 4K Ultra HD, 15.3 W, Black
