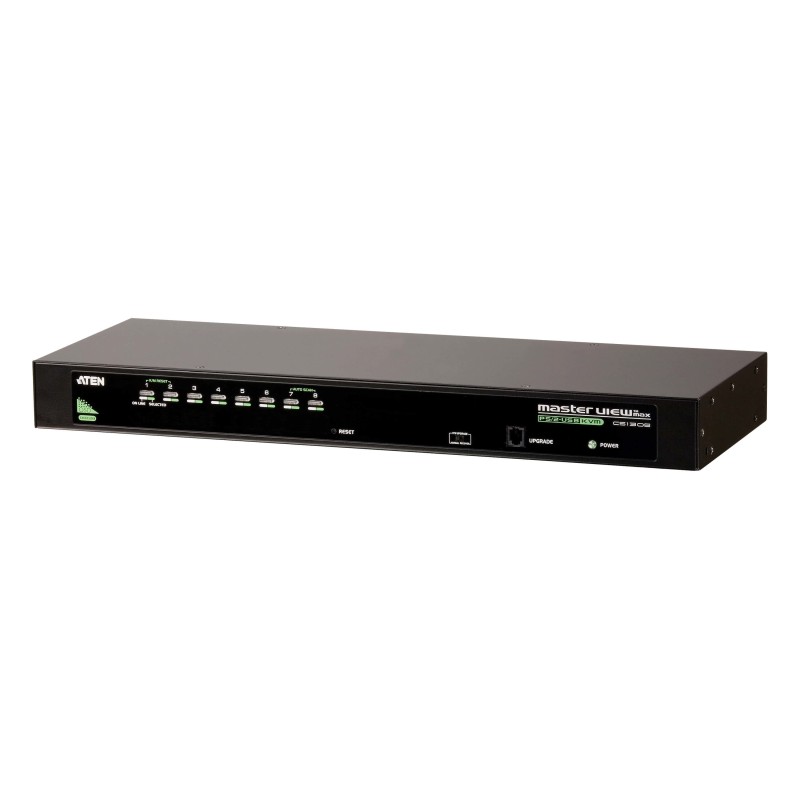

CS1308-AT-G - 784105

Data sheet

Product color

Black

Windows operating systems supported

Yes

VGA (D-Sub) ports quantity

8

Weight

4.17 lbs (1.89 kg)

Harmonized System (HS) code

85176200

Input voltage

5.3 V

HD type

QXGA

Maximum resolution

2048 x 1536 pixels

Width

6.35" (161.3 mm)

Height

1.73" (44 mm)

Depth

17.2" (437.2 mm)

Package weight

5.93 lbs (2.69 kg)

Master (outer) case width

14.8" (375 mm)

Master (outer) case length

22.2" (565 mm)

Master (outer) case height

10.2" (258 mm)

Master (outer) case weight

19.2 lbs (8.7 kg)

Quantity per master (outer) case

3 pc(s)

Package width

4.57" (116 mm)

Package depth

21.3" (540 mm)

Package height

9.17" (233 mm)

Power source

DC

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Hot keys

Yes

Built-in display

No

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Rack capacity

1U

Other operating systems supported

Yes

Housing material

Metal

Power consumption (typical)

5 W

Compliance certificates

RoHS

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Video port type

VGA

Quick installation guide

Yes

Firmware upgradeable

Yes

Master (outer) case net weight

14.8 lbs (6.72 kg)

Rack mounting

Yes

Number of computers controlled

64

Rack mount kit

Yes

Console ports

VGA (D-Sub)

Cascadable

Yes

DDC2B support

Yes

Scan interval

1,255 s

Push button

Yes

Rubber feet

Yes

Specific References

EAN13

4710423775916

MPN

CS1308-AT-G
