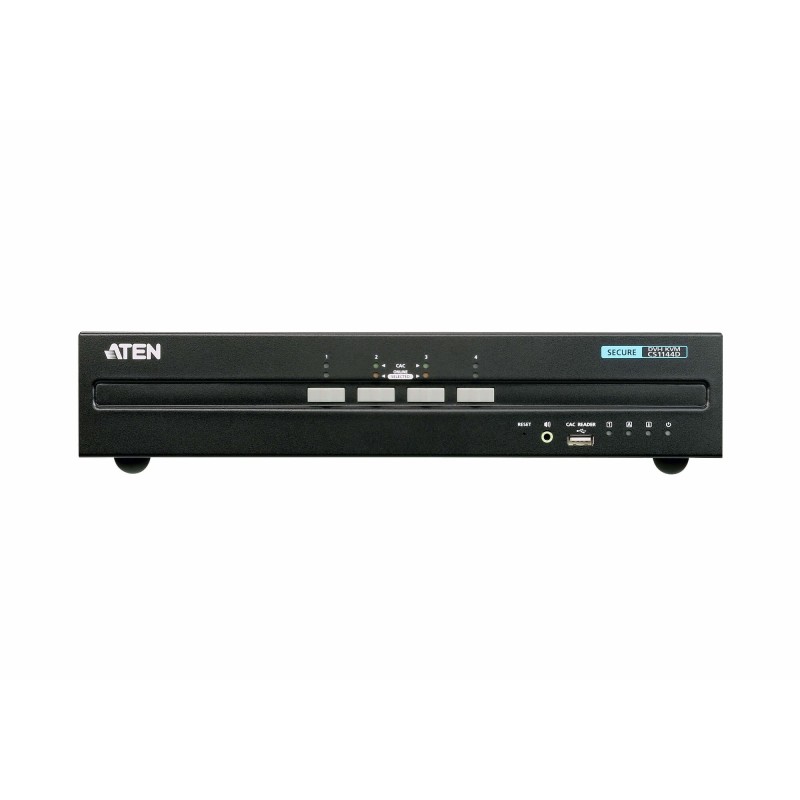

CS1144D-AT-G

Data sheet

Product color

Black

Windows operating systems supported

Yes

Headphone outputs

4

Weight

5.49 lbs (2.49 kg)

Harmonized System (HS) code

85176200

Input voltage

100 - 240 V

HD type

4K Ultra HD

PS/2 ports quantity

2

AC input frequency

50 - 60 Hz

Maximum resolution

3840 x 2160 pixels

Width

6.45" (163.9 mm)

Height

2.58" (65.5 mm)

Depth

13.2" (335 mm)

Package weight

6.55 lbs (2.97 kg)

Master (outer) case width

16.5" (420 mm)

Master (outer) case length

21.9" (555 mm)

Master (outer) case height

10.2" (258 mm)

Master (outer) case weight

22 lbs (9.96 kg)

Quantity per master (outer) case

3 pc(s)

Package width

5.16" (131 mm)

Package depth

21.3" (540 mm)

Package height

9.17" (233 mm)

Power source

AC

Built-in display

No

LED indicators

Yes

USB connector type

USB Type-B

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Cables included

AC

Input current

1 A

Manual

Yes

Housing material

Metal

Power consumption (typical)

7.8 W

Compliance certificates

RoHS

DVI-I ports quantity

10

Keyboard port type

USB

Mouse port type

USB

Video port type

DVI-I

Quick installation guide

Yes

Master (outer) case net weight

16.5 lbs (7.47 kg)

Rack mounting

No

Number of computers controlled

4

USB 2.0 Type-B ports quantity

8

Audio connections

Yes

Video bandwidth

30 Hz

Console ports

DVI-I, USB A

Console USB ports quantity

2

Push button

Yes

Specific References

EAN13

4719264646676

MPN

CS1144D-AT-G
