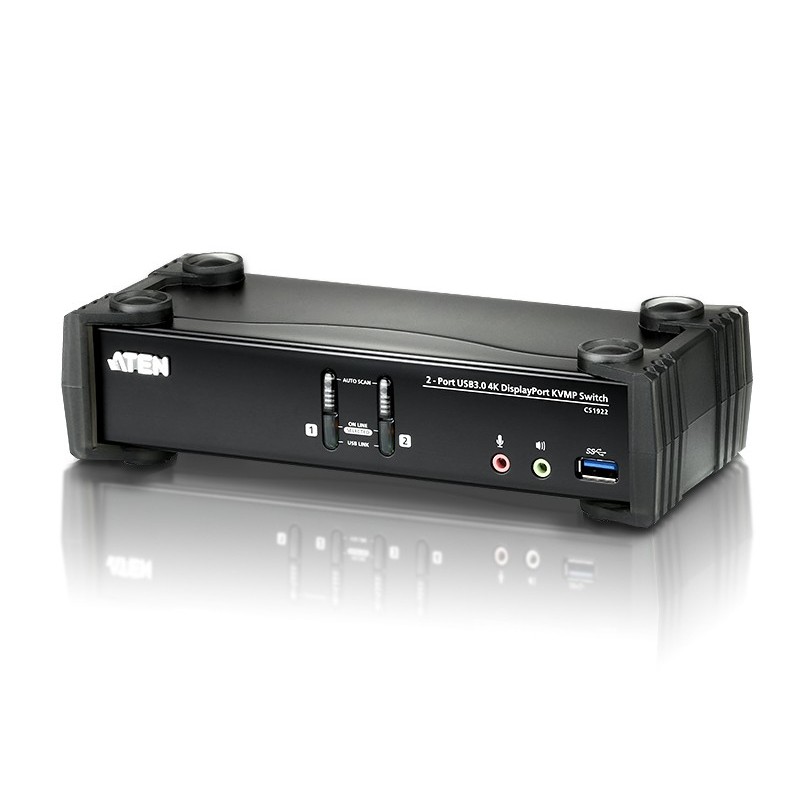

CS1922-AT-G

Data sheet

Product color

Black

Windows operating systems supported

Yes

Headphone outputs

4

DisplayPorts quantity

3

Weight

3.13 lbs (1.42 kg)

Harmonized System (HS) code

85176200

Output voltage

5 V

HD type

4K Ultra HD

Hot-Plug support

Yes

Maximum resolution

4096 x 2160 pixels

Width

3.46" (88 mm)

Height

2.19" (55.5 mm)

USB hub

Yes

Depth

8.27" (210 mm)

Package weight

4.1 lbs (1.86 kg)

Master (outer) case width

11.5" (292 mm)

Master (outer) case length

20.4" (517 mm)

Master (outer) case height

7.64" (194 mm)

Master (outer) case weight

21.6 lbs (9.8 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.94" (100 mm)

Package depth

11.1" (283 mm)

Package height

6.81" (173 mm)

Power source

DC

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Built-in display

No

LED indicators

Operation, USB

USB connector type

USB Type-B

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Cables included

Audio (3.5mm), DisplayPort, USB

USB version

3.2 Gen 1 (3.1 Gen 1)

Manual

Yes

Housing material

Metal, Plastic

Power consumption (typical)

2 W

HDCP

Yes

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Number of microphone inputs

4

Master (outer) case net weight

15.7 lbs (7.1 kg)

External power adapter

Yes

Number of computers controlled

4

Audio connections

Yes

Console ports

3.5mm mic, DisplayPort, USB B

Console USB ports quantity

2

Scan interval

1,99 s

Push button

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

Specific References

EAN13

4719264644764

MPN

CS1922-AT-G
