KL1508AIN-AXA-2XK06RG

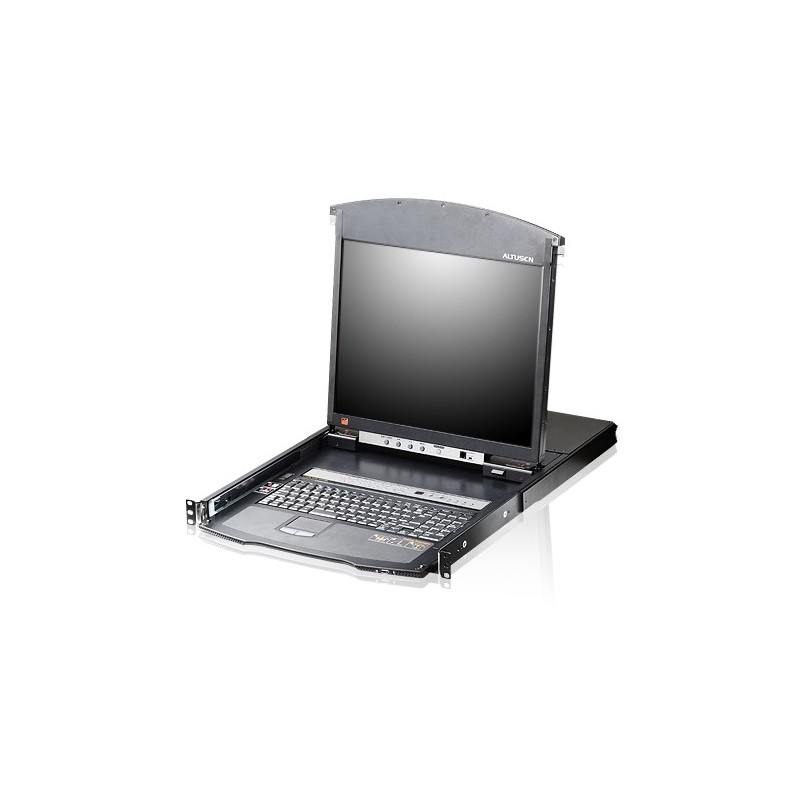

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
Compact, high-density, RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient, wiring configuration, while the use of KVM Adapter Cables to link to the computers, permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.

Enhanced features include a Panel Array Mode™ that displays the video output of up to 8 computers at the same time, and a Message Board that allows logged in users to conveniently and instantly communicate with one other – no matter where in the world they actually are. The KL1508Ai is an ideal solution for your server room management.

ATEN KL1508AiN. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Maximum resolution: 1600 x 1200 pixels, Scan interval: 1,255 s. Product color: Black, Rack capacity: 1U, Keyboard language: Russian. Display: LCD, Display diagonal: 19". Input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 27.5 W

Number of computers controlled	8
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	PS/2, USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity	1
Console USB ports quantity	2
USB connector type	USB Type-A
Ethernet LAN	Yes
Maximum resolution	1600 x 1200 pixels
Automatic switching	Yes
Scan interval	1,255 s
DDC2B support	Yes
Daisy chain	Yes
Rack mounting	Yes
Product color	Black
Rack capacity	1U
LED indicators	Yes
Keyboard language	Russian
Built-in display	Yes
Display	LCD
Display diagonal	19"
On Screen Display (OSD)	Yes
Input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	27.5 W
Windows operating systems supported	Yes
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	27.6" (701.2 mm)
Depth	18.9" (480 mm)
Height	1.73" (44 mm)
Weight	34 lbs (15.4 kg)
Manual	Yes
