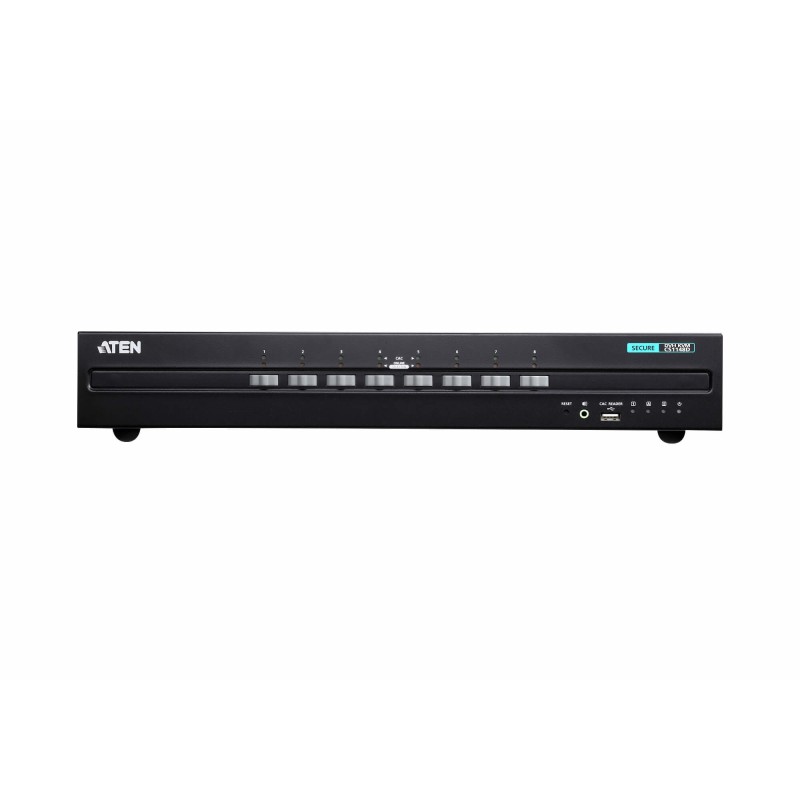

CS1148D-AT-G - CS1148D-AT-X

Data sheet

Product color

Black

Windows operating systems supported

Yes

Headphone outputs

8

Weight

8.16 lbs (3.7 kg)

Harmonized System (HS) code

85176200

Input voltage

100 - 240 V

HD type

4K Ultra HD

PS/2 ports quantity

2

AC input frequency

50 - 60 Hz

Maximum resolution

3840 x 2160 pixels

Width

8.07" (204.9 mm)

Height

2.58" (65.5 mm)

Depth

17" (432.4 mm)

Package weight

9.57 lbs (4.34 kg)

Master (outer) case width

16.8" (427 mm)

Master (outer) case length

20.4" (519 mm)

Master (outer) case height

13.7" (348 mm)

Master (outer) case weight

30.6 lbs (13.9 kg)

Quantity per master (outer) case

3 pc(s)

Package width

5.24" (133 mm)

Package depth

19.6" (499 mm)

Package height

12.8" (324 mm)

Power source

AC

Built-in display

No

LED indicators

Yes

USB connector type

USB Type-B

Cables included

AC

Input current

1 A

Manual

Yes

Housing material

Metal

Power consumption (typical)

17.7 W

Compliance certificates

RoHS

DVI-I ports quantity

16

Keyboard port type

USB

Mouse port type

USB

Video port type

DVI-I

Quick installation guide

Yes

Master (outer) case net weight

24.5 lbs (11.1 kg)

Rack mounting

No

Number of computers controlled

8

USB 2.0 Type-B ports quantity

16

Audio connections

Yes

Video bandwidth

30 Hz

Console ports

3.5mm headphone, DVI-I, PS/2, USB A

Console USB ports quantity

2

Push button

Yes

Specific References

EAN13

4719264646539

MPN

CS1148D-AT-G
