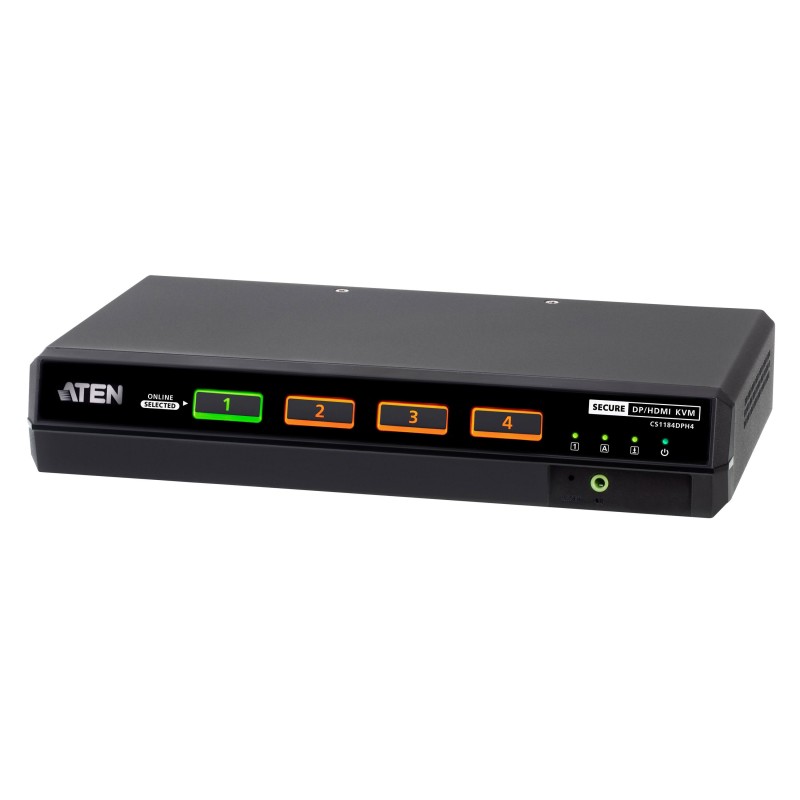

CS1184DPH4-AT-G

ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to connect single or dual displays, providing superior video quality up to 5K (5120 x 2880 @ 60Hz) 1. 5K resolution provides greater screen real estate and sharper detail, allowing users to view multiple classified sessions, monitoring dashboards, or data-intensive applications side by side with uncompromised clarity. This enhanced visual precision helps minimize task-switching and potential errors, improving both operational accuracy and overall productivity in mission-critical or security-conscious workplaces.

To enhance security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 2. With multi–layered security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking & finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

ATEN CS1184DPH4-AT-G. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 5K Ultra HD, Maximum resolution: 5120 x 2880 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 5.65" (143.6 mm), Depth: 9.65" (245 mm), Height: 1.69" (43 mm)

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
Console ports	3.5mm headphone, DisplayPort, HDMI, USB A
HDMI ports quantity	4
DisplayPorts quantity	4
USB 2.0 Type-B ports quantity	4
USB 2.0 Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-B
RJ-11 ports quantity	1
DC-in jack	Yes
HD type	5K Ultra HD
Maximum resolution	5120 x 2880 pixels
Video bandwidth	60 Hz
Maximum refresh rate	144 Hz
Rack mounting	No
Product color	Black
Housing material	Metal
LED indicators	Yes
Push button	Yes
Built-in display	No
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.2 A
Output voltage	12 V
Power consumption (typical)	14.88 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	5.65" (143.6 mm)
Depth	9.65" (245 mm)
Height	1.69" (43 mm)
Weight	2.67 lbs (1.21 kg)
Harmonized System (HS) code	84718000
Country of origin	Taiwan
