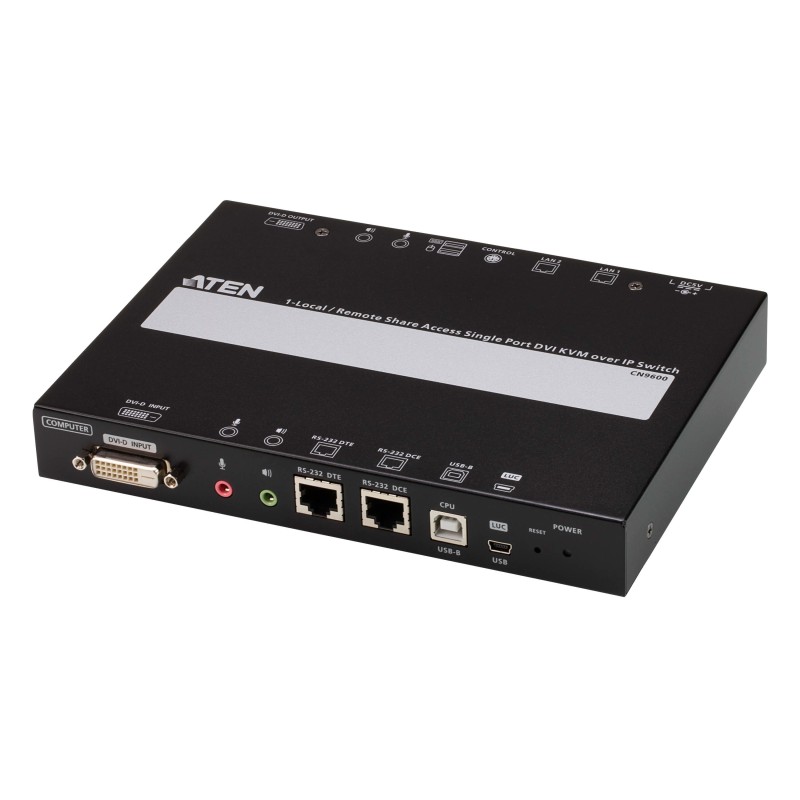

CN9600-AT-G

Data sheet

Product color

Black

Headphone outputs

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Weight

2.73 lbs (1.24 kg)

Harmonized System (HS) code

85176200

Input voltage

5 V

DVI-D ports quantity

2

PS/2 ports quantity

1

Serial ports quantity

2

Maximum resolution

1920 x 1200 pixels

Width

6.1" (154.9 mm)

Height

1.12" (28.5 mm)

Depth

7.87" (200 mm)

Package weight

3.55 lbs (1.61 kg)

Master (outer) case width

13.5" (342 mm)

Master (outer) case length

20.2" (512 mm)

Master (outer) case height

9.13" (232 mm)

Master (outer) case weight

19.2 lbs (8.72 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.86" (98 mm)

Package depth

12.8" (325 mm)

Package height

8.27" (210 mm)

Power source

DC

Built-in display

No

LED indicators

Yes

USB connector type

Mini-USB B, USB Type-A

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Housing material

Metal

Power consumption (typical)

5.55 W

Compliance certificates

RoHS

Keyboard port type

USB

Mouse port type

USB

Video port type

DVI-D

Number of microphone inputs

1

Firmware upgradeable

Yes

Master (outer) case net weight

13.7 lbs (6.2 kg)

USB 2.0 Type-B ports quantity

1

Serial port type

RJ-45

Audio connections

Yes

Video bandwidth

60 Hz

Console ports

3.5mm headphone, DVI-D, USB A

Console USB ports quantity

2

Specific References

EAN13

4719264649271

MPN

CN9600-AT-G
