Description

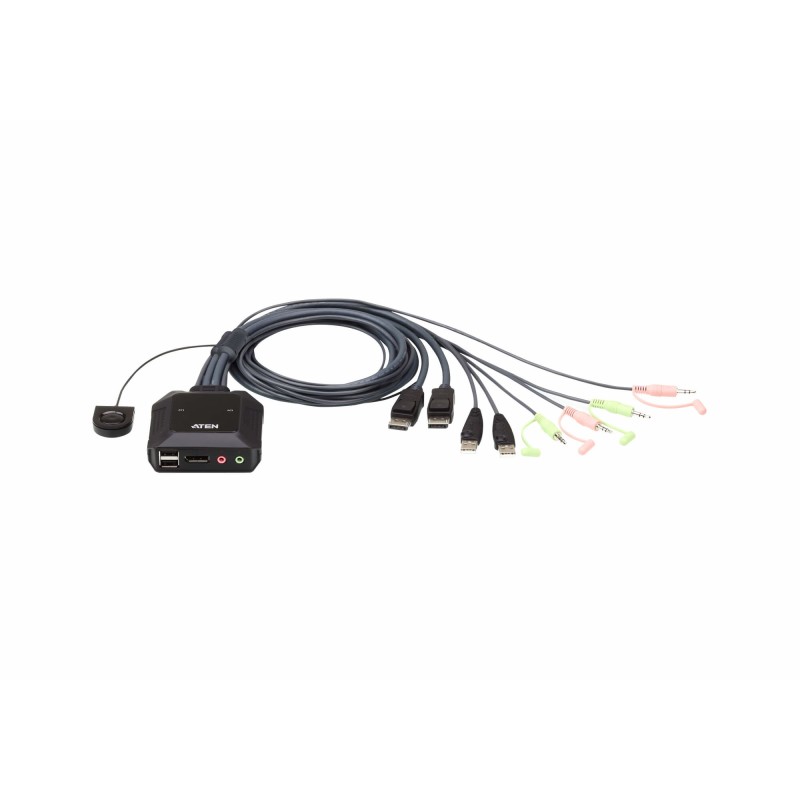

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions
ATEN CS22DP-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Plastic, Cable length: 47.2" (1.2 m). Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.38 W. Sustainability certificates: RoHS, Compliance certificates: RoHS
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions
ATEN CS22DP-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Plastic, Cable length: 47.2" (1.2 m). Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.38 W. Sustainability certificates: RoHS, Compliance certificates: RoHS
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.1 |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB connector type | Micro-USB B, USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| Ethernet LAN | No |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 30 Hz |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Rack mounting | No |
| Product color | Black |
| Housing material | Plastic |
| Wired remote switch | Yes |
| Cable length | 47.2" (1.2 m) |
| Remote switch cable length | 70.9" (1.8 m) |
| LED indicators | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.38 W |
| USB powered | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 3.31" (84.2 mm) |
| Depth | 3.28" (83.4 mm) |
| Height | 1.2" (30.4 mm) |
| Weight | 12.7 oz (360 g) |
| Package width | 2.17" (55 mm) |
| Package depth | 6.1" (155 mm) |
| Package height | 8.86" (225 mm) |
| Package weight | 15.3 oz (435 g) |
| Manual | Yes |
| Master (outer) case net weight | 15.9 lbs (7.2 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 12.9" (328 mm) |
| Master (outer) case length | 15.3" (389 mm) |
| Master (outer) case height | 13" (330 mm) |
| Master (outer) case weight | 20.6 lbs (9.33 kg) |
| Quantity per master (outer) case | 20 pc(s) |
Product Details
22 Items
New
Data sheet
- Product color
- Black
- Windows operating systems supported
- Yes
- USB 2.0 ports quantity
- 2
- Headphone outputs
- 1
- DisplayPorts quantity
- 1
- Ethernet LAN
- No
- Cable length
- 47.2" (1.2 m)
- Weight
- 12.7 oz (360 g)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5 V
- HD type
- 4K Ultra HD
- Hot-Plug support
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 3.31" (84.2 mm)
- Height
- 1.19" (30.4 mm)
- Depth
- 3.28" (83.4 mm)
- Package weight
- 15.3 oz (435 g)
- Master (outer) case width
- 12.9" (328 mm)
- Master (outer) case length
- 15.3" (389 mm)
- Master (outer) case height
- 13" (330 mm)
- Master (outer) case weight
- 20.6 lbs (9.33 kg)
- Quantity per master (outer) case
- 20 pc(s)
- Package width
- 2.17" (55 mm)
- Package depth
- 6.1" (155 mm)
- Package height
- 8.86" (225 mm)
- Power source
- DC
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- Micro-USB B, USB Type-A
- DisplayPort version
- 1.1
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Sustainability certificates
- RoHS
- Manual
- Yes
- Housing material
- Plastic
- USB powered
- Yes
- Power consumption (typical)
- 1.38 W
- Compliance certificates
- RoHS
- HDCP
- Yes
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Number of microphone inputs
- 1
- Master (outer) case net weight
- 15.9 lbs (7.2 kg)
- Rack mounting
- No
- Number of computers controlled
- 2
- Audio connections
- Yes
- Video bandwidth
- 30 Hz
- Console ports
- Console USB ports quantity
- 2
- Wired remote switch
- Yes
- Remote switch cable length
- 70.9" (1.8 m)
Specific References
- UPC
- 672792007408
- EAN13
- 4719264645525
- MPN
- CS22DP-AT
