Description

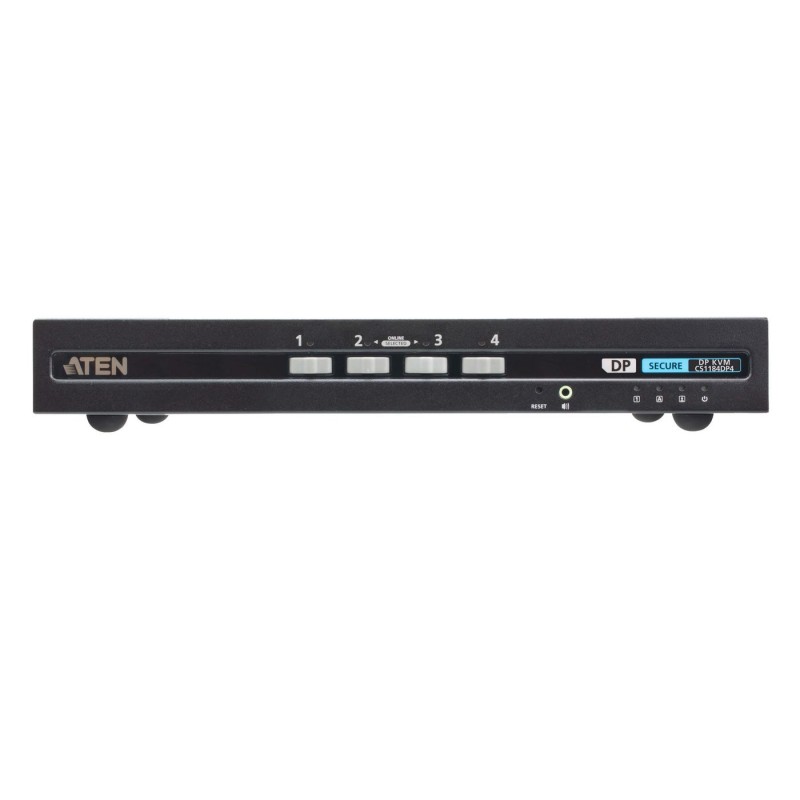

ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1.With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
ATEN CS1184DP4. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.45" (163.9 mm), Depth: 13.2" (335 mm), Height: 1.73" (44 mm)
ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1.With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
ATEN CS1184DP4. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.45" (163.9 mm), Depth: 13.2" (335 mm), Height: 1.73" (44 mm)
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | DisplayPort, USB A |
| DisplayPorts quantity | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 4 |
| RJ-11 ports quantity | 1 |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Product color | Black |
| Housing material | Metal |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Built-in display | No |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 9.1 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 6.45" (163.9 mm) |
| Depth | 13.2" (335 mm) |
| Height | 1.73" (44 mm) |
| Weight | 4.3 lbs (1.95 kg) |
| Package width | 4.57" (116 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 9.17" (233 mm) |
| Package volume | 14583.175999 cm³ |
| Package weight | 5.6 lbs (2.54 kg) |
| Cables included | AC |
| Manual | Yes |
| Master (outer) case net weight | 12.9 lbs (5.85 kg) |
| Master (outer) case width | 14.8" (375 mm) |
| Master (outer) case length | 22.2" (565 mm) |
| Master (outer) case height | 10.2" (258 mm) |
| Master (outer) case weight | 18.2 lbs (8.26 kg) |
| Master (outer) case volume | 54651.513938 cm³ |
| Country of origin | Taiwan |
Product Details
2026-08-19
New
Data sheet
- Product color
- Black
- Headphone outputs
- 4
- DisplayPorts quantity
- 4
- Weight
- 4.3 lbs (1.95 kg)
- Input voltage
- 100 - 240 V
- HD type
- 4K Ultra HD
- AC input frequency
- 50 - 60 Hz
- Maximum resolution
- 3840 x 2160 pixels
- Width
- 6.45" (163.9 mm)
- Height
- 1.73" (44 mm)
- Country of origin
- Taiwan
- Power source type
- AC
- Depth
- 13.2" (335 mm)
- Package weight
- 5.6 lbs (2.54 kg)
- Master (outer) case width
- 14.8" (375 mm)
- Master (outer) case length
- 22.2" (565 mm)
- Master (outer) case height
- 10.2" (258 mm)
- Master (outer) case weight
- 18.2 lbs (8.26 kg)
- Package width
- 4.57" (116 mm)
- Package depth
- 21.3" (540 mm)
- Package height
- 9.17" (233 mm)
- Built-in display
- No
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Cables included
- AC
- Input current
- 1 A
- Manual
- Yes
- Housing material
- Metal
- Power consumption (typical)
- 9.1 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- RJ-11 ports quantity
- 1
- Master (outer) case net weight
- 12.9 lbs (5.85 kg)
- Package volume
- 14583.175999 cm³
- Number of computers controlled
- 4
- Master (outer) case volume
- 54651.513938 cm³
- USB 2.0 Type-B ports quantity
- 4
- Audio connections
- Yes
- Console ports
- DisplayPort, USB A
- Console USB ports quantity
- 2
- Push button
- Yes
- Wired remote switch
- Yes
Specific References
- UPC
- 672792013188
- EAN13
- 0672792013188
- MPN
- CS1184DP4-AT-G
