Description

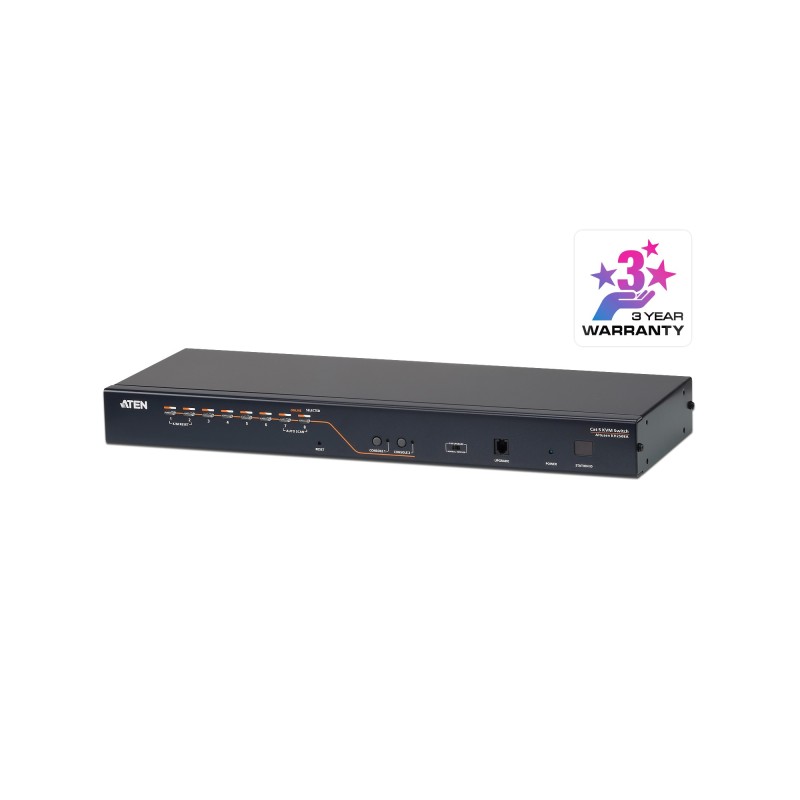

The KH2508A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (two bus). Operators working at up to two consoles can independently and simultaneously take control of up to 8 computers. By daisy chaining up to 15 additional switches, as many as 128 computers can be controlled from the original KVM consoles.
1x KH2508A Cat 5 High-Density KVM Switch
1x Firmware LINS04A2-J11G Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
ATEN KH2508A-AX-G. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 17.2" (437.2 mm), Depth: 6.13" (155.8 mm), Height: 1.73" (44 mm)
1x KH2508A Cat 5 High-Density KVM Switch
1x Firmware LINS04A2-J11G Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
ATEN KH2508A-AX-G. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 17.2" (437.2 mm), Depth: 6.13" (155.8 mm), Height: 1.73" (44 mm)
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 4 |
| USB connector type | USB Type-A |
| PS/2 ports quantity | 4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 8 |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Product color | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 17.2" (437.2 mm) |
| Depth | 6.13" (155.8 mm) |
| Height | 1.73" (44 mm) |
| Weight | 6.97 lbs (3.16 kg) |
| Package width | 4.57" (116 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 9.17" (233 mm) |
| Package weight | 8.22 lbs (3.73 kg) |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 20.9 lbs (9.48 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 16.5" (420 mm) |
| Master (outer) case length | 22.2" (565 mm) |
| Master (outer) case height | 10.2" (258 mm) |
| Master (outer) case weight | 27.6 lbs (12.5 kg) |
| Quantity per master (outer) case | 3 pc(s) |
Product Details
2026-03-09
New
Data sheet
- Product color
- Black
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 8
- Weight
- 6.97 lbs (3.16 kg)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 100 - 240 V
- HD type
- WUXGA
- PS/2 ports quantity
- 4
- AC input frequency
- 50 - 60 Hz
- Maximum resolution
- 1920 x 1200 pixels
- Width
- 17.2" (437.2 mm)
- Height
- 1.73" (44 mm)
- Depth
- 6.13" (155.8 mm)
- Package weight
- 8.22 lbs (3.73 kg)
- Master (outer) case width
- 16.5" (420 mm)
- Master (outer) case length
- 22.2" (565 mm)
- Master (outer) case height
- 10.2" (258 mm)
- Master (outer) case weight
- 27.6 lbs (12.5 kg)
- Quantity per master (outer) case
- 3 pc(s)
- Package width
- 4.57" (116 mm)
- Package depth
- 21.3" (540 mm)
- Package height
- 9.17" (233 mm)
- Power source
- AC
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-A
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Input current
- 1 A
- Manual
- Yes
- Housing material
- Metal
- Keyboard port type
- USB, PS/2
- Mouse port type
- USB, PS/2
- Video port type
- VGA
- Quick installation guide
- Yes
- Master (outer) case net weight
- 20.9 lbs (9.48 kg)
- Number of computers controlled
- 8
- Video bandwidth
- 60 Hz
- Console ports
- PS/2, USB A, VGA (D-Sub)
- Console USB ports quantity
- 4
- Scan interval
- 1,255 s
- Push button
- Yes
Specific References
- EAN13
- 4710423776869
- MPN
- KH2508A-AX-G
