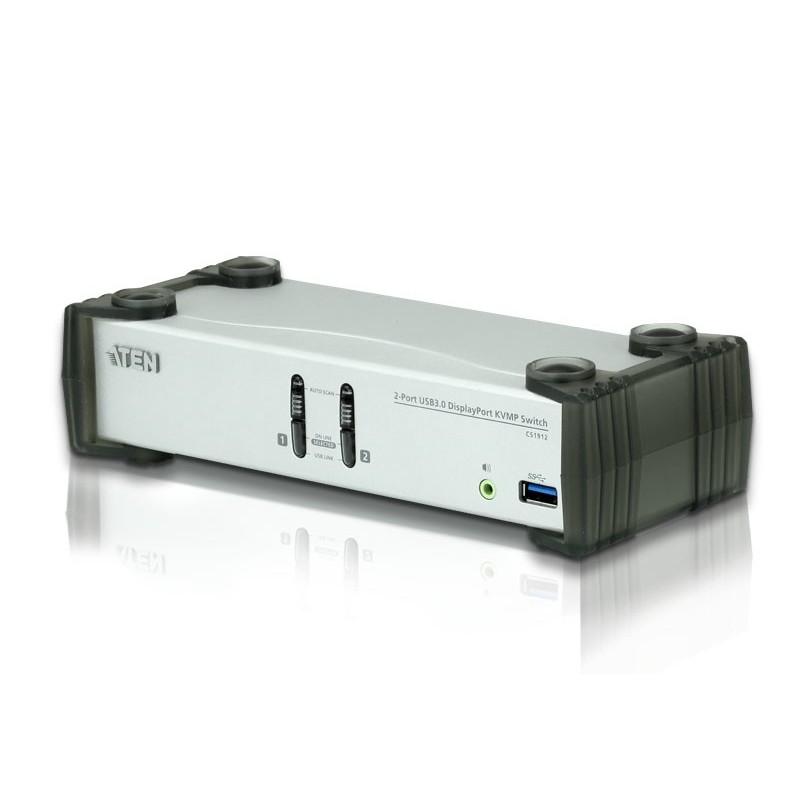

CS1912-AT-G

Data sheet

Product color

Black, Gray

Headphone outputs

4

DisplayPorts quantity

3

Weight

3 lbs (1.36 kg)

Harmonized System (HS) code

85176200

Output voltage

5 V

HD type

4K Ultra HD

Maximum resolution

3840 x 2160 pixels

Width

3.46" (88 mm)

Height

2.19" (55.5 mm)

USB hub

Yes

Depth

8.27" (210 mm)

Package weight

3.9 lbs (1.77 kg)

Master (outer) case width

11.5" (292 mm)

Master (outer) case length

20.4" (517 mm)

Master (outer) case height

7.64" (194 mm)

Master (outer) case weight

20.6 lbs (9.35 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.94" (100 mm)

Package depth

11.1" (283 mm)

Package height

6.81" (173 mm)

Power source

DC

Hot keys

Yes

Built-in display

No

LED indicators

Yes

USB connector type

USB Type-A, USB Type-B

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Housing material

Metal, Plastic

Power consumption (typical)

2 W

Compliance certificates

RoHS

HDCP

Yes

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Master (outer) case net weight

15 lbs (6.8 kg)

External power adapter

Yes

Rack mounting

No

Number of computers controlled

2

Audio connections

Yes

Video bandwidth

30 Hz

Console ports

DisplayPort, USB A

Console USB ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

2

Scan interval

1,99 s

Push button

Yes

Automatic switching

Yes

Specific References

EAN13

4719264645037

MPN

CS1912-AT-G
