Description

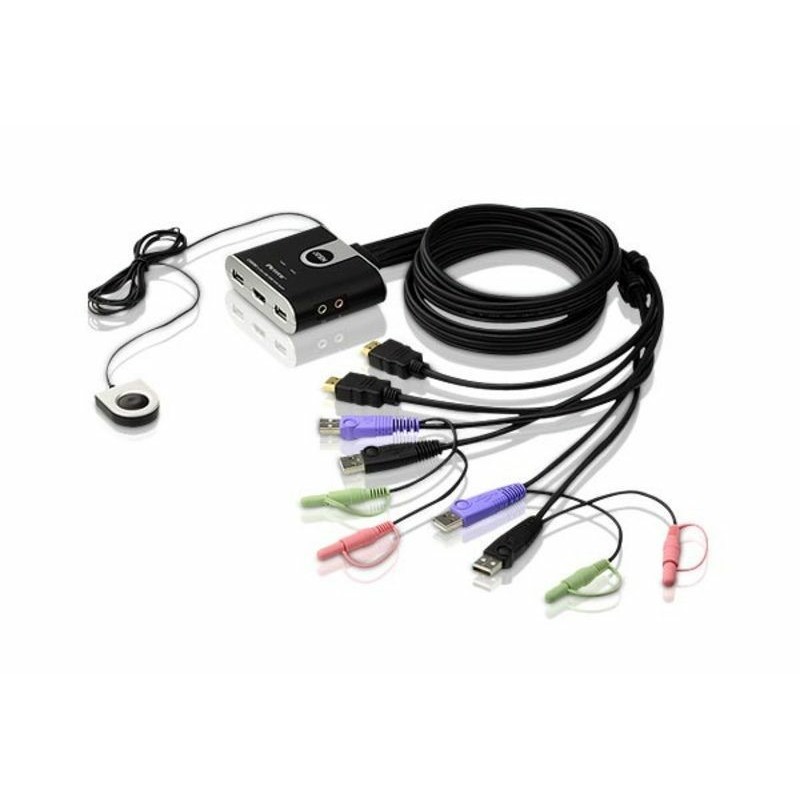

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
ATEN CS692-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 3.24" (82.4 mm), Depth: 2.62" (66.5 mm), Height: 0.992" (25.2 mm)
1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
ATEN CS692-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 3.24" (82.4 mm), Depth: 2.62" (66.5 mm), Height: 0.992" (25.2 mm)
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| HDMI ports quantity | 2 |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| Rack mounting | No |
| Product color | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 3.24" (82.4 mm) |
| Depth | 2.62" (66.5 mm) |
| Height | 0.992" (25.2 mm) |
| Weight | 14.4 oz (409 g) |
| Package width | 2.76" (70 mm) |
| Package depth | 6.42" (163 mm) |
| Package height | 9.25" (235 mm) |
| Package weight | 19.4 oz (550 g) |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 9.02 lbs (4.09 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 15.6" (395 mm) |
| Master (outer) case length | 15.9" (405 mm) |
| Master (outer) case height | 7.17" (182 mm) |
| Master (outer) case weight | 13.5 lbs (6.13 kg) |
| Quantity per master (outer) case | 10 pc(s) |
Product Details
35 Items
New
Data sheet
- Product color
- Black
- HDMI ports quantity
- 2
- Headphone outputs
- 3
- Weight
- 14.4 oz (409 g)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5 V
- HD type
- WUXGA
- Maximum resolution
- 1920 x 1200 pixels
- Width
- 3.24" (82.4 mm)
- Height
- 0.992" (25.2 mm)
- Depth
- 2.62" (66.5 mm)
- Package weight
- 19.4 oz (550 g)
- Master (outer) case width
- 15.6" (395 mm)
- Master (outer) case length
- 15.9" (405 mm)
- Master (outer) case height
- 7.17" (182 mm)
- Master (outer) case weight
- 13.5 lbs (6.13 kg)
- Quantity per master (outer) case
- 10 pc(s)
- Package width
- 2.76" (70 mm)
- Package depth
- 6.42" (163 mm)
- Package height
- 9.25" (235 mm)
- Power source
- DC
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-A
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Manual
- Yes
- Housing material
- Plastic
- Power consumption (typical)
- 0.72 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- Number of microphone inputs
- 3
- Quick installation guide
- Yes
- Master (outer) case net weight
- 9.02 lbs (4.09 kg)
- Rack mounting
- No
- Number of computers controlled
- 2
- Audio connections
- Yes
- Video bandwidth
- 60 Hz
- USB 2.0 Type-A hub ports quantity
- 4
- Console ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
- Console USB ports quantity
- 2
- Scan interval
- 3,5,10,20 s
- Push button
- Yes
Specific References
- UPC
- 672792002182
- EAN13
- 4710423776814
- MPN
- CS692-AT
