Description

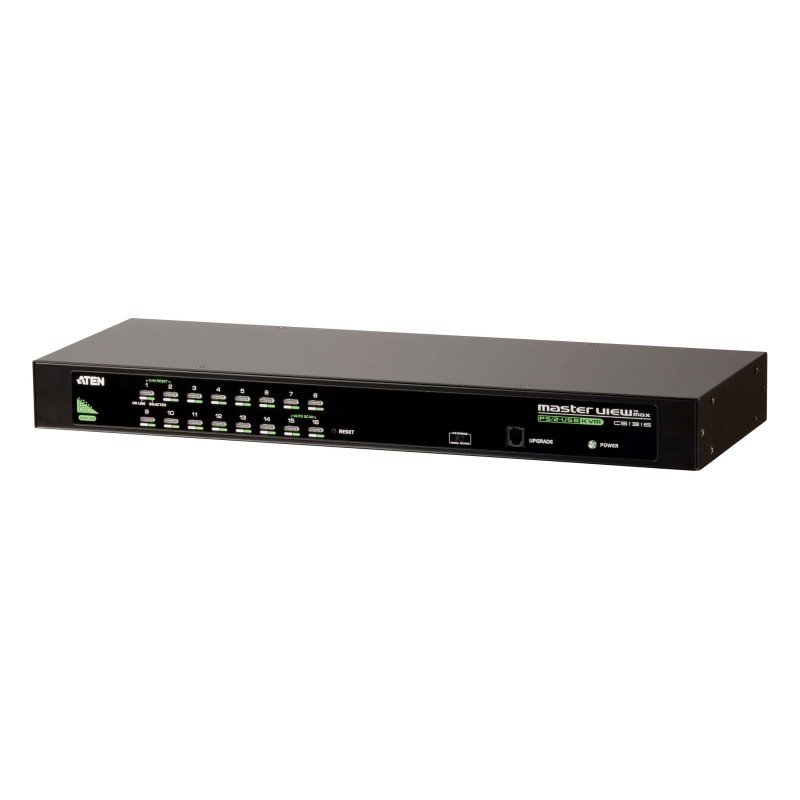

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
ATEN CS1316-AT-G. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product color: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 6.5 W. Width: 17.2" (437.2 mm), Depth: 6.35" (161.3 mm), Height: 1.73" (44 mm)
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
ATEN CS1316-AT-G. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product color: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 6.5 W. Width: 17.2" (437.2 mm), Depth: 6.35" (161.3 mm), Height: 1.73" (44 mm)
| Number of computers controlled | 256 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | VGA (D-Sub) |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Product color | Black |
| Rack capacity | 1U |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.5 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 17.2" (437.2 mm) |
| Depth | 6.35" (161.3 mm) |
| Height | 1.73" (44 mm) |
| Weight | 5.51 lbs (2.5 kg) |
| Package width | 4.57" (116 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 9.17" (233 mm) |
| Package weight | 6.33 lbs (2.87 kg) |
| Cables included | KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Master (outer) case net weight | 16.5 lbs (7.5 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 14.8" (375 mm) |
| Master (outer) case length | 22.2" (565 mm) |
| Master (outer) case height | 10.2" (258 mm) |
| Master (outer) case weight | 20.4 lbs (9.27 kg) |
| Quantity per master (outer) case | 3 pc(s) |
Product Details
2026-02-27
New
Data sheet
- Product color
- Black
- Windows operating systems supported
- Yes
- Weight
- 5.51 lbs (2.5 kg)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5.3 V
- HD type
- QXGA
- Hot-Plug support
- Yes
- Maximum resolution
- 2048 x 1536 pixels
- Width
- 17.2" (437.2 mm)
- Height
- 1.73" (44 mm)
- Depth
- 6.35" (161.3 mm)
- Package weight
- 6.33 lbs (2.87 kg)
- Master (outer) case width
- 14.8" (375 mm)
- Master (outer) case length
- 22.2" (565 mm)
- Master (outer) case height
- 10.2" (258 mm)
- Master (outer) case weight
- 20.4 lbs (9.27 kg)
- Quantity per master (outer) case
- 3 pc(s)
- Package width
- 4.57" (116 mm)
- Package depth
- 21.3" (540 mm)
- Package height
- 9.17" (233 mm)
- Power source
- DC
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Cables included
- KVM
- Rack capacity
- 1U
- Manual
- Yes
- Housing material
- Metal
- Power consumption (typical)
- 6.5 W
- Keyboard port type
- USB, PS/2
- Mouse port type
- USB, PS/2
- Video port type
- VGA
- On Screen Display (OSD)
- Yes
- Quick installation guide
- Yes
- Firmware upgradeable
- Yes
- Master (outer) case net weight
- 16.5 lbs (7.5 kg)
- Rack mounting
- Yes
- Number of computers controlled
- 256
- Console ports
- VGA (D-Sub)
- Cascadable
- Yes
- DDC2B support
- Yes
- Scan interval
- 1,255 s
- Push button
- Yes
Specific References
- EAN13
- 4710423774209
- MPN
- CS1316-AT-G
