Description

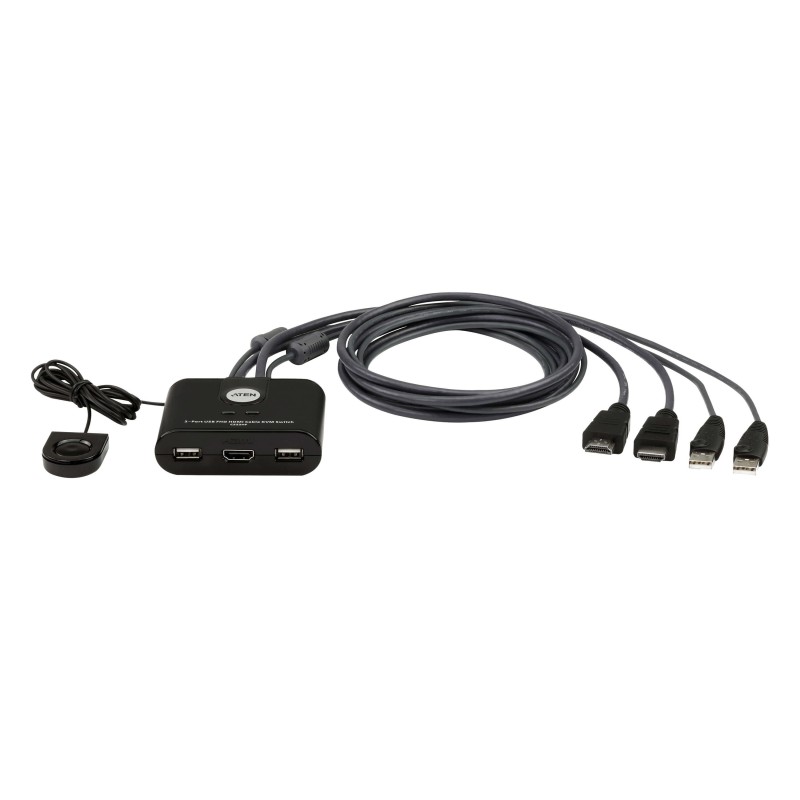

The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.
ATEN CS22HF. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Plastic, Cable length: 47.2" (1.2 m). Input voltage: 5 V, Power consumption (typical): 1.518 W. Width: 2.62" (66.5 mm), Depth: 3.24" (82.4 mm), Height: 0.992" (25.2 mm)
ATEN CS22HF. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Plastic, Cable length: 47.2" (1.2 m). Input voltage: 5 V, Power consumption (typical): 1.518 W. Width: 2.62" (66.5 mm), Depth: 3.24" (82.4 mm), Height: 0.992" (25.2 mm)
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | HDMI, USB A |
| HDMI ports quantity | 1 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| HDCP | Yes |
| Rack mounting | No |
| Product color | Black |
| Housing material | Plastic |
| Cable length | 47.2" (1.2 m) |
| Remote switch cable length | 70.9" (1.8 m) |
| LED indicators | Yes |
| Built-in display | No |
| Input voltage | 5 V |
| Power consumption (typical) | 1.518 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 2.62" (66.5 mm) |
| Depth | 3.24" (82.4 mm) |
| Height | 0.992" (25.2 mm) |
| Weight | 9.17 oz (260 g) |
| Package width | 2.17" (55 mm) |
| Package depth | 6.1" (155 mm) |
| Package height | 8.78" (223 mm) |
| Package volume | 1982.18 cm³ |
| Package weight | 12.7 oz (360 g) |
| Package type | Box |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 12.9" (328 mm) |
| Master (outer) case length | 15.3" (389 mm) |
| Master (outer) case height | 13" (330 mm) |
| Master (outer) case weight | 17.4 lbs (7.9 kg) |
| Master (outer) case volume | 42192.1 cm³ |
| Quantity per master (outer) case | 20 pc(s) |
| Country of origin | Taiwan |
Product Details
26 Items
New
Data sheet
- Product color
- Black
- Windows operating systems supported
- Yes
- Package type
- Box
- HDMI ports quantity
- 1
- Cable length
- 47.2" (1.2 m)
- Weight
- 9.17 oz (260 g)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5 V
- HD type
- Full HD
- Maximum resolution
- 1920 x 1200 pixels
- Width
- 2.62" (66.5 mm)
- Height
- 0.992" (25.2 mm)
- Country of origin
- Taiwan
- Depth
- 3.24" (82.4 mm)
- Package weight
- 12.7 oz (360 g)
- Master (outer) case width
- 12.9" (328 mm)
- Master (outer) case length
- 15.3" (389 mm)
- Master (outer) case height
- 13" (330 mm)
- Master (outer) case weight
- 17.4 lbs (7.9 kg)
- Quantity per master (outer) case
- 20 pc(s)
- Package width
- 2.17" (55 mm)
- Package depth
- 6.1" (155 mm)
- Package height
- 8.78" (223 mm)
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-A
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Housing material
- Plastic
- Power consumption (typical)
- 1.518 W
- HDCP
- Yes
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- Package volume
- 1982.18 cm³
- Rack mounting
- No
- Number of computers controlled
- 2
- Master (outer) case volume
- 42192.1 cm³
- Video bandwidth
- 60 Hz
- Console ports
- HDMI, USB A
- Remote switch cable length
- 70.9" (1.8 m)
- Packaging content
- 1x commutateur KVM câblé FHD HDMI à 2 ports CS22HF
1x manuel d’instructions pour l’utilisateur
Specific References
- UPC
- 672792013119
- EAN13
- 4710469341304
- MPN
- CS22HF-AT
