CS1144H4-AT-G

Name: Aten CS1144H4-AT-G
Brand: Aten
SKU: 162910
Price: 866.9 CHF
Availability: InStock

Brand Aten

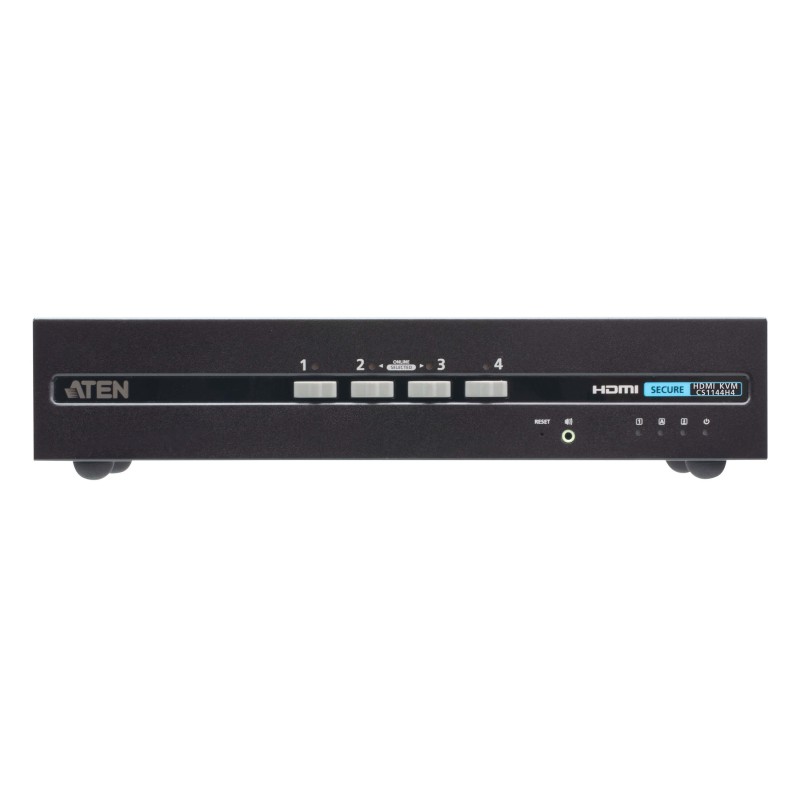

ATEN CS1144H4, 3840 x 2160 pixels, 4K Ultra HD, 7.2 W, Black

CHF866.9

Tax included

CHF801.9 Tax excluded

Delivery in 4-5 days

Quantity

In stock

In stock: 14 Items

Description
Product Details

Description

ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1 With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

ATEN CS1144H4. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product color: Black, Housing material: Metal. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 1 A. Width: 6.45" (163.9 mm), Depth: 13.2" (335 mm), Height: 2.58" (65.5 mm)

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	HDMI, USB A
HDMI ports quantity	8
USB 2.0 Type-B ports quantity	4
Console USB ports quantity	2
Console HDMI ports quantity	2
Audio connections	Yes
Headphone outputs	4
RJ-11 ports quantity	1
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Product color	Black
Housing material	Metal
Wired remote switch	Yes
LED indicators	Yes
Push button	Yes
Built-in display	No
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Power consumption (typical)	7.2 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	6.45" (163.9 mm)
Depth	13.2" (335 mm)
Height	2.58" (65.5 mm)
Weight	5.14 lbs (2.33 kg)
Package width	5.16" (131 mm)
Package depth	21.3" (540 mm)
Package height	9.17" (233 mm)
Package volume	16480.4047212 cm³
Package weight	6.55 lbs (2.97 kg)
Cables included	AC
Manual	Yes
Master (outer) case net weight	15.4 lbs (6.99 kg)
Master (outer) case width	16.5" (420 mm)
Master (outer) case length	21.9" (555 mm)
Master (outer) case height	10.2" (258 mm)
Master (outer) case weight	21.7 lbs (9.83 kg)
Master (outer) case volume	60144.9821784 cm³
Country of origin	Taiwan
