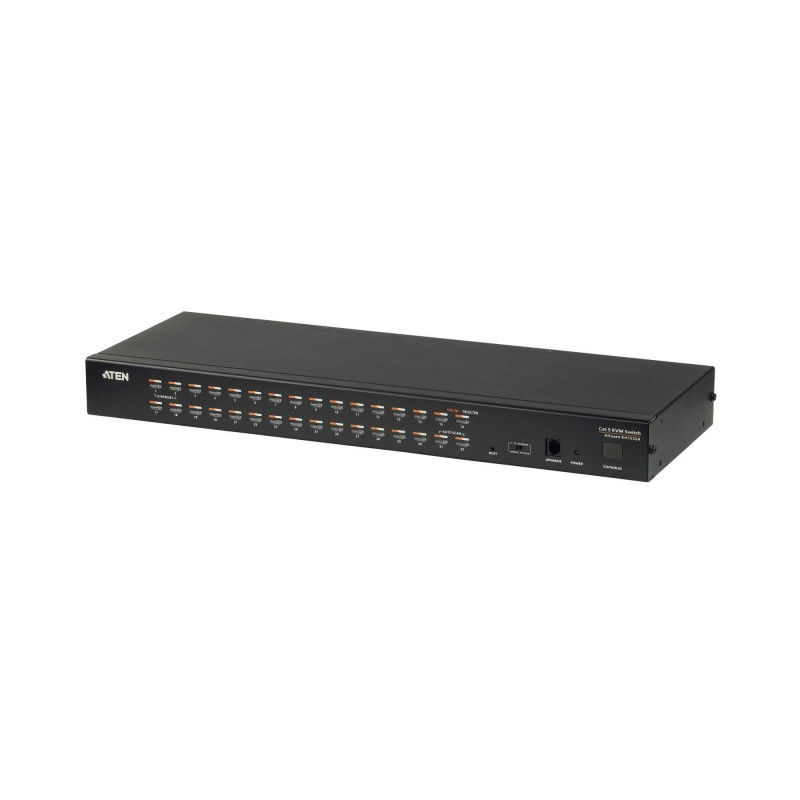

KH1532A-AX-G

Data sheet

Product color

Black

VGA (D-Sub) ports quantity

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

32

Weight

7.19 lbs (3.26 kg)

Harmonized System (HS) code

85176200

Input voltage

100 - 240 V

HD type

Full HD

PS/2 ports quantity

2

AC input frequency

50 - 60 Hz

Maximum resolution

1920 x 1200 pixels

Width

17.2" (437.2 mm)

Height

1.73" (44 mm)

Depth

6.44" (163.7 mm)

Package weight

8.27 lbs (3.75 kg)

Master (outer) case width

16.5" (420 mm)

Master (outer) case length

22.2" (565 mm)

Master (outer) case height

10.2" (258 mm)

Master (outer) case weight

26.2 lbs (11.9 kg)

Quantity per master (outer) case

3 pc(s)

Package width

5.16" (131 mm)

Package depth

21.3" (540 mm)

Package height

9.17" (233 mm)

Power source

AC

Hot keys

Yes

Built-in display

No

LED indicators

Yes

USB connector type

USB Type-A

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Cables included

AC

Input current

1 A

Rack capacity

1U

Number of users

10 user(s)

Manual

Yes

Housing material

Metal

Power consumption (typical)

4.8 W

Compliance certificates

RoHS

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Video port type

VGA

On Screen Display (OSD)

Yes

Firmware upgradeable

Yes

Master (outer) case net weight

21.6 lbs (9.78 kg)

Rack mounting

Yes

Number of computers controlled

32

Rack mount kit

Yes

Console ports

PS/2, USB A, VGA (D-Sub)

Console USB ports quantity

2

Scan interval

1,255 s

Push button

Yes

Daisy chain

Yes

Specific References

EAN13

4719264646096

MPN

KH1532A-AX-G
