Description

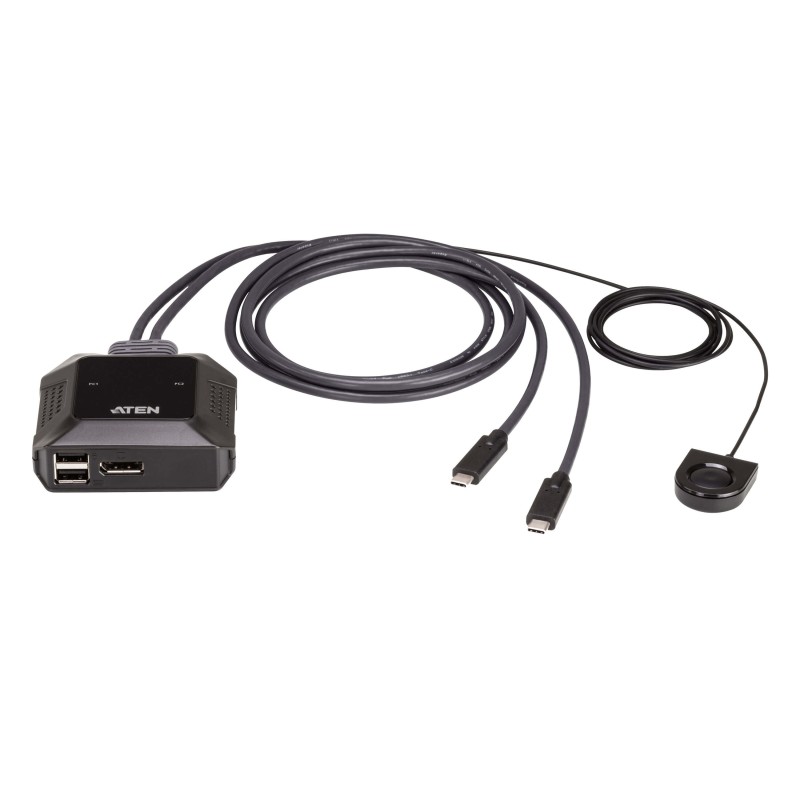

ATEN US3312 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector is developed for easy control and fast switch between two USB-C device sources from a single set of keyboard, mouse, and monitor. With cables coming already mounted on to it, the USB bus-powered US3312 supports two USB and one DisplayPort downstream ports, along with USB peripheral sharing capability. Containing a hook and an external remote port selector, the switch box can be placed anywhere to keep the workstation tidy while allowing users to instantly swap peripherals between the connected PCs and ensuring uninterrupted data transmission from a single user station. It supports resolutions up to True 4K (4096 x 2160 @ 60 Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD quality. The US3312 is a plug-and-play device that not only enhances the efficiency of multi-tasking, but also saves desktop space.
ATEN US3312-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K DCI, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Plastic, Cable length: 47.2" (1.2 m). Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.74 W. Width: 3.31" (84.2 mm), Depth: 3.28" (83.4 mm), Height: 1.18" (29.9 mm)
ATEN US3312-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K DCI, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Plastic, Cable length: 47.2" (1.2 m). Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.74 W. Width: 3.31" (84.2 mm), Depth: 3.28" (83.4 mm), Height: 1.18" (29.9 mm)
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | DisplayPort, USB A |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| USB connector type | USB Type-C |
| HD type | 4K DCI |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Rack mounting | No |
| Product color | Black |
| Housing material | Plastic |
| Wired remote switch | Yes |
| Cable length | 47.2" (1.2 m) |
| Remote switch cable length | 70.9" (1.8 m) |
| LED indicators | Yes |
| Certification | true-4k |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.74 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 3.31" (84.2 mm) |
| Depth | 3.28" (83.4 mm) |
| Height | 1.18" (29.9 mm) |
| Weight | 6.7 oz (190 g) |
| Package weight | 9.52 oz (270 g) |
| Compatibility | VC925,VC965,VC985,VC986,UCE260,UCE60,UE250,UE150,2L-7D02DP,2L-7D03DP,VS194,VE901,VB905,VC986B,2L-7D03DP-1,2L-7D04DP,US3310,US3342,CS52DP |
| Country of origin | China |
Product Details
94 Items
New
Data sheet
- Compatibility
- VC925,VC965,VC985,VC986,UCE260,UCE60,UE250,UE150,2L-7D02DP,2L-7D03DP,VS194,VE901,VB905,VC986B,2L-7D03DP-1,2L-7D04DP,US3310,US3342,CS52DP
- Product color
- Black
- Cable length
- 47.2" (1.2 m)
- Weight
- 6.7 oz (190 g)
- Input voltage
- 5 V
- HD type
- 4K DCI
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 3.31" (84.2 mm)
- Height
- 1.18" (29.9 mm)
- Country of origin
- China
- Power source type
- DC
- Certification
- true-4k
- Depth
- 3.28" (83.4 mm)
- Package weight
- 9.52 oz (270 g)
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-C
- DisplayPort version
- 1.2
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Housing material
- Plastic
- Power consumption (typical)
- 0.74 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Rack mounting
- No
- Number of computers controlled
- 2
- Video bandwidth
- 60 Hz
- Console ports
- DisplayPort, USB A
- Console USB ports quantity
- 2
- Wired remote switch
- Yes
- Remote switch cable length
- 70.9" (1.8 m)
- Packaging content
- 1x 2-Port USB-C 4K DisplayPort KVM-Switch mit Remote-Port-Wähler
1x Gebrauchsanweisung - Console DisplayPorts ports quantity
- 1
Specific References
- EAN13
- 4710469341908
- MPN
- US3312-AT
