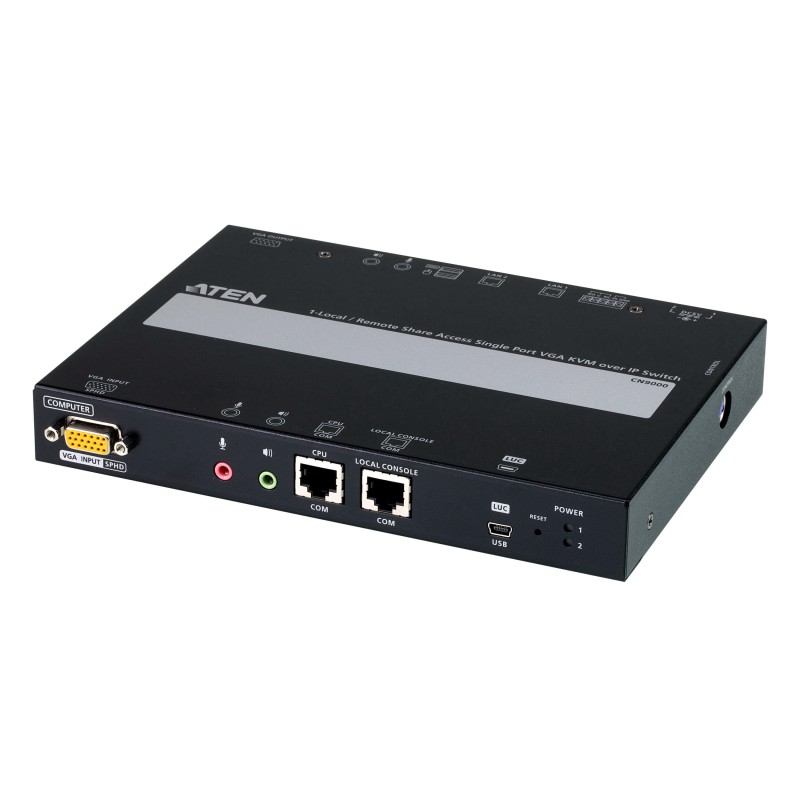

CN9000-AT-G

Data sheet

Product color

Black

VGA (D-Sub) ports quantity

2

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Weight

2.78 lbs (1.26 kg)

Harmonized System (HS) code

85176200

Input voltage

5 V

HD type

Full HD

Serial ports quantity

1

Maximum resolution

1920 x 1200 pixels

Width

7.87" (200 mm)

Height

1.12" (28.5 mm)

Depth

6.07" (154.1 mm)

Package weight

3.7 lbs (1.68 kg)

Master (outer) case width

13.5" (342 mm)

Master (outer) case length

20.2" (512 mm)

Master (outer) case height

9.13" (232 mm)

Master (outer) case weight

19.9 lbs (9.03 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.86" (98 mm)

Package depth

12.8" (325 mm)

Package height

8.27" (210 mm)

Power source

AC

LED indicators

Yes

USB connector type

USB Type-A

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

Housing material

Metal

Power consumption (typical)

7.46 W

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Video port type

VGA

Master (outer) case net weight

13.9 lbs (6.3 kg)

Rack mounting

No

Number of computers controlled

1

Serial port type

RS-232

Audio connections

Yes

Console ports

Console USB ports quantity

2

Specific References

EAN13

4710469340680

MPN

CN9000-AT-G
