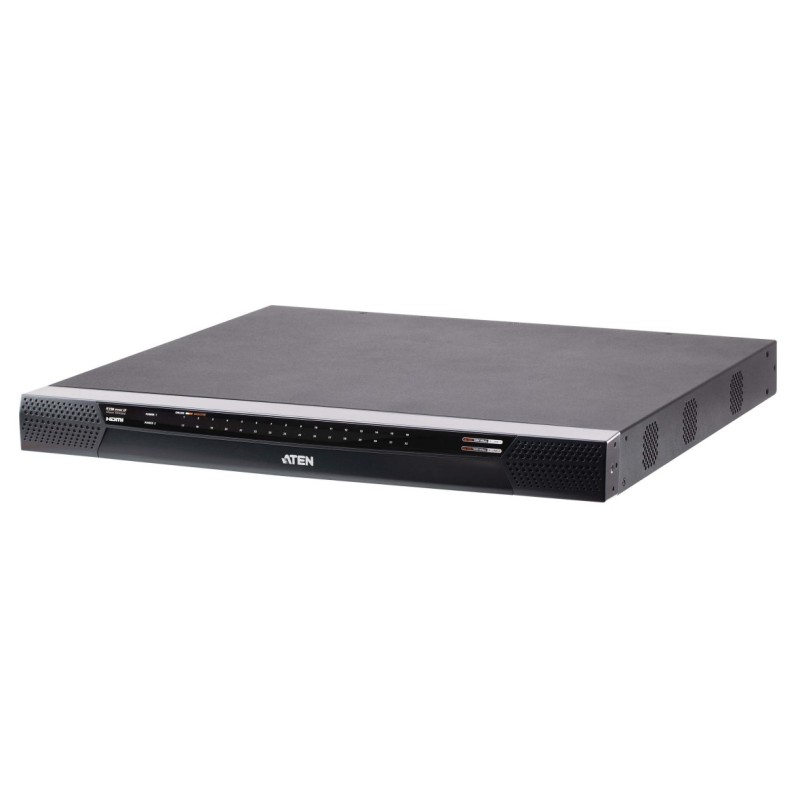

KN2132VB-AX-G

Data sheet

Product color

Metallic

VGA (D-Sub) ports quantity

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Weight

12.5 lbs (5.69 kg)

Input voltage

100-240 V

DVI-D ports quantity

1

AC input frequency

50 - 60 Hz

Maximum resolution

1920 x 1200 pixels

Width

17.1" (433.6 mm)

Height

1.73" (44 mm)

Depth

16.2" (412.1 mm)

Hot keys

No

Built-in display

No

LED indicators

Link, Power

USB connector type

Mini-USB

DC-in jack

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Input current

1 A

Rack capacity

1U

Number of users

3 user(s)

Housing material

Metal

Cabling technology

10/100/1000Base-T(X)

Power consumption (typical)

43.23 W

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Video port type

DVI-D

Security algorithms

FIPS 140-2

Number of microphone inputs

1

Rack mounting

Yes

Number of computers controlled

32

Audio connections

Yes

Video bandwidth

60 Hz

USB 2.0 Type-A hub ports quantity

5

Console ports

DVI-D, USB A, VGA (D-Sub)

Console USB ports quantity

1

Scan interval

255 s

Push button

Yes

Console RJ-45 ports quantity

2

Specific References

EAN13

4710469342202

MPN

KN2132VB-AX-G
