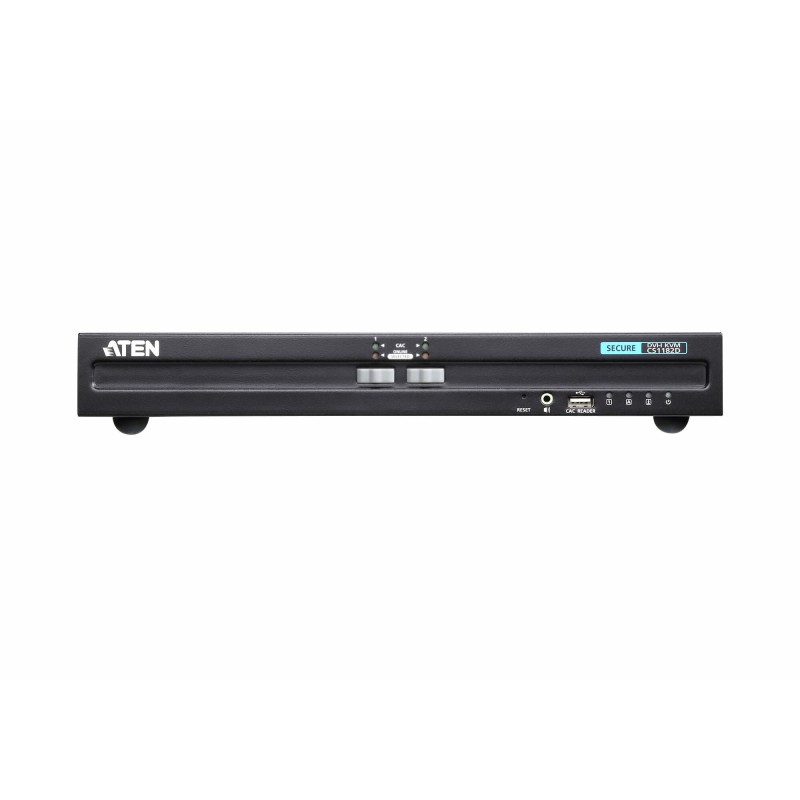

CS1182D-AT-G - CS1182D-AT-G

Data sheet

Product color

Black

Windows operating systems supported

Yes

Headphone outputs

3

Weight

4.41 lbs (2 kg)

Harmonized System (HS) code

85176200

Input voltage

100 - 240 V

HD type

4K Ultra HD

AC input frequency

50 - 60 Hz

Maximum resolution

3840 x 2160 pixels

Width

13.2" (335 mm)

Height

1.73" (44 mm)

Depth

6.47" (164.3 mm)

Package weight

5.53 lbs (2.51 kg)

Master (outer) case width

14.8" (375 mm)

Master (outer) case length

22.2" (565 mm)

Master (outer) case height

10.2" (258 mm)

Master (outer) case weight

18.7 lbs (8.47 kg)

Quantity per master (outer) case

3 pc(s)

Package width

4.57" (116 mm)

Package depth

21.3" (540 mm)

Package height

9.17" (233 mm)

Power source

AC

Built-in display

No

LED indicators

Yes

USB connector type

USB Type-B

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Cables included

AC

Input current

1 A

Manual

Yes

Housing material

Metal

Power consumption (typical)

4.4 W

Compliance certificates

RoHS

DVI-I ports quantity

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DVI-I

Quick installation guide

Yes

Master (outer) case net weight

13.2 lbs (6 kg)

Number of computers controlled

2

USB 2.0 Type-B ports quantity

4

Audio connections

Yes

Video bandwidth

30 Hz

Console ports

3.5mm headphone, DVI-I, PS/2, USB A

Console USB ports quantity

2

Push button

Yes

Specific References

EAN13

4719264646515

MPN

CS1182D-AT-G
