CE824-AT-G

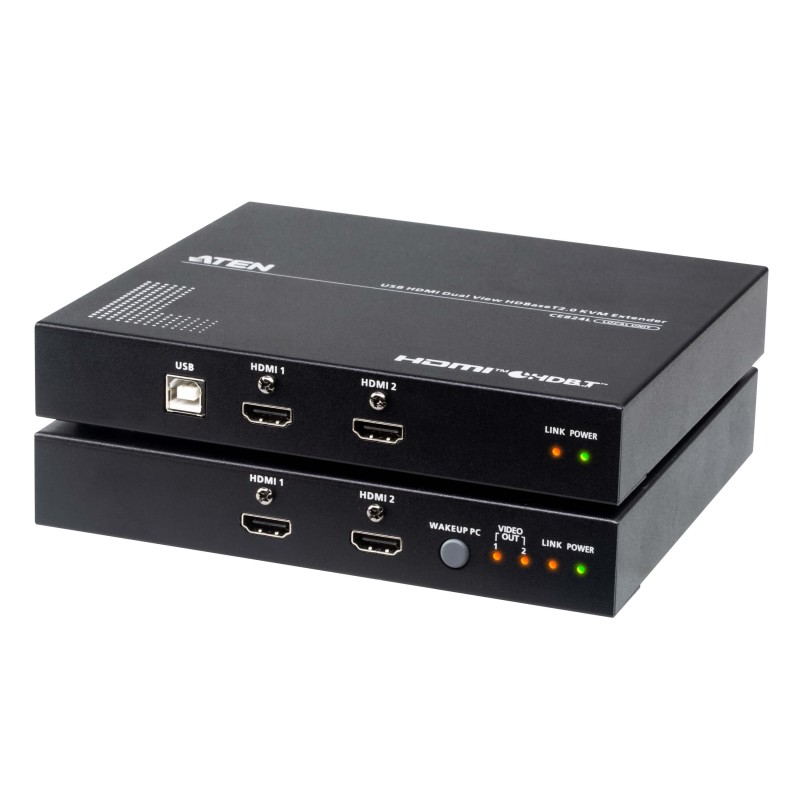

ATEN CE824, Transmitter & receiver, Wired, 5905.5" (150 m), Cat6, Cat6a, 4096 x 2160 pixels, Push-buttons
Description
ATEN CE824 adopts HDBaseT 2.0 technology to transmit uncompressed HDMI video, stereo audio, USB, and RS-232 signals while supporting up to 4096 x 2160 @ 30Hz (4:4:4) on a single display / 1080p on dual displays across 100 m over a single Cat 6 / 6A cable (ATEN 2L-29330 recommended), allowing access to a distant computer for KVM control from the remote console. With Long Reach Mode enabled, the CE824 can extend 1080p HDMI source along with other signals up to 150 m.* The ease of cabling installation plus the rack mount compatibility assure a more efficient system setup. The CE824 serves as an ideal solution forapplications that require high-quality multi-signal extension and KVM control across long distances – such as control centers, banking and finance sectors, industrial warehouses, and extended workstations.
ATEN CE824. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 5905.5" (150 m). Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. Power consumption (transmitter) (max): 5.98 W, Power consumption (receiver) (max): 10.32 W. Transmitter width: 6.14" (15.6 cm), Transmitter depth: 6.85" (17.4 cm), Transmitter height: 1.13" (2.88 cm)
ATEN CE824. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 5905.5" (150 m). Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. Power consumption (transmitter) (max): 5.98 W, Power consumption (receiver) (max): 10.32 W. Transmitter width: 6.14" (15.6 cm), Transmitter depth: 6.85" (17.4 cm), Transmitter height: 1.13" (2.88 cm)
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 5905.5" (150 m) |
| Cable types supported | Cat6, Cat6a |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| KVM port selection | Push-buttons |
| Product color | Black |
| Material | Metal |
| LED indicators | Power, Link |
| Electrostatic Discharge (ESD) protection | Yes |
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Transmitter USB Type-B ports quantity | 1 |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video ports quantity | 2 |
| Receiver USB Type-A ports quantity | 4 |
| RS-232 ports | 2 |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Power consumption (transmitter) (max) | 5.98 W |
| Power consumption (receiver) (max) | 10.32 W |
| DC-in jack | Yes |
| Transmitter width | 6.14" (15.6 cm) |
| Transmitter depth | 6.85" (17.4 cm) |
| Transmitter height | 1.13" (2.88 cm) |
| Transmitter weight | 27.9 oz (790 g) |
| Receiver width | 6.14" (15.6 cm) |
| Receiver depth | 1.13" (2.88 cm) |
| Receiver height | 6.85" (17.4 cm) |
| Receiver weight | 28.9 oz (820 g) |
| Package width | 5.16" (131 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 9.17" (233 mm) |
| Package weight | 7.67 lbs (3.48 kg) |
| AC adapter included | Yes |
| Cables included | HDMI, Audio, USB Type-A to USB Type-B |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| HDCP | Yes |
| Extended display identification data (EDID) | Yes |
| Weight | 6.42 lbs (2.91 kg) |
| Package volume | 16480.404716544 cm³ |
| Country of origin | Taiwan |
| Master (outer) case volume | 21011.100171264 cm³ |
| Master (outer) case net weight | 6.42 lbs (2.91 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 9.72" (247 mm) |
| Master (outer) case length | 21.9" (556 mm) |
| Master (outer) case height | 6.02" (153 mm) |
| Master (outer) case weight | 8.55 lbs (3.88 kg) |
Product Details
2026-06-03
New
Data sheet
- Type
- Transmitter & receiver
- Product color
- Black
- Connectivity technology
- Wired
- Weight
- 6.42 lbs (2.91 kg)
- Harmonized System (HS) code
- 85176200
- Country of origin
- Taiwan
- Package weight
- 7.67 lbs (3.48 kg)
- Material
- Metal
- Master (outer) case width
- 9.72" (247 mm)
- Master (outer) case length
- 21.9" (556 mm)
- Master (outer) case height
- 6.02" (153 mm)
- Master (outer) case weight
- 8.55 lbs (3.88 kg)
- Package width
- 5.16" (131 mm)
- Package depth
- 21.3" (540 mm)
- Package height
- 9.17" (233 mm)
- LED indicators
- Power, Link
- DC-in jack
- Yes
- Maximum digital resolution
- 4096 x 2160 pixels
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Cables included
- HDMI, Audio, USB Type-A to USB Type-B
- Manual
- Yes
- Receiver weight
- 28.9 oz (820 g)
- HDCP
- Yes
- Maximum transfer distance
- 5905.5" (150 m)
- Master (outer) case net weight
- 6.42 lbs (2.91 kg)
- RJ-45 ports quantity
- 2
- Mounting bracket(s) included
- Yes
- Cable types supported
- Cat6, Cat6a
- Package volume
- 16480.404716544 cm³
- Extended display identification data (EDID)
- Yes
- Rack mounting
- Yes
- Master (outer) case volume
- 21011.100171264 cm³
- Transmitter video port type
- HDMI
- Transmitter local video port type
- HDMI
- Transmitter width
- 6.14" (15.6 cm)
- Transmitter depth
- 6.85" (17.4 cm)
- Transmitter height
- 1.13" (2.88 cm)
- Transmitter weight
- 27.9 oz (790 g)
- Receiver local video port type
- HDMI
- Receiver local keyboard/mouse port type
- USB
- Receiver local video ports quantity
- 2
- PC Audio in
- Yes
- PC Audio out
- Yes
- Power consumption (transmitter) (max)
- 5.98 W
- Receiver width
- 6.14" (15.6 cm)
- Receiver depth
- 1.13" (2.88 cm)
- Receiver height
- 6.85" (17.4 cm)
- RS-232 ports
- 2
- Power consumption (receiver) (max)
- 10.32 W
- Transmitter local video port
- Yes
- KVM port selection
- Push-buttons
- Electrostatic Discharge (ESD) protection
- Yes
- Transmitter USB Type-B ports quantity
- 1
- Receiver USB Type-A ports quantity
- 4
Specific References
- MPN
- CE824-AT-G
