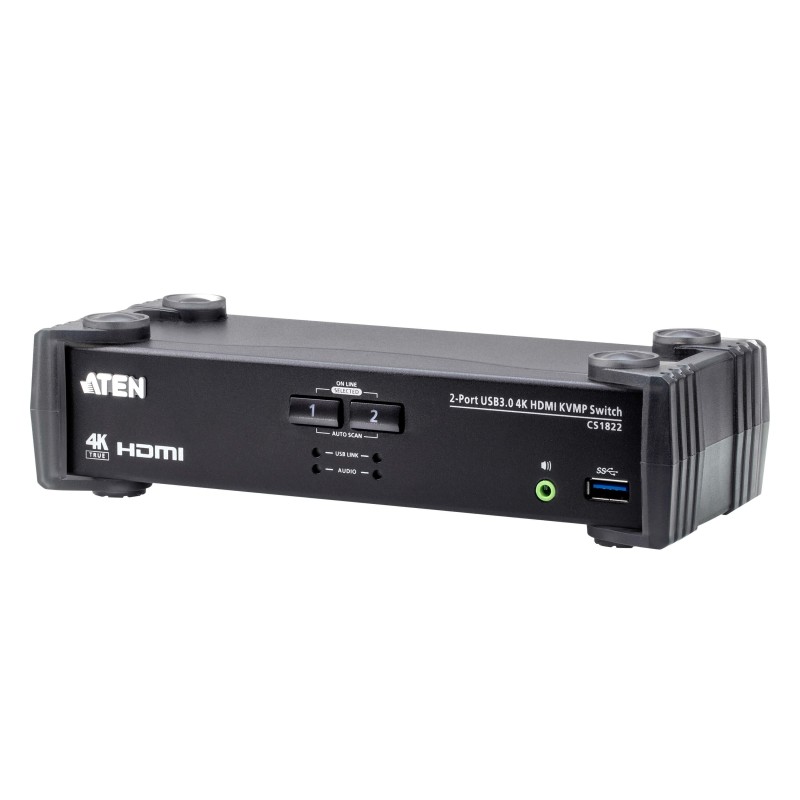

CS1822-AT-G

Data sheet

Product color

Black

Windows operating systems supported

Yes

HDMI ports quantity

2

Headphone outputs

3

Weight

3.06 lbs (1.39 kg)

Harmonized System (HS) code

85176200

Input voltage

5 V

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Width

8.27" (210 mm)

Height

2.19" (55.5 mm)

USB hub

Yes

Depth

3.46" (88 mm)

Package weight

4.03 lbs (1.83 kg)

Master (outer) case width

11.5" (292 mm)

Master (outer) case length

20.4" (517 mm)

Master (outer) case height

7.64" (194 mm)

Master (outer) case weight

21.2 lbs (9.6 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.94" (100 mm)

Package depth

11.1" (283 mm)

Package height

6.81" (173 mm)

Power source

DC

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Hot keys

Yes

Built-in display

No

LED indicators

Yes

USB connector type

USB Type-A, USB Type-B

DC-in jack

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

Manual

Yes

Housing material

Metal, Plastic

Power consumption (typical)

1.78 W

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

Number of microphone inputs

1

Quick installation guide

Yes

Master (outer) case net weight

15.3 lbs (6.95 kg)

Number of computers controlled

2

Audio connections

Yes

Video bandwidth

60 Hz

Console ports

3.5mm headphone, HDMI, USB A

Console USB ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

2

Scan interval

1,5,99 s

Push button

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

Specific References

EAN13

4719264649417

MPN

CS1822-AT-G
