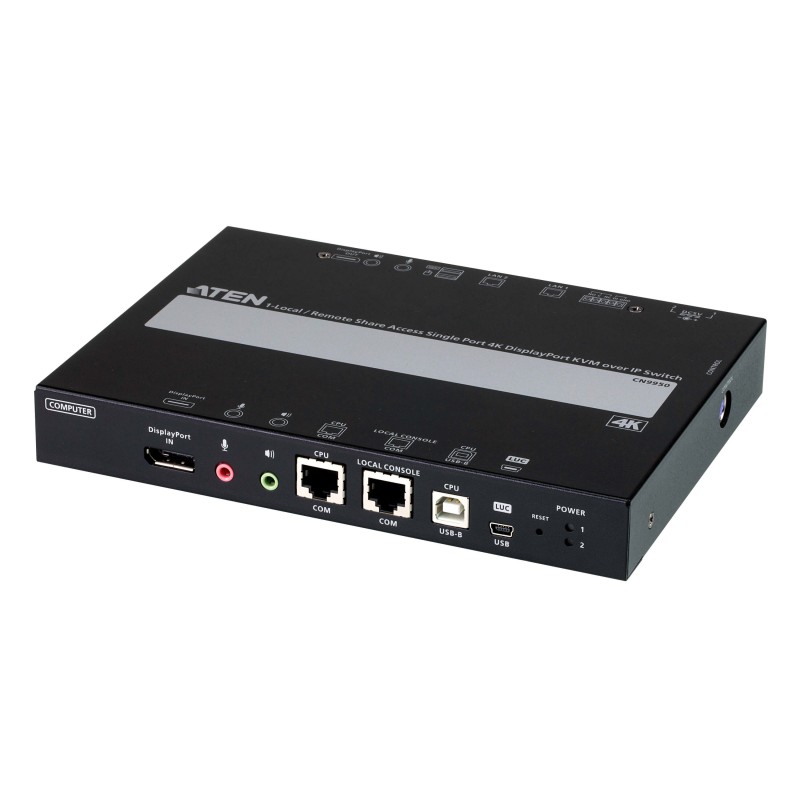

CN9950-AT-G

Data sheet

Product color

Black

Headphone outputs

2

DisplayPorts quantity

2

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Weight

2.76 lbs (1.25 kg)

Harmonized System (HS) code

85176200

Input voltage

5 V

HD type

4K Ultra HD

PS/2 ports quantity

1

Serial ports quantity

2

Maximum resolution

4096 x 2160 pixels

Width

5.88" (149.3 mm)

Height

1.12" (28.5 mm)

Depth

7.87" (200 mm)

Package weight

3.68 lbs (1.67 kg)

Master (outer) case width

13.5" (342 mm)

Master (outer) case length

20.2" (512 mm)

Master (outer) case height

9.13" (232 mm)

Master (outer) case weight

19.8 lbs (8.98 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.86" (98 mm)

Package depth

12.8" (325 mm)

Package height

8.27" (210 mm)

Power source

DC

Built-in display

No

LED indicators

Yes

USB connector type

Mini-USB B

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Cables included

DisplayPort, USB, USB Type-A to USB Type-B

Manual

Yes

Housing material

Metal

Power consumption (typical)

9.76 W

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Number of microphone inputs

2

Master (outer) case net weight

13.8 lbs (6.25 kg)

USB 2.0 Type-B ports quantity

1

Serial port type

RJ-45

Audio connections

Yes

Video bandwidth

30 Hz

Console ports

Console USB ports quantity

2

Specific References

EAN13

4710469340666

MPN

CN9950-AT-G
