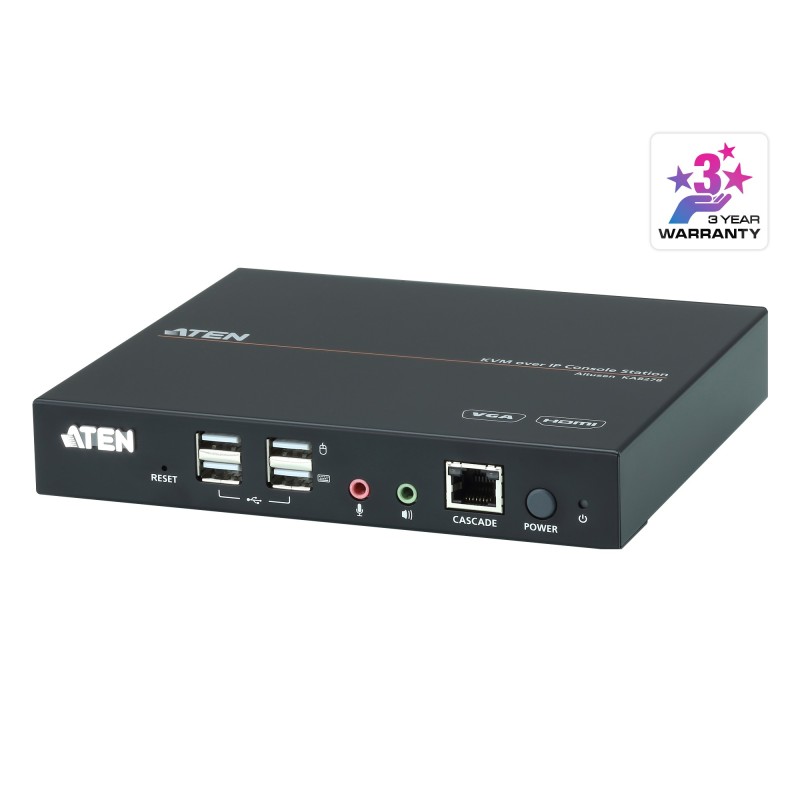

KA8278-AX-G - KA8278-AX-G
ATEN KA8278-AX-G, 1920 x 1200 pixels, Ethernet LAN, Full HD+, Rack mounting, 6.53 W, Black
Description
The KVM over IP Console Station KA8278 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
1x KA8278 VGA/HDMI KVM over IP Console Station
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x Mounting Kit
4x Foot Pad
1x User Instructions
ATEN KA8278-AX-G. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/VGA. HD type: Full HD+, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, LED indicators: Power. Power source: DC, Input voltage: 5 V, Power consumption (typical): 6.53 W. Compliance certificates: RoHS
1x KA8278 VGA/HDMI KVM over IP Console Station
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x Mounting Kit
4x Foot Pad
1x User Instructions
ATEN KA8278-AX-G. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/VGA. HD type: Full HD+, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, LED indicators: Power. Power source: DC, Input voltage: 5 V, Power consumption (typical): 6.53 W. Compliance certificates: RoHS
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/VGA |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB connector type | USB Type-A |
| Serial port type | DE-9 (DB-9) |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HD type | Full HD+ |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Rack mounting | Yes |
| Product color | Black |
| Housing material | Metal |
| LED indicators | Power |
| Push button | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 6.53 W |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 6.12" (155.4 mm) |
| Depth | 6.86" (174.2 mm) |
| Height | 1.13" (28.8 mm) |
| Weight | 2.87 lbs (1.3 kg) |
| Package width | 3.86" (98 mm) |
| Package depth | 12.8" (325 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 3.26 lbs (1.48 kg) |
| Cables included | AC |
| Manual | Yes |
| AC adapter included | Yes |
| Master (outer) case net weight | 14.3 lbs (6.5 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 13.5" (342 mm) |
| Master (outer) case length | 20.2" (512 mm) |
| Master (outer) case height | 9.13" (232 mm) |
| Master (outer) case weight | 17.8 lbs (8.06 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
KA8278-AX-G
2026-06-17
New
Data sheet
- Product color
- Black
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- VGA (D-Sub) ports quantity
- 1
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Weight
- 2.87 lbs (1.3 kg)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5 V
- HD type
- Full HD+
- Maximum resolution
- 1920 x 1200 pixels
- Width
- 6.12" (155.4 mm)
- Height
- 1.13" (28.8 mm)
- Depth
- 6.86" (174.2 mm)
- Package weight
- 3.26 lbs (1.48 kg)
- Master (outer) case width
- 13.5" (342 mm)
- Master (outer) case length
- 20.2" (512 mm)
- Master (outer) case height
- 9.13" (232 mm)
- Master (outer) case weight
- 17.8 lbs (8.06 kg)
- Quantity per master (outer) case
- 5 pc(s)
- Package width
- 3.86" (98 mm)
- Package depth
- 12.8" (325 mm)
- Package height
- 8.27" (210 mm)
- Power source
- DC
- Built-in display
- No
- LED indicators
- Power
- USB connector type
- USB Type-A
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Cables included
- AC
- Manual
- Yes
- Housing material
- Metal
- Power consumption (typical)
- 6.53 W
- Compliance certificates
- RoHS
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI/VGA
- Number of microphone inputs
- 1
- Master (outer) case net weight
- 14.3 lbs (6.5 kg)
- Rack mounting
- Yes
- Serial port type
- DE-9 (DB-9)
- Audio connections
- Yes
- Video bandwidth
- 60 Hz
- Push button
- Yes
Specific References
- EAN13
- 4719264646997
- MPN
- KA8278-AX-G
