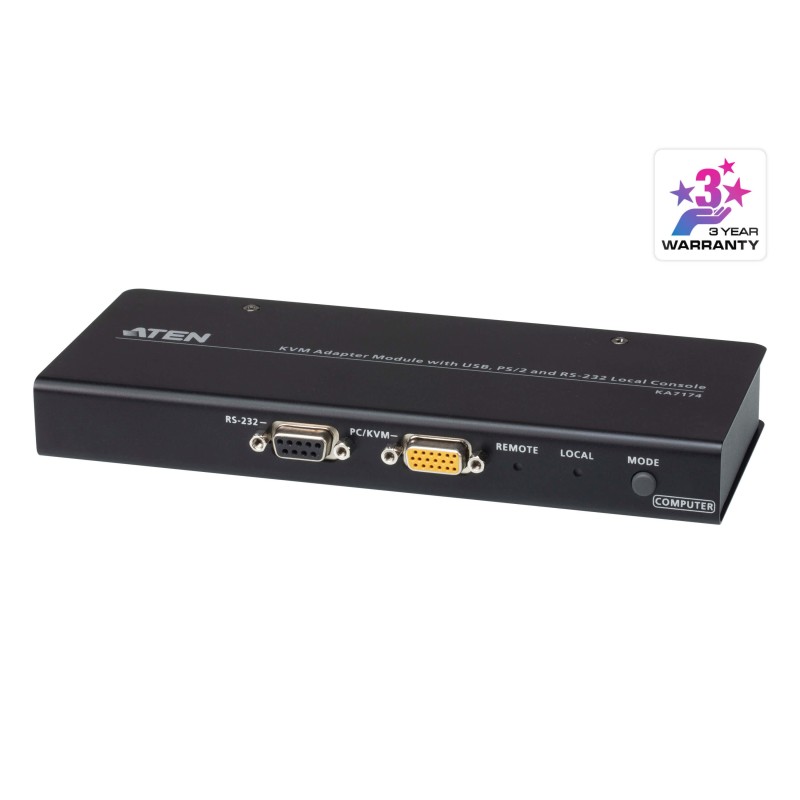

KA7174-AX-G

Data sheet

Compatibility

KN2116VA,KN2132VA,KN4116VA,KN4132VA,KN4164V,2L-5301UP,KN8132V,2L-5302UP,KN8164V,2L-5303UP,KN2124VA,KN2140VA,KN4124VA,KN4140VA,VE-RMK1U,KN1132V,2XRT-0015G,KA7171AK

Product color

Black

Package type

Box

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Weight

17.3 oz (490 g)

Harmonized System (HS) code

85176200

Input voltage

5 V

HD type

WUXGA

Serial ports quantity

2

Maximum resolution

1920 x 1200 pixels

Width

3.4" (86.4 mm)

Height

25 mm

Country of origin

Taiwan

Depth

7.99" (203 mm)

Package weight

2.25 lbs (1.02 kg)

Master (outer) case width

11.8" (300 mm)

Master (outer) case length

13.2" (336 mm)

Master (outer) case height

7.64" (194 mm)

Master (outer) case weight

12.4 lbs (5.61 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.44" (62 mm)

Package depth

11.1" (283 mm)

Package height

6.81" (173 mm)

Built-in display

No

LED indicators

Yes

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Housing material

Metal

I/O ports

1 x SPHD, 1 x 6-pin Mini-DIN, 1 x USB Type A

Power consumption (typical)

1.75 W

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Package volume

3114.85 cm³

Rack mounting

No

Master (outer) case volume

19538.62 cm³

Serial port type

DE-9 (DB-9)

Video bandwidth

60 Hz

Console ports

SPHD

Push button

Yes

Packaging content

1x Module adaptateur KA7174 KVM avec USB, PS/2, et Console locale RS-232
1x adaptateur d’alimentation
1x câble KVM (VGA, USB, PS/2)
1x câble de console (VGA, USB, PS/2)
1x jeu de repose-pieds (4 pièces)
1x manuel d’instructions

Specific References

EAN13

4710469341595

MPN

KA7174-AX-G
