CHF520.3
tax incl.
CHF481.3
tax excl.
In stock
CHF144.6
tax incl.
CHF133.8
tax excl.
In stock
Description

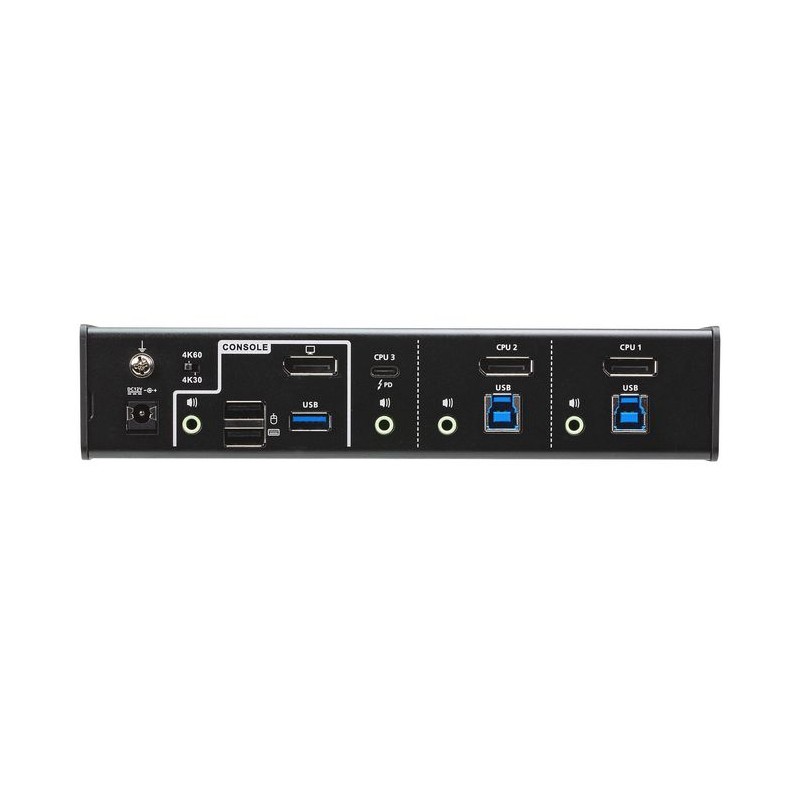

1x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Type-A to Type-B Cables
1x LIN6-22B1-B12G USB-C Cable
3x LIN5-0205-21CG Audio Cables
1x 2XRT-0016G Remote Port Selector
1x User Instructions
[Optional] 0AD8-8012-70MG Power Adapter
- One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers and one USB-C device
- Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Provides USB Power Delivery 3.0 for USB-C device charging up to 45W
- Computer selection via pushbuttons, hotkeys, mouse, and remote port selector
Specifications
Design
| Hot keys | Yes |
| Housing material | Metal/Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
Display
| Built-in display | No |
Logistics data
| Master (outer) case gross weight | 7190 g |
| Master (outer) case height | 28.3 cm |
| Master (outer) case length | 50 cm |
| Master (outer) case net weight | 4800 g |
| Master (outer) case width | 23.2 cm |
| Products per master (outer) case | 5 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Manual | Yes |
| Quick installation guide | Yes |
Performance
| Auto scan delay (max) | 99 s |
| Auto scan delay (min) | 1 s |
| Firmware upgradeable | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1/5/99 s |
| Video bandwidth | 60 Hz |
Ports & interfaces
| Audio connections | Yes |
| Console ports | 3.5mm headphone/3.5mm mic/DisplayPort/USB A |
| Console USB ports quantity | 2 |
| DC-in jack | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| Headphone outputs | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 3 |
| Number of microphone inputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 3 |
| USB connector type | USB Type-A/USB Type-B |
| USB hub | Yes |
| Video port type | DisplayPort |
Power
| DC input voltage | 12 V |
| Input voltage | 12 V |
| Power consumption (typical) | 5.78 W |
| Power source | DC |
System requirements
| Windows operating systems supported | Yes |
Vendor information
| Brand Name | Aten |
| Warranty | 2 |
Product Details
2 Items
New
Data sheet
- HDCP
- Yes
- Gestellmontage
- Yes
- DisplayPort-Version
- 1.2
- DisplayPorts Menge
- 2
- Firmware aktualisierbar
- Yes
- DC-Eingangsbuchse
- Yes
- Eingangsspannung
- 12 V
- LED-Anzeigen
- Yes
- Handbuch
- Yes
- Stromverbrauch (typisch)
- 5.78 W
- Maximum Auflösung
- 4096 x 2160 Pixel
- Hotkeys
- Yes
- USB-Hub
- Yes
- Eingebautes Display
- No
- Produkte pro Master (Außen)-Case
- 5 Stück(e)
- Schnellinstallationsanleitung
- Yes
- Gehäusematerial
- Metal/Plastic
- Videobandbreite
- 60 Hz
- Anzahl der kontrollierten Computer
- 3
- Anzahl der Mikrofoneingänge
- 1
- Anzahl der USB-Anschlüsse der Konsole
- 2
- Audioverbindungen
- Yes
- Konsolenports
- 3.5mm headphone/3.5mm mic/DisplayPort/USB A
- Kopfhörerausgänge
- 4
- Mausanschlusstyp
- USB
- Typ des Tastaturanschlusses
- USB
- Typ des Videoanschlusses
- DisplayPort
- USB-Anschlusstyp
- USB Type-A/USB Type-B
- DC-Eingangsspannung
- 12 V
- Energiequelle
- DC
- HD-Typ
- 4K Ultra HD
- Brand Name
- Aten
- Warranty
- 2
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 80 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Unterstützte Windows-Betriebssysteme
- Yes
- Produktfarbe
- Black
- Master (äußere) Gehäusebreite
- 23.2 cm
- Master (äußere) Gehäusehöhe
- 28.3 cm
- Master (äußere) Gehäuselänge
- 50 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 7190 g
- Nettogewicht des (äußeren) Hauptkoffers
- 4800 g
- Scan-Intervall
- 1/5/99 s
- Druckknopf
- Yes
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-B Anschlüsse
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Typ-A-Hub-Anschlüsse Anzahl
- 2
- Auto-Scan-Verzögerung (max.)
- 99 s
- Auto-Scan-Verzögerung (min.)
- 1 s
Specific References
- EAN13
- 4719264647529
- MPN
- CS1953-AT
