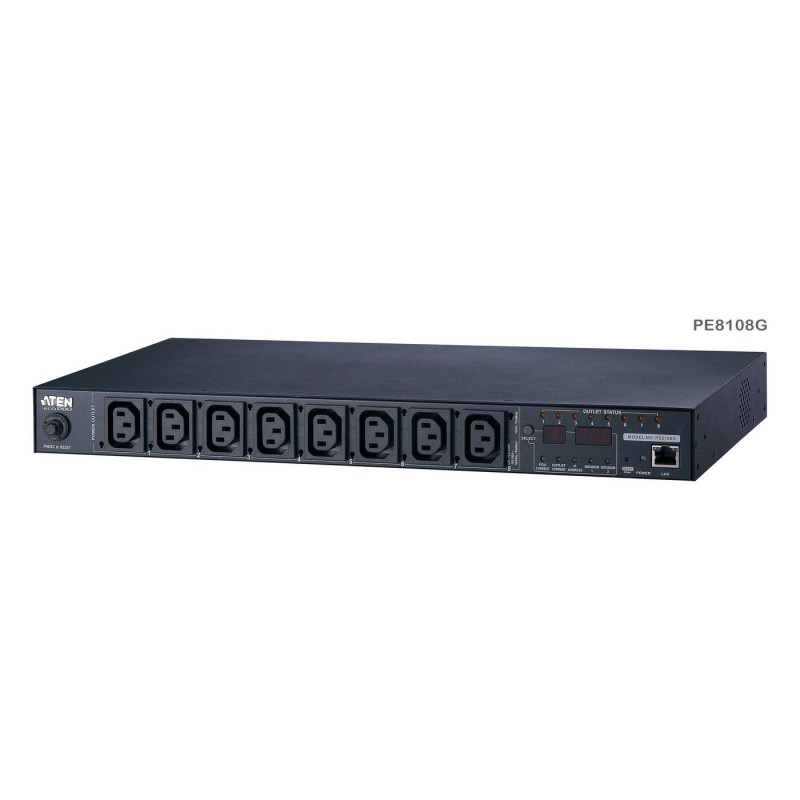

PE8108G-ATB-G
8-Port Intelligent 1U ECO Power Distribution Unit (PDU), Metered & Switched by Outlet (8 x C13) 10Amp
Descrizione
-8 outlets
-15A (UL derated 12A) / 10A
-Outlet Power Measurement
The PE8108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
1x PE8108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions
-15A (UL derated 12A) / 10A
-Outlet Power Measurement
The PE8108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
1x PE8108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions
- Remote power outlet control (On, Off, Power Cycle) by individual outlets
- Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level (PE8108 / PE8208)
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Specifiche
Design
| Housing material | Metal |
| Mounting | Horizontal |
| PDU types | Metered/Switched |
| Product colour | Black |
| Rack capacity | 1U |
Features
| Cable length | 3 m |
| Certification | CE, TUV-CB, CE-LVD, GOST, |
| LED indicators | LAN/Link/Power/Status |
Logistics data
| Master (outer) case gross weight | 12920 g |
| Master (outer) case height | 34.8 cm |
| Master (outer) case length | 51.9 cm |
| Master (outer) case net weight | 9660 g |
| Master (outer) case width | 38.8 cm |
| Products per master (outer) case | 3 pz |
Management features
| Monitoring | Current |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Cables included | AC |
| Rack mount kit | Yes |
Ports & interfaces
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 presa(e) AC |
| Ethernet LAN (RJ-45) ports | 1 |
| Power plug | C20 coupler |
Power
| AC input frequency | 50 - 60 Hz |
| Load capacity | 2300 VA |
| Maximum current | 10 A |
| Maximum input current per phase | 10 A |
| Nominal input voltage | 100 - 240 V |
| Nominal output voltage | 100 - 240 V |
Technical details
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
Vendor information
| Brand Name | Aten |
| Warranty | 2 |
Dettagli del prodotto
1 Articolo
Nuovo
Scheda tecnica
- Tipi di PDU
- Metered/Switched
- Monitoraggio
- Current
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Rack-Montage-Kit
- Yes
- Capacità
- 2300 VA
- Compliance certificates
- RoHS
- LED-Anzeigen
- LAN/Link/Power/Status
- Kabel enthalten
- AC
- AC-Steckdosentypen
- C13 coupler
- Anzahl der AC-Steckdosen
- 8 AC-Ausgänge
- Netzstecker
- C20 coupler
- Zertifizierung
- CE, TUV-CB, CE-LVD, GOST,
- AC-Eingangsfrequenz
- 50 - 60 Hz
- Nachhaltigkeitszertifikate
- RoHS
- Montage
- Horizontal
- Maximum Strom
- 10 A
- Produkte pro Master (Außen)-Case
- 3 Stück(e)
- Gehäusematerial
- Metal
- Rack-Kapazität
- 1U
- Kabellänge
- 3 m
- Brand Name
- Aten
- Warranty
- 2
- Betriebstemperatur (TT)
- 0 - 50 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Produktfarbe
- Black
- Master (äußere) Gehäusebreite
- 38.8 cm
- Master (äußere) Gehäusehöhe
- 34.8 cm
- Master (äußere) Gehäuselänge
- 51.9 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 12920 g
- Nominale Eingangsspannung
- 100 - 240 V
- Nominale Ausgangsspannung
- 100 - 240 V
- Nettogewicht des (äußeren) Hauptkoffers
- 9660 g
- Maximum Eingangsstrom pro Phase
- 10 A
Riferimenti Specifici
- MPN
- PE8108G-ATB-G
