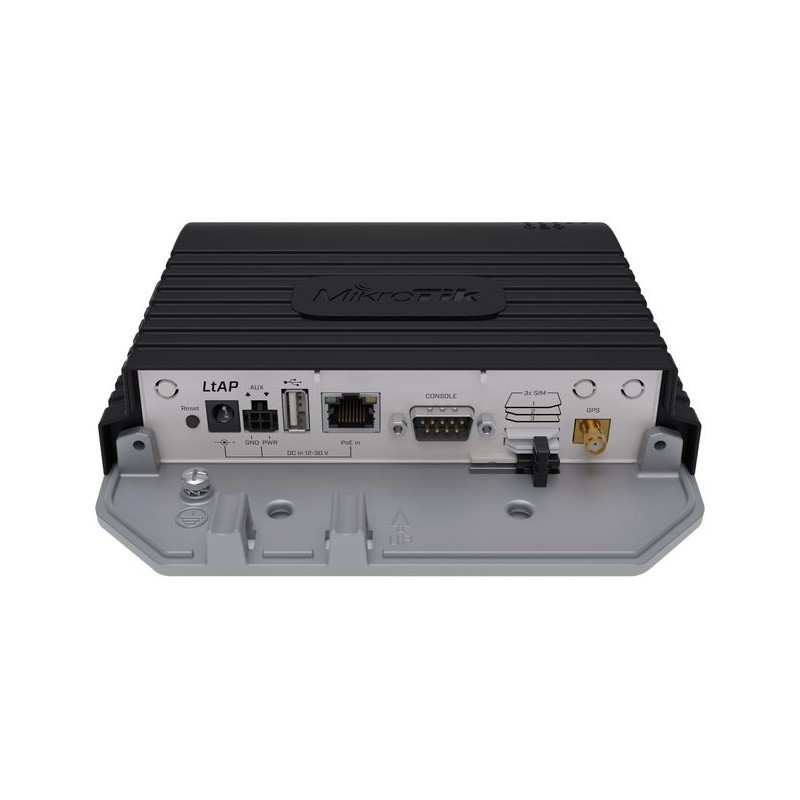

In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.
Perfect for logistics and trackingThere are 3 MiniSIM slots – you can use them to set up automatic roaming, switching the mobile operators as you cross the border. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same principle goes for the GPS – you need an external antenna via SMA.
The power options are as flexible as it gets. You have the classic DC jack, passive PoE-in, and an automotive connector. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!
Customize – and achieve even more!LtAP LTE6 kit comes with two miniPCI-e slots. One of these slots is reserved by the LTE modem, while the other one can be used as an expansion slot. You could add a 5 GHz interface, for example. Or a second LTE modem – for redundancy. It’s your call, adapt the LtAP to your needs!
Our latest Cat6 LTE modem – cut costs, not speedThis LtAP features a brand new Category 6 LTE modem – the same modem you’ve seen in our bestselling Chateau ax series. It supports a variety of popular LTE frequencies, like the B28 band. You can reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use two bands simultaneously. That is a huge advantage in areas with many LTE users. LtAP LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation.
Specifications
Antenna
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 2.5 dBi |
| Antenna type | Internal & external |
Certificates
| Certification | CE, E-MARK, EAC, ROHS |
Design
| International Protection (IP) code | IP54 |
| Placement | Floor/Table |
| Product colour | Black |
Features
| 2.4 GHz | Yes |
| 5 GHz | No |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| GPS (satellite) | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| VLAN support | Yes |
Mobile network
| 3G bands supported | 2100/850/900 MHz |
| 4G FDD-LTE bands supported | 1800/2100/2600/700/800/850/900 MHz |
| 4G LTE category | 6 |
| 4G TDD-LTE bands supported | 2300/2500/2600 MHz |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
Operational conditions
| Operating relative humidity (H-H) | -40 - 70 % |
Performance
| Built-in processor | Yes |
| Compatible operating systems | RouterOS v7 |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Operating system installed | RouterOS |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
Power
| AC input voltage | 12 - 30 V |
| Power consumption (max) | 24 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
Vendor information
| Brand Name | MikroTik |
| Warranty | 1 |
