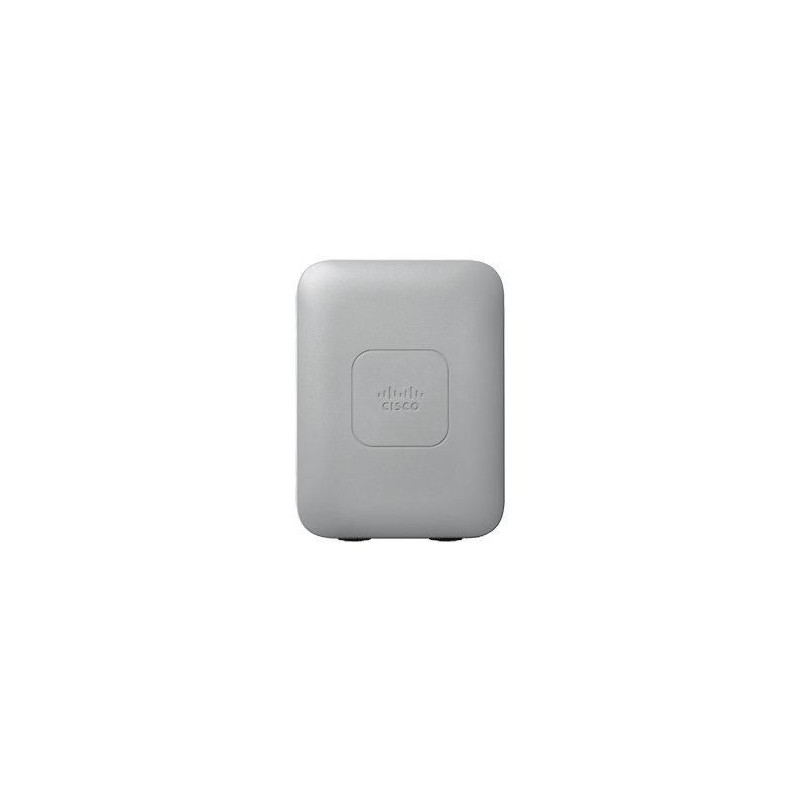

AIR-AP1542I-S-K9
Dual-band 802.11a/g/n/ac, Wave 2, internal omni antennas, S regulatory domain
Description
Cisco® Aironet® 1540 Series outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily.
The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.
Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.
Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
Specifications
Antenna
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5 dBi |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Polarization | Vertical polarization |
Certificates
| Certification | ARIB-STD 66 (Japan)/ARIB-STD T71 (Japan)/AS/NZS 4268.2003/CAN/CSA-C22.2 No. 60950/EN 300 328/EN 301 489-1, -17/EN 301 893/EN 60950/EN61000-4-2/EN61000-4-3/EN61000-4-4/EN61000-4-5/FCC/ICES-003/IEC 60950/RSS-102/RSS-210/UL60950 |
Design
| International Protection (IP) code | IP67 |
| LED indicators | Yes |
| Placement | Pole/Wall |
| Product colour | Grey |
| Reset button | Yes |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Channel bandwidth | 80 MHz |
| Channels quantity | 29 channels |
| Cyclic Shift Diversity (CSD) | Yes |
| Data unit aggregation | A-MSDU, A-MPDU |
| Dynamic Frequency Selection (DFS) | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.412 - 2.472, 5.5 - 5.7, 5.745 - 5.825 GHz |
| Maximal-Ratio Combining (MRC) | Yes |
| Maximum data transfer rate | 1100 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11i/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Number of users | 400 user(s) |
| Transmitting power | 27 dBmW |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging content
| Quantity per pack | 1 pc(s) |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
Power
| Power consumption (max) | 13.9 W |
| Power over Ethernet (PoE) | Yes |
Security
| MAC address filtering | Yes |
| Security algorithms | AES/EAP-PEAP/EAP-SIM/EAP-TLS/EAP-TTLS/IPSec/LEAP/WPA/WPA2 |
Vendor information
| Brand Name | Cisco |
| Warranty | 1 |
Product Details
2026-04-13
New
Data sheet
- Reset button
- Yes
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- Placement
- Pole/Wall
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Antenna features
- Integrated antenna
- Polarization
- Vertical polarization
- Dynamic Frequency Selection (DFS)
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Netzwerkstandards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11i/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
- Stromversorgung über Ethernet (PoE)
- Yes
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Antennen Menge
- 2
- Antennenrichtungstyp
- Omni-directional
- Antennenverstärkungspegel (max.)
- 5 dBi
- MAC-Adressfilterung
- Yes
- Maximum Datenübertragungsrate
- 1100 Mbit/s
- WAN-Verbindung
- Ethernet (RJ-45)
- Anzahl der USB 2.0-Anschlüsse
- 0
- Antenna type
- Internal
- LED-Anzeigen
- Yes
- Internationaler Schutzcode (IP).
- IP67
- Frequenzband
- 2.412 - 2.472, 5.5 - 5.7, 5.745 - 5.825 GHz
- Zertifizierung
- ARIB-STD 66 (Japan)/ARIB-STD T71 (Japan)/AS/NZS 4268.2003/CAN/CSA-C22.2 No. 60950/EN 300 328/EN 301 489-1, -17/EN 301 893/EN 60950/EN61000-4-2/EN61000-4-3/EN61000-4-4/EN61000-4-5/FCC/ICES-003/IEC 60950/RSS-102/RSS-210/UL60950
- Sicherheitsalgorithmen
- AES/EAP-PEAP/EAP-SIM/EAP-TLS/EAP-TTLS/IPSec/LEAP/WPA/WPA2
- Stromverbrauch (max.)
- 13.9 W
- Brand Name
- Cisco
- Warranty
- 1
- Betriebstemperatur (TT)
- -40 - 65 °C
- Lagertemperatur (TT)
- -40 - 85 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Menge pro Packung
- 1 Stück(e)
- Anzahl der Kanäle
- 29 Kanäle
- Produktfarbe
- Grey
- Anzahl der Nutzer
- 400 Benutzer
- Kanalbandbreite
- 80 MHz
- Maximum Datenübertragungsrate (5 GHz)
- 867 Mbit/s
- Sendeleistung
- 27 dBmW
- Aggregation von Dateneinheiten
- A-MSDU, A-MPDU
- Cyclic Shift Diversity (CSD)
- Yes
- Maximal-Ratio-Combining (MRC)
- Yes
Specific References
- MPN
- AIR-AP1542I-S-K9
