CBS220-24FP4GEU-RF

Name: Cisco CBS220-24FP4GEU-RF
Brand: Cisco
SKU: 2628515
Price: 517.9 CHF
Availability: InStock

Brand Cisco

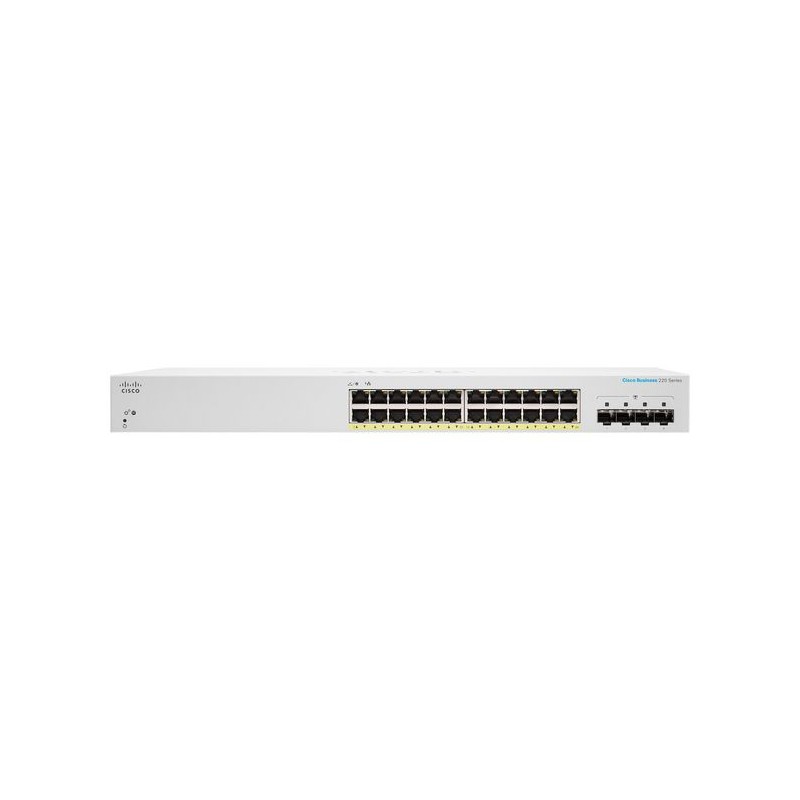

Business CBS220-24FP-4G Smart Switch | 24 Port GE | Full PoE | 4x1G SFP | EU, RF

CHF517.9

Tax included

CHF479.1 Tax excluded

Delivery in 4-5 days

Quantity

In stock

In stock: 3 Items

Description
Product Details

Description

The Cisco Business CBS220-24FP-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Specifications

Data transmission

Jumbo frames	9216
Jumbo frames support	Yes
MAC address table	8192 entries
Switching capacity	56 Gbit/s

Design

LED indicators	Yes
Market segment	Business
Number of fans	2 fan(s)
Product colour	White
Rack mounting	Yes
Reset button	Yes

Logistics data

Products per master (outer) case	1 pc(s)
Quantity per pack	1 pc(s)

Management features

Configuring Location Settings (CLI)	Yes
MIB support	Y
Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Managed
System event log	Yes
Web-based management	Yes

Multicast features

Multicast support	Yes
Number of multicast groups filtered	256

Network

10G support	No
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Networking standards	IEEE 802.1D/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs	256
Port mirroring	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 70 °C

Performance

Firmware upgradeable

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4

Power

Power plug type

Type C

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	382 W

Protocols

GARP VLAN Registration Protocol (GVRP)	Yes
Management protocols	SNMP

Security

Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
BPDU filtering/protection	Yes
DHCP features	DHCP client
IGMP entries	256
IGMP snooping	Yes
Loop protection	Yes
MAC address filtering	Yes
Security algorithms	SSL/TLS
SSH/SSL support	Yes

Technical details

Products per shipping (inner) case

1 pc(s)

Vendor information

Brand Name	Cisco
Warranty	1

Product Details

In stock 3 Items

Condition New

Data sheet

Auto MDI/MDI-X: Yes
Reset button: Yes
System event log: Yes
Broadcast storm control: Yes
Number of VLANs: 256
DHCP features: DHCP client
BPDU filtering/protection: Yes
Number of multicast groups filtered: 256
IGMP entries: 256
Jumbo-Rahmen: 9216
MAC-Adresstabelle: 8192 Eintragungen
Unterstützung für Jumbo-Frames: Yes
Anzahl Fans: 2 Lüfter
Gestellmontage: Yes
Ebene wechseln: L2
Schaltertyp: Managed
Webbasierte Verwaltung: Yes
Multicast-Unterstützung: Yes
Link-Aggregation: Yes
Netzwerkstandards: IEEE 802.1D/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Spanning-Tree-Protokoll: Yes
Unterstützung der Flusskontrolle: Yes
Grundlegende Anzahl von RJ-45-Ethernet-Ports: 24
Grundlegender Switching-RJ-45-Ethernet-Porttyp: Gigabit Ethernet (10/100/1000)
Gesamtbudget für Power over Ethernet (PoE): 382 W
Stromversorgung über Ethernet (PoE): Yes
Verwaltungsprotokolle: SNMP
IGMP-Schnüffelei: Yes
Zugriffskontrollliste (ACL): Yes
MAC-Adressfilterung: Yes
Firmware aktualisierbar: Yes
Quality of Service (QoS)-Unterstützung: Yes
MIB-Unterstützung: Y
Standorteinstellungen konfigurieren (CLI): Yes
Portspiegelung: Yes
SSH/SSL-Unterstützung: Yes
Schleifenschutz: Yes
Breaking capacity: 56 Gbit/s
LED-Anzeigen: Yes
Sicherheitsalgorithmen: SSL/TLS
Netzsteckertyp: Type C
Produkte pro Master (Außen)-Case: 1 Stück(e)
10G-Unterstützung: No
VLAN-Unterstützung: Yes
Produkte pro (innerem) Versandkarton: 1 Stück(e)
Brand Name: Cisco
Warranty: 1
Betriebstemperatur (TT): 0 - 50 °C
Lagertemperatur (TT): -20 - 70 °C
Relative Luftfeuchtigkeit bei Lagerung (HH): 10 - 90 %
Relative Luftfeuchtigkeit im Betrieb (HH): 10 - 90 %
Menge pro Packung: 1 Stück(e)
Produktfarbe: White
Anzahl der SFP-Modulsteckplätze: 4
Market segment: Business
Anzahl der Power over Ethernet (PoE)-Anschlüsse: 24
Head-of-Line (HOL)-Blockierung: Yes
Anzahl der installierten SFP-Module: 0
Anzahl der installierten SFP+-Module: 0
GARP VLAN-Registrierungsprotokoll (GVRP): Yes
Regeln der Zugriffskontrollliste (ACL): 512

Specific References

MPN: CBS220-24FP4GEU-RF
