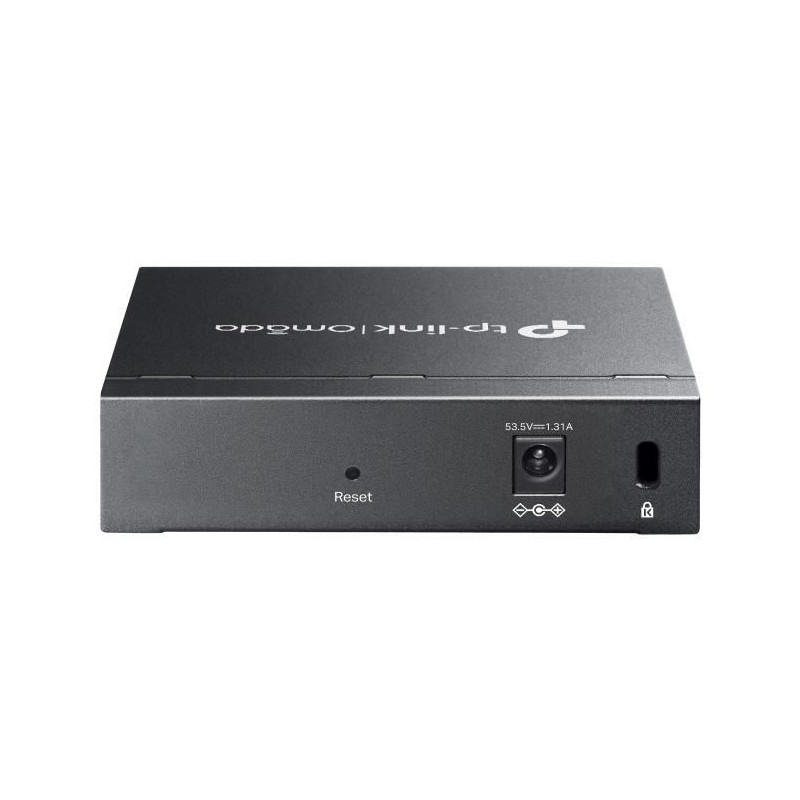

ES205GP
5× 10/100/1000Mbps RJ-45, 4x 802.3at PoE+ / 802.3af PoE (Total 65W), AUTO Negotiation/AUTO MDI/MDIX, 10 Gbps, 8K MAC, 53.5VDC / 1.31A
Description
ES205GP New
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
65W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
65W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Data transmission
| Forwarding rate | 7.4 Mpps |
| Jumbo frames | 15 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 4 MB |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
Design
| LED indicators | Yes |
| Product colour | Black |
| Reset button | Yes |
| Wall mountable | Yes |
Management features
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3at/IEEE 802.3x |
| Port mirroring | Yes |
| Virtual LAN features | MTU VLAN/Port-based VLAN/Tagged VLAN |
| VLAN support | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Optical fiber
| Transmission distance (max) | 0.25 km |
Packaging content
| User guide | Yes |
Performance
| Fanless | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power
| DC input voltage | 53.5 V |
| Power source | AC/DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
Security
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
Vendor information
| Brand Name | Omada |
| Warranty | 5 |
Product Details
9 Items
New
Data sheet
- User guide
- Yes
- Auto MDI/MDI-X
- Yes
- Reset button
- Yes
- Virtual LAN features
- MTU VLAN/Port-based VLAN/Tagged VLAN
- DHCP features
- DHCP client
- Cloud-managed
- Yes
- an der Wand montierbar
- Yes
- Jumbo-Rahmen
- 15
- MAC-Adresstabelle
- 8000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Schaltertyp
- Managed
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3at/IEEE 802.3x
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 5
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 4
- Gesamtbudget für Power over Ethernet (PoE)
- 65 W
- Stromversorgung über Ethernet (PoE)
- Yes
- IGMP-Schnüffelei
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Paketpufferspeicher
- 4 MB
- Speichern und weiterleiten
- Yes
- Portspiegelung
- Yes
- Weiterleitungstarif
- 7.4 Mpps
- Schleifenschutz
- Yes
- Breaking capacity
- 10 Gbit/s
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- LED-Anzeigen
- Yes
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- DC-Eingangsspannung
- 53.5 V
- Energiequelle
- AC/DC
- Brand Name
- Omada
- Warranty
- 5
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Produktfarbe
- Black
- Auto-Negotiation
- Yes
- Power over Ethernet (PoE)-Stromversorgung pro Port
- 30 W
- Lüfterlos
- Yes
- Anzahl der Power over Ethernet (PoE)-Anschlüsse
- 4
- Übertragungsreichweite (max.)
- 0.25 km
Specific References
- UPC
- 810142820431
- EAN13
- 8885020620948
- MPN
- ES205GP
