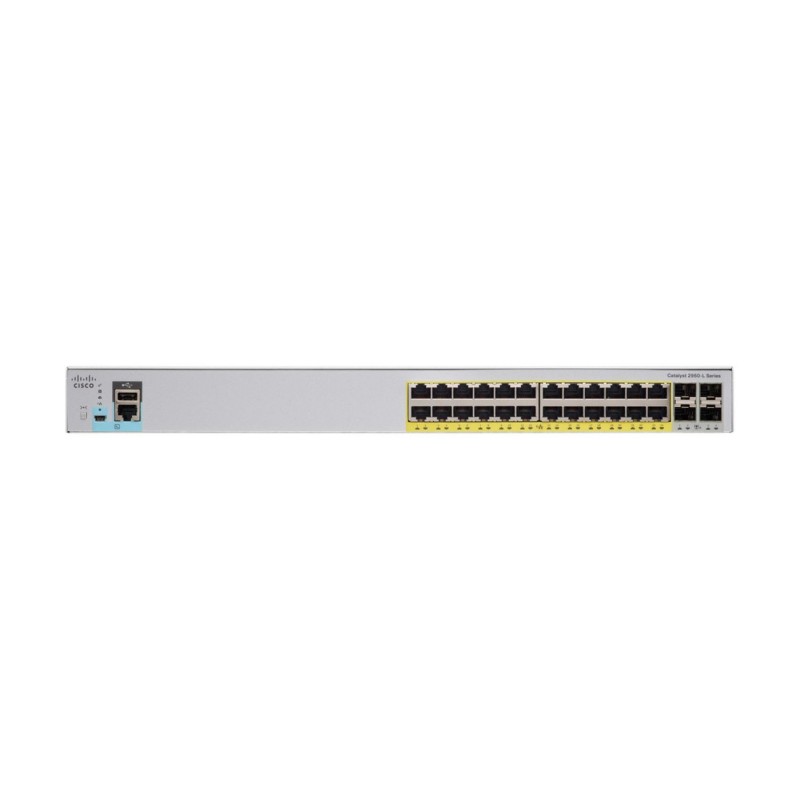

WS-C2960L-SM-24PQ
Catalyst 2960L-SM-24PS Network Switch, 24 Gigabit Ethernet PoE+ Ports, 195W PoE Budget, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (WS-C2960L-SM-24PS)
Description
The Cisco Catalyst 2960L-SM-24PQ Network Switch is an enterprise-class, fixed Gigabit Ethernet switch designed for small and medium-sized businesses. This secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and supports simple device management using only a simple yet powerful web UI.
- ETHERNET PORT CONFIGURATION: 24 10/100/1000 Gigabit Ethernet ports, four 10 G SFP+ uplink ports
- POWER: Power budget of 195W with Perpetual PoE+ support for uninterrupted power to PoE devices, even in case of switch reboot
- MANAGEMENT: Manage the switch using only the easy-to-use web UI and access over-the-air via an external Bluetooth adapter, SNMP (Simple Network Management Protocol) and RJ-45 or USB console access
- SECURITY: 802.1X support for connected devices, Switched Port Analyser (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
- PEACE OF MIND: Enhanced limited lifetime warranty
Specifications
Data transmission
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
Design
| Form factor | 1U |
| LED indicators | Yes |
| Market segment | Business |
| Product colour | Grey |
| Rack mounting | Yes |
Logistics data
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
Multicast features
| Multicast support | Yes |
Network
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Networking standards | IEEE 802.1ab/IEEE 802.1ad/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 4094 |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
Operational conditions
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
Other features
| Packaging content | WS-C2960L-SM-24PQ Switch, Accessory Kit, 1 printed document |
Performance
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Processor frequency | 800 MHz |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| SFP+ module slots quantity | 4 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 240 V |
| Power plug type | Type C |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 195 W |
Protocols
| Management protocols | SNMPv3, Telnet, RMON |
Security
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client/DHCP server |
| IGMP snooping | Yes |
| Security algorithms | SNMP/SSH |
| SSH/SSL support | Yes |
Technical details
| Products per shipping (inner) case | 1 pc(s) |
Vendor information
| Brand Name | Cisco |
| Warranty | 1 |
Product Details
2026-05-08
New
Data sheet
- Auto MDI/MDI-X
- Yes
- Flash memory
- 256 MB
- Virtual LAN features
- Private VLAN
- Broadcast storm control
- Yes
- Number of VLANs
- 4094
- DHCP features
- DHCP client/DHCP server
- Packaging content
- WS-C2960L-SM-24PQ Switch, Accessory Kit, 1 printed document
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Multicast-Unterstützung
- Yes
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/100BASE-TX/10BASE-T
- Netzwerkstandards
- IEEE 802.1ab/IEEE 802.1ad/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Spanning-Tree-Protokoll
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Konsolenport
- RJ-45
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 24
- Gesamtbudget für Power over Ethernet (PoE)
- 195 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Verwaltungsprotokolle
- SNMPv3, Telnet, RMON
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Prozessorfrequenz
- 800 MHz
- Quality of Service (QoS)-Unterstützung
- Yes
- Anzahl der SFP+-Modulsteckplätze
- 4
- SSH/SSL-Unterstützung
- Yes
- Breaking capacity
- 56 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 110 - 240 V
- Sicherheitsalgorithmen
- SNMP/SSH
- Eingebauter Prozessor
- Yes
- Netzsteckertyp
- Type C
- Betriebshöhe
- 0 - 3000 m
- Nichtbetriebshöhe
- 0 - 4500 m
- Produkte pro Master (Außen)-Case
- 1 Stück(e)
- VLAN-Unterstützung
- Yes
- Produkte pro (innerem) Versandkarton
- 1 Stück(e)
- Brand Name
- Cisco
- Warranty
- 1
- Betriebstemperatur (TT)
- -5 - 40 °C
- Lagertemperatur (TT)
- -25 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 90 %
- Menge pro Packung
- 1 Stück(e)
- Interner Speicher
- 512 MB
- Produktfarbe
- Grey
- Market segment
- Business
Specific References
- MPN
- WS-C2960L-SM-24PQ
