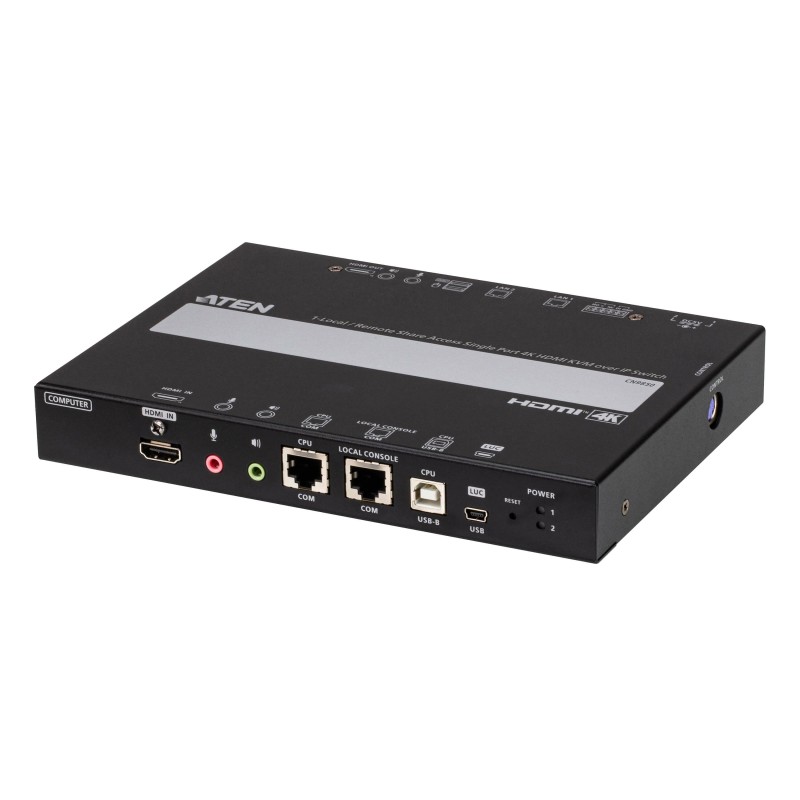

CN9850-AT-G

The CN9850 KVM over IP Switch allows for remote access to video, audio, and virtual media of a PC or workstation, and features HDMI high-definition video with resolutions of up to 4K DCI (4096 x 2160) @ 30 Hz at both the local and remote consoles. Built with an advanced FPGA graphics processor, the CN9850 offers better image and video quality to enhance the user experience, while also meeting the RS-232 standards for serial control.

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC / server for easy routine maintenance without requiring an additional monitor, keyboard, and mouse.

To seamless stable connectivity, the CN9850 is equipped with dual LAN and dual power functionality to keep operations in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the devices are offline (e.g. power failure) for device status monitoring. Moreover, the CN9850 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital input from a connected input/alarm device for notification of critical events.

For ease of remote management, the CN9850 WebClient Viewer supports remote desktop access without additional software applications. The HDMI 4K KVM over IP Switch provides a webbased GUI for remote access and management. In addition, a unified multi-language interface can minimize user training time and increase productivity.

The CN9850 is ideal for data centers, server rooms, and control rooms for remote access management in industries with requirements for high-quality images and multitasking, such as global organizations and companies with several office locations where it can function as a bridge between local and remote workplaces.

ATEN CN9850-AT-G. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal, LED indicators: Power. Power source: DC, Output voltage: 5 V, Power consumption (typical): 10.07 W. Width: 5.93" (150.5 mm), Depth: 7.87" (200 mm), Height: 1.12" (28.4 mm)

Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	HDMI, USB A
HDMI ports quantity	1
USB 2.0 Type-B ports quantity	1
Console USB ports quantity	2
Console HDMI ports quantity	1
USB connector type	Mini-USB B
PS/2 ports quantity	1
Serial port type	RJ-45
Serial ports quantity	2
Audio connections	Yes
Headphone outputs	2
Number of microphone inputs	2
DC-in jack	Yes
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	30 Hz
Product color	Black
Housing material	Metal
LED indicators	Power
Built-in display	No
Power source	DC
Output voltage	5 V
Power consumption (typical)	10.07 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	5.93" (150.5 mm)
Depth	7.87" (200 mm)
Height	1.12" (28.4 mm)
Weight	29.6 oz (840 g)
Package width	3.86" (98 mm)
Package depth	12.8" (325 mm)
Package height	8.27" (210 mm)
Package weight	3.73 lbs (1.69 kg)
Cables included	KVM, USB
Harmonized System (HS) code	84718000
Master (outer) case width	13.5" (342 mm)
Master (outer) case length	20.2" (512 mm)
Master (outer) case height	9.13" (232 mm)
Master (outer) case weight	20.1 lbs (9.1 kg)
Country of origin	Taiwan
