CHF518.4
tax incl.
CHF479.6
tax excl.
In stock
CHF144.1
tax incl.
CHF133.3
tax excl.
In stock
Description

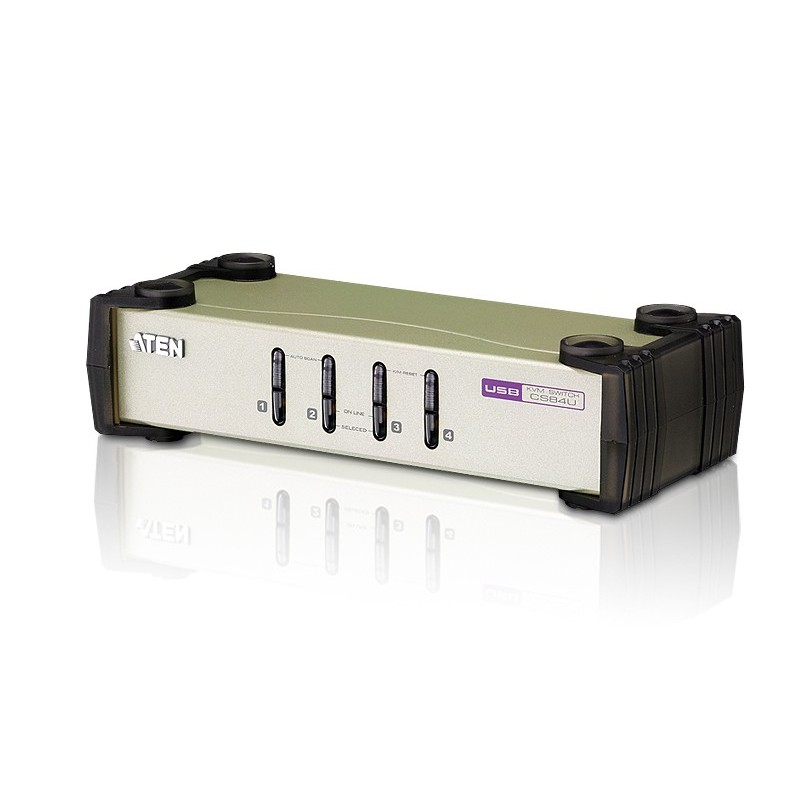

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution. Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms. • One PS/2-USB VGA console controls four VGA interface computers
• Dual Interface - supports computers with PS/2 or USB keyboards and mice
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Multiplatform support - Windows, Linux, Mac, and Sun
• Superior video quality - 2048 x 1536; DDC2B
• Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping - supports English, Japanese, and French keyboards
• Gaming keyboard support
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers
ATEN CS84U-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product color: Black, Gray, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.45 W. Width: 8.27" (210 mm), Depth: 3.46" (88 mm), Height: 2.19" (55.5 mm)
• Dual Interface - supports computers with PS/2 or USB keyboards and mice
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Multiplatform support - Windows, Linux, Mac, and Sun
• Superior video quality - 2048 x 1536; DDC2B
• Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping - supports English, Japanese, and French keyboards
• Gaming keyboard support
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers
ATEN CS84U-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product color: Black, Gray, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.45 W. Width: 8.27" (210 mm), Depth: 3.46" (88 mm), Height: 2.19" (55.5 mm)
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity | 4 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| DDC2B support | Yes |
| Rack mounting | No |
| Product color | Black, Gray |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.45 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 8.27" (210 mm) |
| Depth | 3.46" (88 mm) |
| Height | 2.19" (55.5 mm) |
| Weight | 3.33 lbs (1.51 kg) |
| Package width | 3.94" (100 mm) |
| Package depth | 11.1" (283 mm) |
| Package height | 6.81" (173 mm) |
| Package weight | 3.73 lbs (1.69 kg) |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 16.7 lbs (7.57 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 11.5" (292 mm) |
| Master (outer) case length | 20.4" (517 mm) |
| Master (outer) case height | 7.64" (194 mm) |
| Master (outer) case weight | 19.8 lbs (8.98 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
2026-06-22
New
Data sheet
- Product color
- Black, Gray
- VGA (D-Sub) ports quantity
- 4
- Weight
- 3.33 lbs (1.51 kg)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5 V
- HD type
- QXGA
- Maximum resolution
- 2048 x 1536 pixels
- Width
- 8.27" (210 mm)
- Height
- 2.19" (55.5 mm)
- Depth
- 3.46" (88 mm)
- Package weight
- 3.73 lbs (1.69 kg)
- Master (outer) case width
- 11.5" (292 mm)
- Master (outer) case length
- 20.4" (517 mm)
- Master (outer) case height
- 7.64" (194 mm)
- Master (outer) case weight
- 19.8 lbs (8.98 kg)
- Quantity per master (outer) case
- 5 pc(s)
- Package width
- 3.94" (100 mm)
- Package depth
- 11.1" (283 mm)
- Package height
- 6.81" (173 mm)
- Power source
- DC
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-A
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Manual
- Yes
- Housing material
- Metal
- Power consumption (typical)
- 0.45 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
- Quick installation guide
- Yes
- Master (outer) case net weight
- 16.7 lbs (7.57 kg)
- Rack mounting
- No
- Number of computers controlled
- 4
- Video bandwidth
- 60 Hz
- USB 2.0 Type-A hub ports quantity
- 2
- Console ports
- USB A, VGA (D-Sub)
- DDC2B support
- Yes
- Scan interval
- 3,5,10,20 s
- Push button
- Yes
Specific References
- UPC
- 672792002052
- EAN13
- 4710423777019
- MPN
- CS84U-AT
