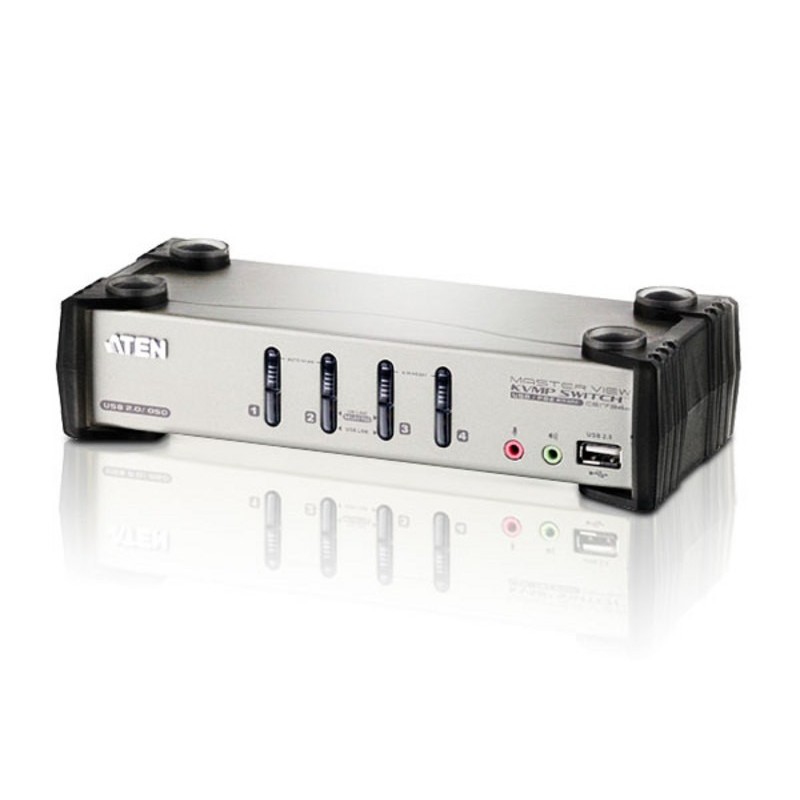

CS1734B-AT-G

Data sheet

Product color

Black, Metallic

Headphone outputs

6

VGA (D-Sub) ports quantity

1

Weight

4.3 lbs (1.95 kg)

Harmonized System (HS) code

85176200

Input voltage

5 V

HD type

QXGA

Maximum resolution

2048 x 1536 pixels

Width

3.46" (88 mm)

Height

2.19" (55.5 mm)

USB hub

Yes

Power source type

DC

Depth

8.27" (210 mm)

Package weight

4.61 lbs (2.09 kg)

Master (outer) case width

11.5" (292 mm)

Master (outer) case length

20.4" (517 mm)

Master (outer) case height

7.64" (194 mm)

Master (outer) case weight

24.3 lbs (11 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.94" (100 mm)

Package depth

11.1" (283 mm)

Package height

6.81" (173 mm)

Hot keys

Yes

Built-in display

No

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Cables included

KVM, USB

Housing material

Metal

Power consumption (typical)

1.02 W

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Video port type

VGA

On Screen Display (OSD)

Yes

Number of microphone inputs

6

Firmware upgradeable

Yes

Master (outer) case net weight

21.5 lbs (9.75 kg)

Number of computers controlled

4

Audio connections

Yes

Video bandwidth

60 Hz

USB 2.0 Type-A hub ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)

Console USB ports quantity

2

DDC2B support

Yes

Scan interval

1,255 s

Push button

Yes

Specific References

EAN13

4710423775053

MPN

CS1734B-AT-G
