Description

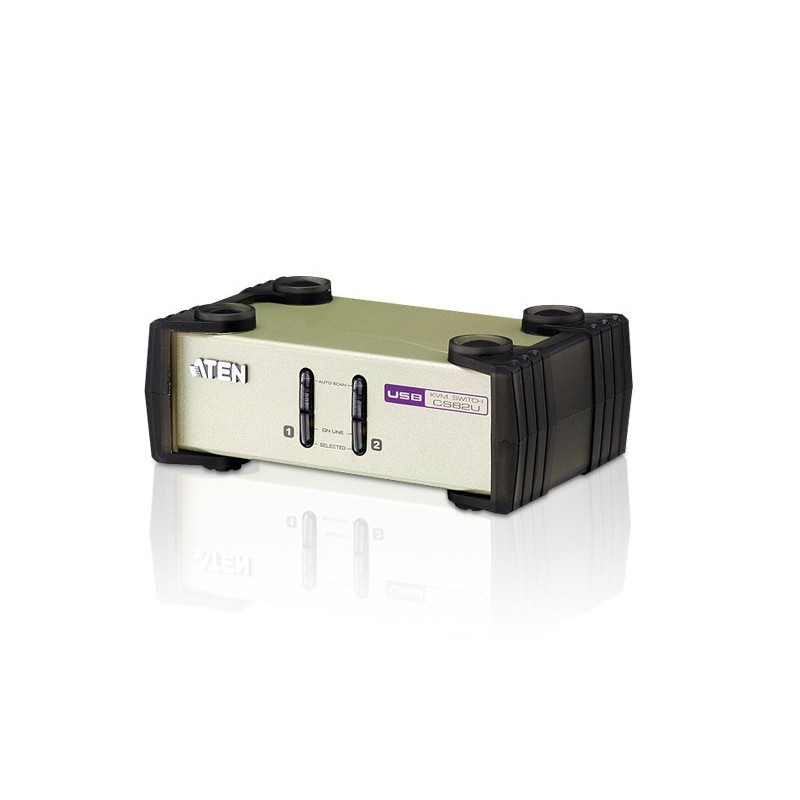

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution. Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms. • One PS/2-USB VGA console controls two VGA interface computers
• Dual Interface - supports computers with PS/2 or USB keyboards and mice
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Multiplatform support - Windows, Linux, Mac, and Sun
• Superior video quality - 2048 x 1536; DDC2B
• Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping - supports English, Japanese, and French keyboards
• Gaming keyboard support
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
* 2. Mac/Sun keyboard work only with their own computers
ATEN CS82U-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product color: Light grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 3.46" (88 mm), Depth: 5.51" (140 mm), Height: 2.19" (55.5 mm)
• Dual Interface - supports computers with PS/2 or USB keyboards and mice
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Multiplatform support - Windows, Linux, Mac, and Sun
• Superior video quality - 2048 x 1536; DDC2B
• Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping - supports English, Japanese, and French keyboards
• Gaming keyboard support
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
* 2. Mac/Sun keyboard work only with their own computers
ATEN CS82U-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product color: Light grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 3.46" (88 mm), Depth: 5.51" (140 mm), Height: 2.19" (55.5 mm)
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity | 2 |
| Console USB ports quantity | 2 |
| DC-in jack | Yes |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| DDC2B support | Yes |
| Rack mounting | No |
| Product color | Light grey |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 3.46" (88 mm) |
| Depth | 5.51" (140 mm) |
| Height | 2.19" (55.5 mm) |
| Weight | 30.7 oz (869 g) |
| Package width | 2.32" (59 mm) |
| Package depth | 9.41" (239 mm) |
| Package height | 6.89" (175 mm) |
| Package weight | 34.6 oz (981 g) |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 19.2 lbs (8.69 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 12.9" (328 mm) |
| Master (outer) case length | 19.6" (497 mm) |
| Master (outer) case height | 7.72" (196 mm) |
| Master (outer) case weight | 22.9 lbs (10.4 kg) |
| Quantity per master (outer) case | 10 pc(s) |
Product Details
1 Item
New
Data sheet
- Product color
- Light grey
- VGA (D-Sub) ports quantity
- 2
- Weight
- 30.7 oz (869 g)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5 V
- HD type
- QXGA
- Maximum resolution
- 2048 x 1536 pixels
- Width
- 3.46" (88 mm)
- Height
- 2.19" (55.5 mm)
- Depth
- 5.51" (140 mm)
- Package weight
- 34.6 oz (981 g)
- Master (outer) case width
- 12.9" (328 mm)
- Master (outer) case length
- 19.6" (497 mm)
- Master (outer) case height
- 7.72" (196 mm)
- Master (outer) case weight
- 22.9 lbs (10.4 kg)
- Quantity per master (outer) case
- 10 pc(s)
- Package width
- 2.32" (59 mm)
- Package depth
- 9.41" (239 mm)
- Package height
- 6.89" (175 mm)
- Power source
- DC
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Manual
- Yes
- Housing material
- Metal
- Power consumption (typical)
- 0.72 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
- Quick installation guide
- Yes
- Master (outer) case net weight
- 19.2 lbs (8.69 kg)
- Rack mounting
- No
- Number of computers controlled
- 2
- Video bandwidth
- 60 Hz
- Console ports
- USB A, VGA (D-Sub)
- Console USB ports quantity
- 2
- DDC2B support
- Yes
- Scan interval
- 3,5,10,20 s
- Push button
- Yes
Specific References
- UPC
- 672792800139
- EAN13
- 4710423777002
- MPN
- CS82U-AT
